TP-Link VIGI C540-4G(4mm), 4MP, PTZ, IR 30m, Micro SD card

Technologie:IP kamery; Provedení:PTZ (Speed dome); Paměťová karta; Použití:Venkovní; Typ objektivu:Fixní; Rozlišení (MPx):4; Ohnisková vzdálenost (mm):4; Počet snímků (fps):30; I/O:Vestavěný mikrofon, Audio; Napájení:12 V DC; Spotřeba (W):10-20; IR/LED přísvit (m):30; IR/LED přísvit (m):30; Stupeň krytí IP:IP66; Kódování:H.264, H.264+, H.265, H.265+

Vaše cena vč. DPH

4 077 Kč s DPH

Dostupnost: 1 skladem

Kategorie: , , Značka: TP-link EAN: 4895252504910 Záruka: 36 Měsíc(ů)
Array ( [pa_brand] => Array ( [name] => pa_brand [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_status] => Array ( [name] => pa_status [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 0 ) [pa_technologie] => Array ( [name] => pa_technologie [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_provedeni] => Array ( [name] => pa_provedeni [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_pametova-karta] => Array ( [name] => pa_pametova-karta [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_pouziti] => Array ( [name] => pa_pouziti [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_typ-objektivu] => Array ( [name] => pa_typ-objektivu [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_rozliseni-mpx] => Array ( [name] => pa_rozliseni-mpx [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_ohniskova-vzdalenost-mm] => Array ( [name] => pa_ohniskova-vzdalenost-mm [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_pocet-snimku-fps] => Array ( [name] => pa_pocet-snimku-fps [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_i-o] => Array ( [name] => pa_i-o [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_napajeni] => Array ( [name] => pa_napajeni [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_spotreba-w] => Array ( [name] => pa_spotreba-w [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_ir-led-prisvit-m] => Array ( [name] => pa_ir-led-prisvit-m [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_stupen-kryti-ip] => Array ( [name] => pa_stupen-kryti-ip [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_kodovani] => Array ( [name] => pa_kodovani [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_funkce-pro-vylepseni-obrazu] => Array ( [name] => pa_funkce-pro-vylepseni-obrazu [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) )
Array ( [pa_brand] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 11 [name] => pa_brand [options] => Array ( [0] => 6200 ) [position] => 0 [visible] => [variation] => ) ) [pa_status] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 0 [name] => pa_status [options] => Array ( ) [position] => 0 [visible] => [variation] => ) ) [pa_technologie] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 21 [name] => pa_technologie [options] => Array ( [0] => 13121 ) [position] => 0 [visible] => [variation] => ) ) [pa_provedeni] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 20 [name] => pa_provedeni [options] => Array ( [0] => 15664 ) [position] => 0 [visible] => [variation] => ) ) [pa_pametova-karta] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 851 [name] => pa_pametova-karta [options] => Array ( [0] => 8567 ) [position] => 0 [visible] => [variation] => ) ) [pa_pouziti] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 68 [name] => pa_pouziti [options] => Array ( [0] => 8315 ) [position] => 0 [visible] => [variation] => ) ) [pa_typ-objektivu] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 822 [name] => pa_typ-objektivu [options] => Array ( [0] => 8321 ) [position] => 0 [visible] => [variation] => ) ) [pa_rozliseni-mpx] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 765 [name] => pa_rozliseni-mpx [options] => Array ( [0] => 8004 ) [position] => 0 [visible] => [variation] => ) ) [pa_ohniskova-vzdalenost-mm] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 766 [name] => pa_ohniskova-vzdalenost-mm [options] => Array ( [0] => 8402 ) [position] => 0 [visible] => [variation] => ) ) [pa_pocet-snimku-fps] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 823 [name] => pa_pocet-snimku-fps [options] => Array ( [0] => 8322 ) [position] => 0 [visible] => [variation] => ) ) [pa_i-o] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 852 [name] => pa_i-o [options] => Array ( [0] => 9687 ) [position] => 0 [visible] => [variation] => ) ) [pa_napajeni] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 504 [name] => pa_napajeni [options] => Array ( [0] => 13376 ) [position] => 0 [visible] => [variation] => ) ) [pa_spotreba-w] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 854 [name] => pa_spotreba-w [options] => Array ( [0] => 9104 ) [position] => 0 [visible] => [variation] => ) ) [pa_ir-led-prisvit-m] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 767 [name] => pa_ir-led-prisvit-m [options] => Array ( [0] => 8006 ) [position] => 0 [visible] => [variation] => ) ) [pa_stupen-kryti-ip] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 793 [name] => pa_stupen-kryti-ip [options] => Array ( [0] => 8318 ) [position] => 0 [visible] => [variation] => ) ) [pa_kodovani] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 824 [name] => pa_kodovani [options] => Array ( [0] => 14328 ) [position] => 0 [visible] => [variation] => ) ) [pa_funkce-pro-vylepseni-obrazu] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 1011 [name] => pa_funkce-pro-vylepseni-obrazu [options] => Array ( [0] => 17527 ) [position] => 0 [visible] => [variation] => ) ) )
Rychlé doručení - vše skladem
Při objednání ve všední den do 16 hodin doručujeme druhý den.Více info
Doručení DPD, PPL na vámi zadanou adresu. V den dodání budete informování o doručení formou emailu a SMS zprávou ( je možné dodatečně změnit termín i místo dodání).

Popis

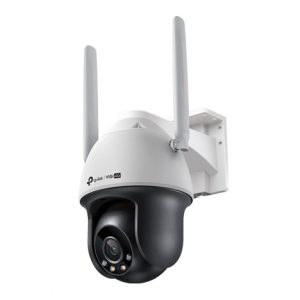

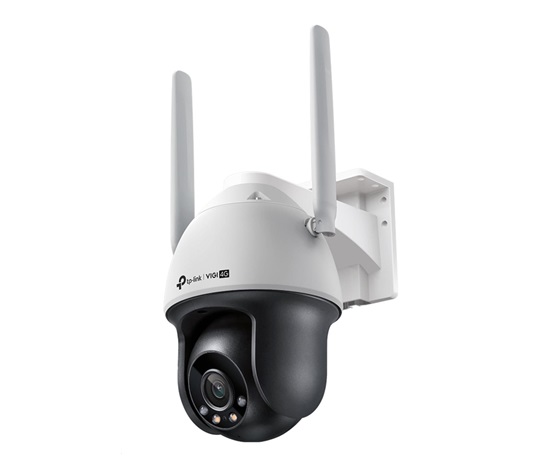

VIGI C540-4G

VIGI 4MPx Venkovní Full-Color Síťová kamera 4G s možností otáčení a naklápění

  • 4MPx Super-Vysoké Rozlišení: Kamera má 4MPx – více než dost pixelů pro zachycení i těch nejmenších detailů.
  • 24h Full-Color: Zažijte jasné, živé 24hodinové monitorování, i v naprosté tmě.
  • 4G Mobilní Síť: Užijte si snadnou instalaci a jednoduché monitorování na místech, kde není dostupný internet.
  • 360° Monitorování: Pokryje každý roh a eliminuje slepé úhly.
  • Rozlišování Lidí a Vozidel: Rozlišuje lidi a vozidla od ostatních objektů, takže dostáváte přesnější notifikace o událostech.
  • Chytrá Detekce: Aktivně detekuje neobvyklé události jako je narušení oblasti a překročení linie, a okamžitě vám zasílá notifikace.
  • Automatické Sledování: Automaticky sleduje osoby nebo vozidla, která vás zajímají, a poskytuje plynulé a delší videozáznamy.
  • Aktivní Obrana: Okamžitě varuje potenciální narušitele zvukem a světlem při neobvyklých událostech.
  • Obousměrné Audio: Díky podpoře hlasového interkomu můžete vést obousměrné konverzace a sledovat svůj přenos odkudkoliv.
  • H.265+: Komprimuje velikost videa, aniž by byla obětována jeho kvalita, čímž snižuje zatížení sítě a šetří místo na disku.
  • Vodotěsnost IP66: Spolehlivý stupeň ochrany IP66 pro stabilní venkovní výkon.
  • Vzdálená Správa: Mějte plnou kontrolu nad svou bezpečností kdykoliv a kdekoliv pomocí aplikace VIGI nebo PC klienta.
  • Vestavěné Úložiště: Podpora vestavěného úložiště až do 512 GB (slot na SD kartu)
CAMERA
Image Sensor 1/3.06” Progressive Scan CMOS
Shutter Speed 1/3 to 1/10000 s
Slow Shutter Yes
Minimum Illumination 0.005 Lux; 0 Lux with IR/White Light
Day/Night Mechanism IR Cut Filter
Day/Night Switch Unified/ Scheduled/ Auto
LENS
Type Fixed Focal Lens
Focal Length 4 mm
Aperture F1.6
FOV Horizontal FOV: 80°, Vertical FOV: 43°, Diagonal FOV: 94°
Lens Mount M12*0.5
DORI Distance Detect: 80 m (262 ft)
Observe: 33 m (109 ft)
Recognize: 16 m (52 ft)
Identify: 8 m (26 ft)
PTZ
Pan/tilt Range Pan: 0° to 348°, Tilt: 0° to 120°
Pan/tilt Speed • Pan Speed:
Configurable from 8° to 44°/s; Preset Speed: 44°/s

• Tilt Speed:
Configurable from 8° to 44°/s, Preset Speed 44°/s
Manual Control Speed Configurable from 8° to 35°/s
Presets 300
Patrol Scan 8 patrols, up to 8 presets for each patrol
Power-off Memory Yes;
Auto restore to previous PT and lens status after power failure
Park Action Yes;
Preset; Patrol Scan
3D Positioning Yes
ANGLE ADJUSTMENT (MANUAL)
Range • Pan: 0° to 348°
• Tilt: 0° to 120°
ILLUMINATOR
IR LED • Quantity: 2
• Range: 30m
• Wavelength: 850nm
White LED • Quantity: 2
• Range: 30m
Illuminator On/Off Control Auto/Scheduled/Always on/Always off
VIDEO
Max. Resolution 2560 X 1440
Main Stream • Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

• Resolution:
2560×1440, 2304×1296, 2048×1280, 1920×1080, 1280×720

Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-Stream • Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

• Resolution:
640×480, 352×288, 320×240

Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate Control CBR, VBR
Video Compression • Main Stream: H.265+/H.265/H.264+/H.264
• Sub-Stream: H.265/H.264
H.264 Type Main Profile/High Profile
H.264+ Main Stream Supported
H.265 Type Main Profile
H.265+ Main Stream Supported
Video Bit Rate • Main Stream: 256 Kbps to 3 Mbps
• Sub-Stream: 64 Kbps to 512 Kbps
Image Settings • Mirror
• Brightness
• Contrast
• Saturation
• Sharpness
• Exposure, WDR,
• White Balance
• Prevent Overexposure to Infrared Light
• HLC Adjustable by Client Software
• Rotation (90°/270°)
Image Enhancement BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range DWDR
SNR ? 52 dB
Image Parameters Switch Yes
Privacy Mask Up to 4 Masks
ROI 1 Region
OSD Setting Yes
AUDIO
Audio Communication Two-Way Audio
Audio Input Yes
Audio Output Yes
Audio Compression Yes
Audio Sampling Rate 8KHz
Environment Noise Filtering Yes
Audio Bit Rate 64 Kbps(G.711 alaw)
NETWORK
Protocol TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, ARP
ONVIF Yes
API Open Network Video Interface (Profile S)
Simultaneous Live View 2 Main Streams & 2 Sub-Streams
Client VIGI App, VIGI Security Manager, Web UI
Web Browser • Google Chrome 57 and above
• Firefox 52 and above
• Safari 11 and above
• Microsoft Edge 91 and above
Cloud Yes
Security Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
4G
Standard LTE-TDD/LTE-FDD/WCDMA

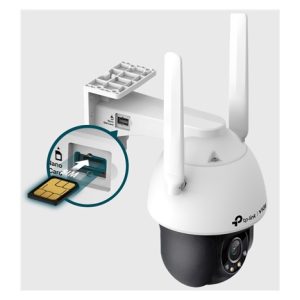

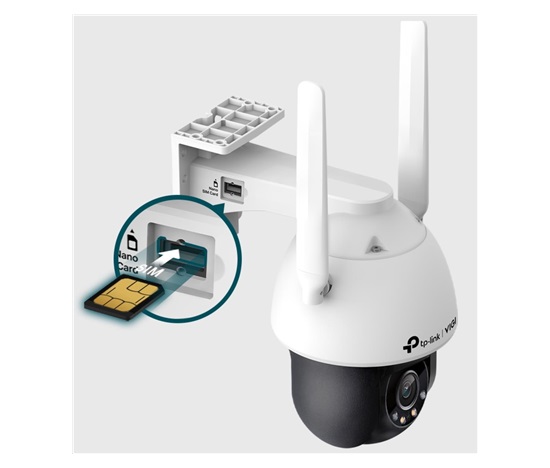

SIM Type Nano SIM
Category 4
Frequency • LTE-FDD: B 1/3/5/7/8/20/28
• LTE-TDD: B 38/40/41
• WCDMA: B 1/5/8
ALARM AND EVENT MANAGEMENT
Smart Event • Human & Vehicle Classification
• Intrusion Detection
• Line-Crossing Detection
• Region Entering Detection
• Region Exiting Detection
• Object Abandoned Detection
• Object Removal Detection
• People Detection
• Vehicle Detection
• Abnormal Sound Detection
Basic Event • Motion Detection
• Video Tampering Detection
• Exception (Illegal Login)
Alarm Linkage • Memory Card Video Recording
• Message Push
• Audible Warning
• White Light Flashing
Linkage Method N/A
Output Notification Message Push
INTERFACES
Network Interface 1 RJ45 10/100M Self-Adaptive Ethernet Port
Alarm N/A
Reset Button Yes
Power DC Power Port
On-board Storage Built-In Memory Card Slot, Support MicroSD Card, Up to 512 GB
Built-in Nano-SIM Card Slot Yes
Built-in Microphone Yes; Records Anything Going on within a 15-ft Radius of the Camera
Built-in Speaker Yes
Audio N/A
GENERAL
Operating Temperature -30–60 °C
Storage Temperature -40–60 °C
Operating Humidity 95% or Less (Non-Condensing)
Storage Humidity 95% or Less (Non-Condensing)
Package Contents • VIGI Network Camera
• Quick Start Guide
• Waterproof Cable Attachments
• Mounting Accessories
• Power Adapter
Material Plastic
Net Weight 0.69 Kg
Gross Weight 1.16 Kg
Power Supply 12V DC/1A, 5.5mm Coaxial Power Plug
Antenna • Quantity: 2

• Type:
690~960&1710~2690MHz Dipole Omni-Directional Antenna

• Gain:
Ant1:0.84dBi@690~960MHz, 2.85dBi@1710~2690MHz
Ant2:0.74dBi@690~960MHz, 3.06dBi@1710~2690MHz
Protection IP66
Product Dimensions (L x W x H) 120 × 182 × 201 mm (excluding antennas)
Certifications CE, RCM, BSMI, RoHS, NCC

Další informace

Hmotnost 1,202 kg
Rozměry 24,9 × 24,7 × 16,5 cm

Logistic data

Typ balení Délka (cm) Šířka (cm) Výška (cm) Hmotnost (kg) Počet kusů v balení
Kusové 24.9 24.7 16.5 1.202 1
Technické specifikace se mohou změnit bez předchozího upozornění. Obsah aktuálního balení se může lišit i v závislosti na datu prodeje. Obrázky mají pouze informativní charakter.
