TP-Link OMADA switch SX3832MPP (24x10GbE,8xSFP+,24xPoE++,770W,1xconsole,1xUSB-C)

Provedení:Rack mounted 19″; Funkce:QoS (Quality of service), VLAN (virtual local area network), PoE (Power over ethernet), DHCP snooping, L2, L2+, Web management/Smart switch; Technologie:10 Gigabit ethernet + 10 Gigabit optika; Počet portů LAN:32; Přenosová rychlost LAN (Mb/s):10000; Podporované standardy PoE:802.3af, 802.3at, 802.3bt; PoE budget (W):770

Vaše cena vč. DPH

58 096 Kč s DPH

Dostupnost: 1 skladem

Kategorie: , , Značka: TP-link EAN: 8885020622676
Array ( [pa_brand] => Array ( [name] => pa_brand [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_status] => Array ( [name] => pa_status [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 0 ) [pa_provedeni] => Array ( [name] => pa_provedeni [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_funkce] => Array ( [name] => pa_funkce [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_technologie] => Array ( [name] => pa_technologie [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_pocet-portu-lan] => Array ( [name] => pa_pocet-portu-lan [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_prenosova-rychlost-lan-mb-s] => Array ( [name] => pa_prenosova-rychlost-lan-mb-s [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_podporovane-standardy-poe] => Array ( [name] => pa_podporovane-standardy-poe [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_poe-budget-w] => Array ( [name] => pa_poe-budget-w [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_pocet-poe-out-portu] => Array ( [name] => pa_pocet-poe-out-portu [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_pocet-sfp-portu] => Array ( [name] => pa_pocet-sfp-portu [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_ventilator] => Array ( [name] => pa_ventilator [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_pocet-poe-portu] => Array ( [name] => pa_pocet-poe-portu [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_maximalni-pocet-portu] => Array ( [name] => pa_maximalni-pocet-portu [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_pocet-usb-2-0] => Array ( [name] => pa_pocet-usb-2-0 [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_vlastnosti-switche] => Array ( [name] => pa_vlastnosti-switche [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_management] => Array ( [name] => pa_management [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) )
Array ( [pa_brand] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 11 [name] => pa_brand [options] => Array ( [0] => 6200 ) [position] => 0 [visible] => [variation] => ) ) [pa_status] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 0 [name] => pa_status [options] => Array ( ) [position] => 0 [visible] => [variation] => ) ) [pa_provedeni] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 20 [name] => pa_provedeni [options] => Array ( [0] => 12524 ) [position] => 0 [visible] => [variation] => ) ) [pa_funkce] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 109 [name] => pa_funkce [options] => Array ( [0] => 12737 ) [position] => 0 [visible] => [variation] => ) ) [pa_technologie] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 21 [name] => pa_technologie [options] => Array ( [0] => 20136 ) [position] => 0 [visible] => [variation] => ) ) [pa_pocet-portu-lan] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 22 [name] => pa_pocet-portu-lan [options] => Array ( [0] => 34199 ) [position] => 0 [visible] => [variation] => ) ) [pa_prenosova-rychlost-lan-mb-s] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 23 [name] => pa_prenosova-rychlost-lan-mb-s [options] => Array ( [0] => 9116 ) [position] => 0 [visible] => [variation] => ) ) [pa_podporovane-standardy-poe] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 224 [name] => pa_podporovane-standardy-poe [options] => Array ( [0] => 13378 ) [position] => 0 [visible] => [variation] => ) ) [pa_poe-budget-w] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 333 [name] => pa_poe-budget-w [options] => Array ( [0] => 40357 ) [position] => 0 [visible] => [variation] => ) ) [pa_pocet-poe-out-portu] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 226 [name] => pa_pocet-poe-out-portu [options] => Array ( [0] => 7365 ) [position] => 0 [visible] => [variation] => ) ) [pa_pocet-sfp-portu] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 327 [name] => pa_pocet-sfp-portu [options] => Array ( [0] => 11050 ) [position] => 0 [visible] => [variation] => ) ) [pa_ventilator] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 24 [name] => pa_ventilator [options] => Array ( [0] => 6982 ) [position] => 0 [visible] => [variation] => ) ) [pa_pocet-poe-portu] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 1069 [name] => pa_pocet-poe-portu [options] => Array ( [0] => 18002 ) [position] => 0 [visible] => [variation] => ) ) [pa_maximalni-pocet-portu] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 27 [name] => pa_maximalni-pocet-portu [options] => Array ( [0] => 32624 ) [position] => 0 [visible] => [variation] => ) ) [pa_pocet-usb-2-0] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 866 [name] => pa_pocet-usb-2-0 [options] => Array ( [0] => 9152 ) [position] => 0 [visible] => [variation] => ) ) [pa_vlastnosti-switche] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 227 [name] => pa_vlastnosti-switche [options] => Array ( [0] => 19806 ) [position] => 0 [visible] => [variation] => ) ) [pa_management] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 26 [name] => pa_management [options] => Array ( [0] => 12673 ) [position] => 0 [visible] => [variation] => ) ) )
Rychlé doručení - vše skladem
Při objednání ve všední den do 16 hodin doručujeme druhý den.Více info
Doručení DPD, PPL na vámi zadanou adresu. V den dodání budete informování o doručení formou emailu a SMS zprávou ( je možné dodatečně změnit termín i místo dodání).

Popis

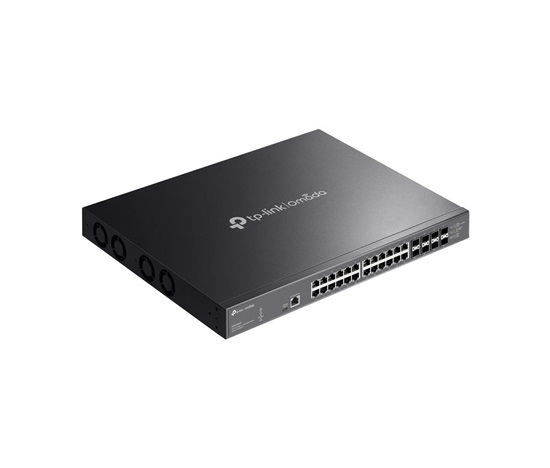

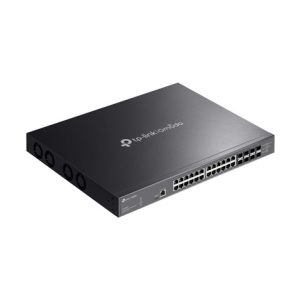

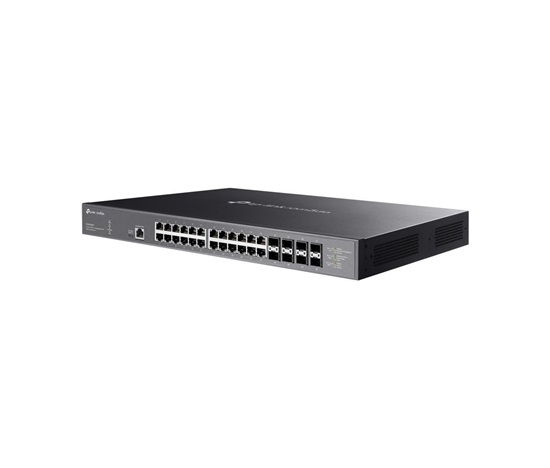

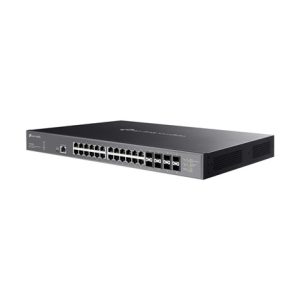

TP-Link OMADA switch SX3832MPP

Omada 32portový managed switch 10GE L2+ s 24 porty PoE++

  • 24× 1/2.5/5/10 Gb/s RJ45 PoE++ portů
  • 8× 1/10 Gb/s SFP+ slotů
  • Celkový PoE rozpočet 770 W, až 90 W PoE na port
  • Centralizovaná cloudová správa přes web nebo aplikaci Omada†
  • Samostatná správa přes web, CLI, SNMP a RMON
  • Statické směrování pomáhá směrovat interní provoz pro vyšší efektivitu
  • VLAN, ACL, QoS, IGMP Snooping, OAM a DDM
  • ERPS podporuje rychlou ochranu a obnovu v kruhové topologii
  • Odolné kovové pouzdro a design pro montáž do racku

Stránky produktu: https://www.omadanetworks.com/cz/business-networking/omada-switch-access-max/sx3832mpp

Technické specifikace

HARDWARE FEATURES
Interface • 24× 100Mbps/1Gbps/2.5Gbps/5Gbps/10Gbps PoE++ RJ45 Ports (Auto-Negotiation/Auto MDI/MDIX)

• 8× 1/10G SFP+ Slots‡

• 1× RJ45 Console Port

• 1× USB Type C Console Port
Fan Quantity 4
Physical Security Lock ?
Power Supply 100-240 V AC~50/60 Hz
PoE Ports (RJ45) • Standard: 802.3bt/at/af compliant

• PoE++ Ports (802.3bt/at/af PoE): 24 Ports, up to 90 W per port**

• Power Budget: 770 W*
Dimensions ( W x D x H ) 17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm)
Mounting Rack Mountable
Max. Power Consumption 1,010.2 W (110V/60Hz with 770 W PD connected)

953.7 W (220V/50Hz with 770 W PD connected)
Max. Heat Dissipation 3,444.7 BTU/hr (110V/60Hz with 770 W PD connected)

3,252.2 BTU/hr (220V/50Hz with 770 W PD connected)

PERFORMANCE
Switching Capacity 640 Gbps
Packet Forwarding Rate 240 Mpps
MAC Address Table 32 K
Packet Buffer Memory 24 Mbit
Jumbo Frame 9 KB

SOFTWARE FEATURES
Quality of Service • 8 priority queues

• 802.1p CoS/DSCP priority

• Queue scheduling: SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR

• Bandwidth Control: Port/Flow-based Rating Limiting

• Smoother Performance

• Action for Flows: QoS remark (802.1P Remark, DSCP Remark)
L2 and L2+ Features • 128 IP Interfaces: Support IPv4/IPv6 Interface

• Static Routing: 48 IPv4/IPv6 Static Routes

• Static ARP: 128 static entries

• 510 ARP Entries

• Proxy ARP

• Gratuitous ARP

• DHCP Server

• DHCP Relay: DHCP Interface Relay, DHCP VLAN Relay

• DHCP L2 Relay

• Link Aggregation

• Spanning Tree Protocol

• Loopback Detection

• 802.3x Flow Control

• Mirroring
L2 Multicast • Supports 4,000 (IPv4, IPv6) IGMP groups

• IGMP Snooping

• IGMP Authentication

• Multicast VLAN Registration (MVR)

• MLD Snooping

• Multicast Filtering: 256 profiles and 16 entries per profile
Advanced Features • Automatic Device Discovery†

• Batch Configuration†

• Batch Firmware Upgrading†

• Intelligent Network Monitoring†

• Abnormal Event Warnings†

• Unified Configuration†

• Reboot Schedule†

ISP Features:

• L2PT (Layer 2 Protocol Tunneling)

• Device Link Detect Protocol (DLDP)

• PPPoE ID Insertion

• ERPS

• 802.3ah Ethernet Link OAM

• DDM
VLAN • VLAN Group: Max 4K VLAN Groups

• 802.1q Tagged VLAN

• MAC VLAN: 256 Entries

• Protocol VLAN: Protocol Template 16, Protocol VLAN 12

• Private VLAN

• GVRP

• VLAN VPN: VLAN Mapping, VLAN Replace

• Voice VLAN
Access Control List • Time-based ACL

• MAC ACL: Source MAC, Destination MAC, VLAN ID, User Priority, Ether Type

• IP ACL: Source IP, Destination IP, Fragment, IP Protocol, TCP Flag, TCP/UDP Port, DSCP/IP TOS

• Combined ACL

• Packet Content ACL

• IPv6 ACL

• Policy: Mirroring, Redirect, Rate Limit, QoS Remark

• ACL applies to Port/VLAN
Security • IP-MAC-Port Binding

– 512 Entries

– DHCP Snooping

– ARP Inspection

– IPv4 Source Guard: 96 Entries

• IPv6-MAC-Port Binding

– 512 Entries

– DHCPv6 Snooping

– ND Detection

– ND Snooping

– IPv6 Source Guard: 95 Entries

• DoS Defend

• DHCP Filter

• Static/Dynamic Port Security: Up to 64 MAC addresses per port

• Broadcast/Multicast/Unicast Storm Control: kbps/ratio control mode

• 802.1X

– Port-based authentication

– Mac-base authentication

– VLAN Assignment

– MAB

– Guest VLAN

– Radius authentication and accountability support

• AAA (including TACACS+)

• Port Isolation

• Secure web management through HTTPS with SSLv3/TLS 1.2

• Secure Command Line Interface (CLI) management with SSHv1/SSHv2

• IP/Port/MAC-based access control
IPv6 • IPv6 Dual IPv4/IPv6

• Multicast Listener Discovery (MLD) Snooping

• IPv6 ACL

• IPv6 Interface

• Static IPv6 Routing

• IPv6 neighbor discovery (ND)

• Path maximum transmission unit (MTU) discovery

• Internet Control Message Protocol (ICMP) version 6

• TCPv6/UDPv6

• IPv6 applications: DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP
MIBs • MIB II (RFC1213)

• Interface MIB (RFC2233)

• Ethernet Interface MIB (RFC1643)

• Bridge MIB (RFC1493)

• P/Q-Bridge MIB (RFC2674)

• RMON MIB (RFC2819)

• RMON2 MIB (RFC2021)

• Radius Accounting Client MIB (RFC2620)

• Radius Authentication Client MIB (RFC2618)

• Remote Ping, Traceroute MIB (RFC2925)

• Support TP-Link private MIB

Management Features
Omada App Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management • Omada Cloud-Based Controller

• Omada Hardware Controller

• Omada Software Controller
Cloud Access Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller.
Management Features • Web-based GUI

• Command Line Interface (CLI) through the console port, telnet

• SNMP v1/v2c/v3: Trap/Inform, RMON (1,2,3,9 groups)

• SDM Template

• DHCP/BOOTP Client

• 802.1ab LLDP/LLDP-MED

• DHCP AutoInstall

• Dual Image, Dual Configuration

• CPU Monitoring

• Cable Diagnostics

• IEEE 802.3az Energy Efficient Ethernet (EEE)

• Password Recovery

• SNTP

• System Log

OTHERS
Certification CE, FCC, RoHS
Package Content • SX3832MPP Switch

• Power Cord

• Console Cable

• Quick Installation Guide

• Rackmount Kit

• Rubber Feet
System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC OS, NetWare, UNIX or Linux.
Environment • Operating Temperature: -5–45 ? (23–113 ?);

• Storage Temperature: -40–70 ? (-40–158 ?)

• Operating Humidity: 10–90% RH non-condensing

• Storage Humidity: 5–90% RH non-condensing

Další informace

Hmotnost 7,05 kg
Rozměry 53 × 34 × 10 cm

Logistic data

Typ balení Délka (cm) Šířka (cm) Výška (cm) Hmotnost (kg) Počet kusů v balení
Kusové 53 34 10 7.05 1
Technické specifikace se mohou změnit bez předchozího upozornění. Obsah aktuálního balení se může lišit i v závislosti na datu prodeje. Obrázky mají pouze informativní charakter.
