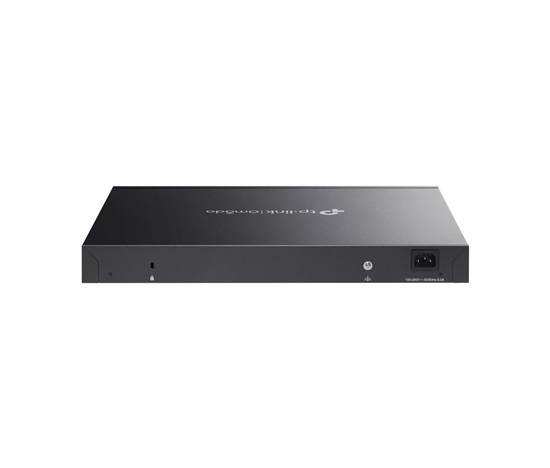

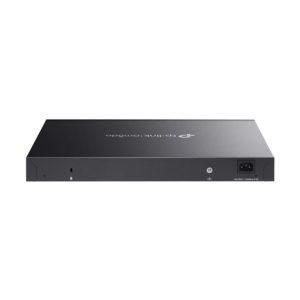

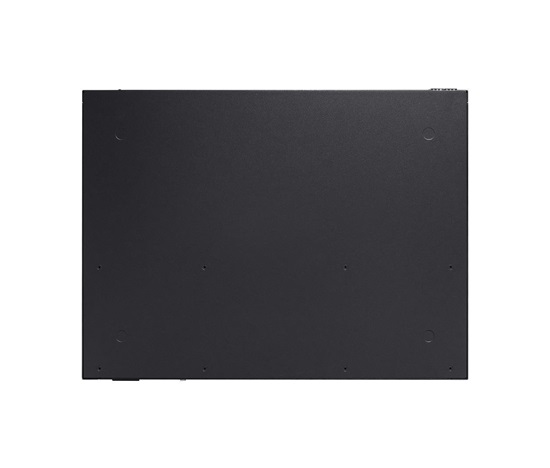

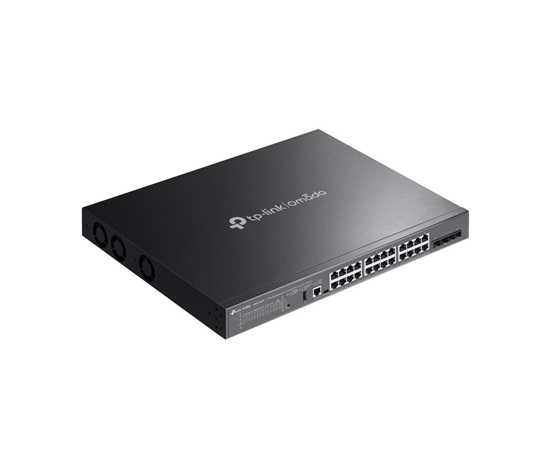

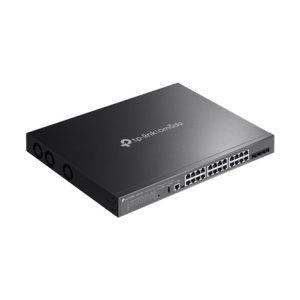

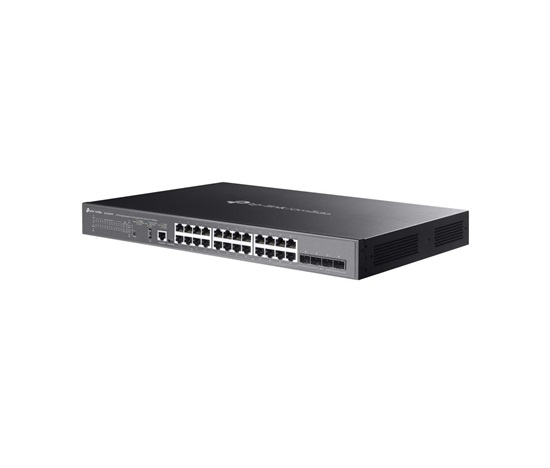

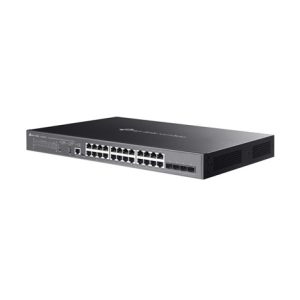

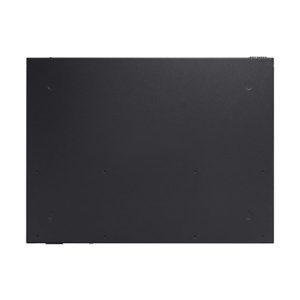

TP-Link OMADA switch SG5428XMPP (24xGbE,4xSFP+,8xPoE++,16xPoE+,500W,1xUSB2.0,2xConsole)

Provedení:Rack mounted 19″; Funkce:QoS (Quality of service), VLAN (virtual local area network), PoE (Power over ethernet), DHCP snooping, L2, L2+, L3, Web management/Smart switch; Technologie:Gigabit ethernet + 10 Gigabit optika; Počet portů LAN:28; Přenosová rychlost LAN (Mb/s):1000; Podporované standardy PoE:802.3af, 802.3at, 802.3bt; PoE budget (W):500

Vaše cena vč. DPH

20 822 Kč s DPH

Dostupnost: 1 skladem

Kategorie: , , Značka: TP-link EAN: 8885020626445
Array ( [pa_brand] => Array ( [name] => pa_brand [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_status] => Array ( [name] => pa_status [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 0 ) [pa_provedeni] => Array ( [name] => pa_provedeni [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_funkce] => Array ( [name] => pa_funkce [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_technologie] => Array ( [name] => pa_technologie [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_pocet-portu-lan] => Array ( [name] => pa_pocet-portu-lan [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_prenosova-rychlost-lan-mb-s] => Array ( [name] => pa_prenosova-rychlost-lan-mb-s [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_podporovane-standardy-poe] => Array ( [name] => pa_podporovane-standardy-poe [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_poe-budget-w] => Array ( [name] => pa_poe-budget-w [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_pocet-sfp-portu] => Array ( [name] => pa_pocet-sfp-portu [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_ventilator] => Array ( [name] => pa_ventilator [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_pocet-poe-portu] => Array ( [name] => pa_pocet-poe-portu [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_maximalni-pocet-portu] => Array ( [name] => pa_maximalni-pocet-portu [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_pocet-usb-2-0] => Array ( [name] => pa_pocet-usb-2-0 [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_vlastnosti-switche] => Array ( [name] => pa_vlastnosti-switche [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_management] => Array ( [name] => pa_management [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) )
Array ( [pa_brand] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 11 [name] => pa_brand [options] => Array ( [0] => 6200 ) [position] => 0 [visible] => [variation] => ) ) [pa_status] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 0 [name] => pa_status [options] => Array ( ) [position] => 0 [visible] => [variation] => ) ) [pa_provedeni] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 20 [name] => pa_provedeni [options] => Array ( [0] => 12524 ) [position] => 0 [visible] => [variation] => ) ) [pa_funkce] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 109 [name] => pa_funkce [options] => Array ( [0] => 12737 ) [position] => 0 [visible] => [variation] => ) ) [pa_technologie] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 21 [name] => pa_technologie [options] => Array ( [0] => 19888 ) [position] => 0 [visible] => [variation] => ) ) [pa_pocet-portu-lan] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 22 [name] => pa_pocet-portu-lan [options] => Array ( [0] => 41394 ) [position] => 0 [visible] => [variation] => ) ) [pa_prenosova-rychlost-lan-mb-s] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 23 [name] => pa_prenosova-rychlost-lan-mb-s [options] => Array ( [0] => 6555 ) [position] => 0 [visible] => [variation] => ) ) [pa_podporovane-standardy-poe] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 224 [name] => pa_podporovane-standardy-poe [options] => Array ( [0] => 13378 ) [position] => 0 [visible] => [variation] => ) ) [pa_poe-budget-w] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 333 [name] => pa_poe-budget-w [options] => Array ( [0] => 19288 ) [position] => 0 [visible] => [variation] => ) ) [pa_pocet-sfp-portu] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 327 [name] => pa_pocet-sfp-portu [options] => Array ( [0] => 7235 ) [position] => 0 [visible] => [variation] => ) ) [pa_ventilator] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 24 [name] => pa_ventilator [options] => Array ( [0] => 6982 ) [position] => 0 [visible] => [variation] => ) ) [pa_pocet-poe-portu] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 1069 [name] => pa_pocet-poe-portu [options] => Array ( [0] => 17994 ) [position] => 0 [visible] => [variation] => ) ) [pa_maximalni-pocet-portu] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 27 [name] => pa_maximalni-pocet-portu [options] => Array ( [0] => 7924 ) [position] => 0 [visible] => [variation] => ) ) [pa_pocet-usb-2-0] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 866 [name] => pa_pocet-usb-2-0 [options] => Array ( [0] => 9152 ) [position] => 0 [visible] => [variation] => ) ) [pa_vlastnosti-switche] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 227 [name] => pa_vlastnosti-switche [options] => Array ( [0] => 6983 ) [position] => 0 [visible] => [variation] => ) ) [pa_management] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 26 [name] => pa_management [options] => Array ( [0] => 12673 ) [position] => 0 [visible] => [variation] => ) ) )
Rychlé doručení - vše skladem
Při objednání ve všední den do 16 hodin doručujeme druhý den.Více info
Doručení DPD, PPL na vámi zadanou adresu. V den dodání budete informování o doručení formou emailu a SMS zprávou ( je možné dodatečně změnit termín i místo dodání).

Popis

TP-Link OMADA switch SG5428XMPP

Omada 24portový gigabitový stohovatelný switch Lite L3 se správou PoE++ a 4× 10G sloty

  • 8× Gigabitové PoE++ porty 802.3af/at/bt (Max 90 W na port)
  • 16× Gigabitové PoE+ porty 802.3af/at (Max 30 W na port)
  • 4× 10Gb/s SFP+ sloty
  • Až 500 W celkový PoE rozpočet
  • Funkce Fast PoE a Perpetual PoE
  • Fyzické stohování až 4 jednotek pro vestavěnou redundanci a výkon
  • L3 funkce: RIP, OSPF, Statické směrování a DHCP server/relay
  • Bezpečnostní strategie: ACL, Port Security, DoS ochrana, 802.1X
  • ERPS podporuje rychlou ochranu a obnovení v kruhové topologii
  • Centralizovaná správa přes cloud pomocí Omada SDN kontroléru
  • Samostatná správa přes web, CLI, SNMP a RMON

Stránky produktu: https://www.omadanetworks.com/cz/business-networking/omada-switch-campus/sg5428xmpp

Technické specifikace

HARDWARE FEATURES
Interface • 24× 10/100/1000 Mbps RJ45 Ports (8× PoE++, 16× PoE+)

• 4× 1/10 Gbps SFP+ Slots**

• 1× USB 2.0 Port

• 1× RJ45 Console Port

• 1× USB Type-C Console Port
Fan Quantity 3
Power Supply 100-240 V~ 50/60 Hz
PoE Ports (RJ45) • Standard: 802.3af/at/bt compliant

• PoE++ Ports: Ports 1~8 (up to 90W per Port)

• PoE+ Ports: Ports 9~24 (up to 30W per Port)

• Power Budget: 500W*

• Fast PoE

• Perpetual PoE
Dimensions ( W x D x H ) 17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm)
Mounting Rackmountable
Max. Power Consumption • 587.7 W (220V/50Hz) ( with 500 W PD connected @ 25 °C)

• 615.8 W (110V/60Hz) ( with 500 W PD connected @ 25 °C)
Max. Heat Dissipation • 2004.06 BTU/hr (220V/50Hz) ( with 500 W PD connected @ 25 °C)

• 2099.88 BTU/hr (110V/60Hz) ( with 550W PD connected @ 25 °C)

PERFORMANCE
Switching Capacity 128 Gbps per Unit
Stacking • Stacking Number: 4

• Stacking Port: 10G SFP+ Slot (uplink ports can be used as stacking ports)

• Stacking Bandwidth: Up to 40 Gbps (max 2 stacking ports)
Packet Forwarding Rate 95.23 Mpps
MAC Address Table 16 K
Packet Buffer Memory 12 Mbit
Jumbo Frame 9 KB

SOFTWARE FEATURES
Quality of Service • Class of Service

– 8 Queues of Priority

– Port Priority

– IEEE 802.1p Priority

– DSCP Priority

– Queue Min-Bandwidth

– Schedule Mode (SP, WRR, SP+WRR)

• Bandwidth Control

– Rate Limit

– Storm Control

• Voice VLAN

• User-Defined OUI

• Smoother Performance

• Action for Flows

– QoS remark (802.1P Remark, DSCP Remark)
L3 Features • IP Interfaces:

– IPv4: Max 128, IPv6: Max 128

• Static Routing

– IPv4 Max 512, IPv6: Max 128

• Host Route Table: Max 1,024 entries

• RIP: Version v1/v2, Max 1,796

• OSPF: Version v2/v3; v2: Max 1,796, v3: Max 450

• Static ARP: 512 static entries

• Dynamic ARP: 2,000 dynamic entries

• Proxy ARP

• DHCP Server:

– Max 64 IP Pools

– Max 1,000 Manual Binding Entries

• DHCP Relay:

– Relayed Interface

– Relayed VLAN
L2 and L2+ Features • Link Aggregation

• Spanning Tree Protocol

• Port-based and VLAN-based Loopback Detection

• 802.3x Flow Control

• ERPS

• Mirroring

• RSPAN

• MAC Address Table

• Multicast

– IGMP Snooping

– MLD Snooping

– L2 Multicast Table: Max 2,000

– Fast Leave

– Multicast VLAN Registration (MVR)

– Static Multicast Groups

– Multicast Filtering
Advanced Features • Automatic Device Discovery†

• Batch Configuration†

• Batch Firmware Upgrading†

• Intelligent Network Monitoring†

• Abnormal Event Warnings†

• Unified Configuration†

• Reboot Schedule†

ISP Features:

• 802.3ah Ethernet Link OAM

• L2PT (Layer 2 Protocol Tunneling)

• Device Link Detect Protocol (DLDP)

• DDM

• sFlow
VLAN • Max 4K VLAN Group (802.1q VLAN)

• 802.1Q Tagged VLAN

• MAC VLAN Entries: 60

• Multicast VLAN

• Management VLAN

• VLAN VPN (QinQ): Max 256 entries

• GVRP

• Protocol VLAN: Protocol Template 16, Protocol VLAN 12 entries

• Voice VLAN

• Private VLAN
Security • Port Isolation

• CPU-Defend

• ARP Inspection (Dynamic ARP Inspection)

• DoS Defend

• IP-MAC-Port Binding

-1,024 Entries

– DHCP Snooping

– ARP Inspection

– IPv4 Source Guard

• IPv6-MAC

-Port Binding

-1,024 Entries

– DHCPv6 Snooping

– ND Detection

– ND Snooping

– IPv6 Source Guard

• DHCP Filter

• Static/Dynamic Port Security

– Up to 64 MAC addresses per port

• Broadcast/Multicast/Unknown-unicast Storm Control

– kbps/ratio control mode

• 802.1X

– Port base authentication

– Mac base authentication

– VLAN Assignment

– MAB

– Guest VLAN

– RADIUS authentication and accountability support

• AAA (including TACACS+)

• Secure web management through HTTPS with SSLv3/TLS 1.2

• Secure Command Line Interface (CLI) management with SSHv2

• IP/Port/MAC-based access control

Management Features
Omada App Yes. Requiring the use of the Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management • Omada Cloud-Based Controller (Requires built-in version 5.15.22 or later)

• Omada Hardware Controller (Requires built-in version 5.15.20 or later)

• Omada Software Controller (Requires built-in version 5.15.20 or later)
Cloud Access Yes. Requiring the use of the Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning Yes. Requiring the use of the Omada Cloud-Based Controller.
Management Features • Web-based GUI

• Command Line Interface (CLI) through console port, telnet

• SNMPv1/v2c/v3

– Trap/Inform

– RMON (1, 2, 3, 9 groups)

• SDM Template

• DHCP/BOOTP Client

• 802.1ab LLDP/LLDP-MED

• DHCP Auto Install

• Dual Image, Dual Configuration

• CPU Monitoring

• Cable Diagnostics

• Password Recovery

• SNTP

• System Log

• IEEE 802.3az Energy Efficient Ethernet (EEE)

OTHERS
Package Content • SG5428XMPP Switch

• Power Cord

• Console Cable

• Rackmount Kits

• Rubber Feet

• Quick Installation Guide
System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC OS, NetWare, UNIX or Linux.
Environment • Operating Temperature: -5 °C to 40 °C (23 °F to 104 °F)

• Storage Temperature: -40 °C to 70 ? (-40 °F to 158 ?)

• Operating Humidity: 10–90% RH non-condensing

• Storage Humidity: 5–90% RH non-condensing

Další informace

Hmotnost 6,23 kg
Rozměry 47,5 × 53,5 × 11 cm

Logistic data

Typ balení Délka (cm) Šířka (cm) Výška (cm) Hmotnost (kg) Počet kusů v balení
Kusové 47.5 53.5 11 6.23 1
Technické specifikace se mohou změnit bez předchozího upozornění. Obsah aktuálního balení se může lišit i v závislosti na datu prodeje. Obrázky mají pouze informativní charakter.
