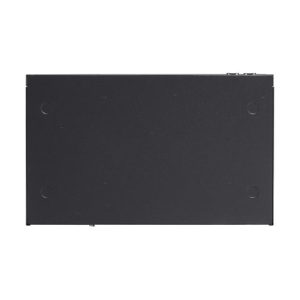

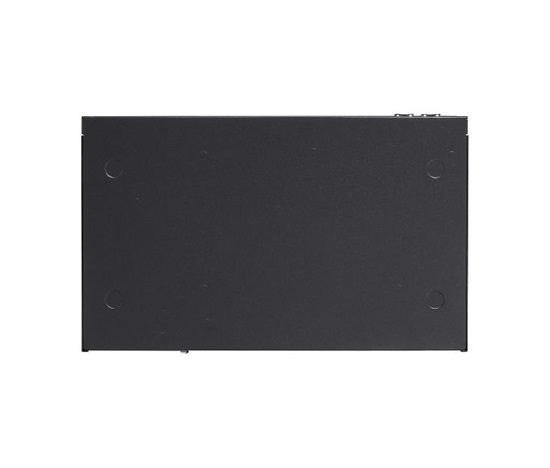

TP-Link OMADA switch SG3210 (8xGbE, 2xSFP, 2xConsole, fanless)

Provedení:Desktop, Rack mounted 19″; Funkce:QoS (Quality of service), VLAN (virtual local area network), DHCP snooping, L2, L2+, Web management/Smart switch; Technologie:Gigabit Ethernet 1000Mbps; Počet portů LAN:8; Počet SFP portů:2; Přenosová rychlost LAN (Mb/s):1000; Maximální počet portů:10; Management:Web, SNMP/RMON

Vaše cena vč. DPH

2 888 Kč s DPH

Dostupnost: 3 skladem

Kategorie: , , Značka: TP-link EAN: 6935364006396
Array ( [pa_brand] => Array ( [name] => pa_brand [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_status] => Array ( [name] => pa_status [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 0 ) [pa_provedeni] => Array ( [name] => pa_provedeni [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_funkce] => Array ( [name] => pa_funkce [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_technologie] => Array ( [name] => pa_technologie [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_pocet-portu-lan] => Array ( [name] => pa_pocet-portu-lan [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_pocet-sfp-portu] => Array ( [name] => pa_pocet-sfp-portu [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_ventilator] => Array ( [name] => pa_ventilator [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_maximalni-pocet-portu] => Array ( [name] => pa_maximalni-pocet-portu [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_prenosova-rychlost-lan-mb-s] => Array ( [name] => pa_prenosova-rychlost-lan-mb-s [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_management] => Array ( [name] => pa_management [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) )
Array ( [pa_brand] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 11 [name] => pa_brand [options] => Array ( [0] => 6200 ) [position] => 0 [visible] => [variation] => ) ) [pa_status] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 0 [name] => pa_status [options] => Array ( ) [position] => 0 [visible] => [variation] => ) ) [pa_provedeni] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 20 [name] => pa_provedeni [options] => Array ( [0] => 12524 ) [position] => 0 [visible] => [variation] => ) ) [pa_funkce] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 109 [name] => pa_funkce [options] => Array ( [0] => 12737 ) [position] => 0 [visible] => [variation] => ) ) [pa_technologie] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 21 [name] => pa_technologie [options] => Array ( [0] => 12513 ) [position] => 0 [visible] => [variation] => ) ) [pa_pocet-portu-lan] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 22 [name] => pa_pocet-portu-lan [options] => Array ( [0] => 6546 ) [position] => 0 [visible] => [variation] => ) ) [pa_pocet-sfp-portu] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 327 [name] => pa_pocet-sfp-portu [options] => Array ( [0] => 7231 ) [position] => 0 [visible] => [variation] => ) ) [pa_ventilator] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 24 [name] => pa_ventilator [options] => Array ( [0] => 6543 ) [position] => 0 [visible] => [variation] => ) ) [pa_maximalni-pocet-portu] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 27 [name] => pa_maximalni-pocet-portu [options] => Array ( [0] => 7232 ) [position] => 0 [visible] => [variation] => ) ) [pa_prenosova-rychlost-lan-mb-s] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 23 [name] => pa_prenosova-rychlost-lan-mb-s [options] => Array ( [0] => 6555 ) [position] => 0 [visible] => [variation] => ) ) [pa_management] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 26 [name] => pa_management [options] => Array ( [0] => 12673 ) [position] => 0 [visible] => [variation] => ) ) )
Rychlé doručení - vše skladem
Při objednání ve všední den do 16 hodin doručujeme druhý den.Více info
Doručení DPD, PPL na vámi zadanou adresu. V den dodání budete informování o doručení formou emailu a SMS zprávou ( je možné dodatečně změnit termín i místo dodání).

Popis

TP-Link OMADA switch SG3210

8portový gigabitový L2+ řízený switch se 2 SFP sloty

  • Plně gigabitové porty -8 gigabitových portů RJ45 a 2 porty SFP poskytují vysokorychlostní připojení.
  • Integrováno do platformy Omada SDN – Funkce ZTP (Zero-Touch Provisioning)*, centralizovaná cloudová správa a inteligentní monitorování.
  • Centralizovaná správa – Cloudový přístup a aplikace Omada pro maximální pohodlí a snadnou správu.
  • Statické směrování – Pomáhá směrovat tok dat po lokální síti, čímž zajišťuje efektivní využívání síťových prostředků.
  • Robustní strategie zabezpečení – Funkce vázání na adresu IP-MAC, ACL, zabezpečení portů, ochrana proti útokům DoS, funkce Storm Control, funkce DHCP Snooping, ověřování protokolem 802.1X a Radius a další funkce.
  • Optimalizovaný přenos hlasu a videa v aplikacích – L2/L3/L4 QoS a funkce IGMP Snooping.
  • Samostatná správa – Webové rozhraní, CLI (konzolový port, Telnet, SSH), SNMP, RMON a funkce Dual Image přináší pokročilé možnosti správy.

Stránky produktu: https://www.tp-link.com/cz/business-networking/omada-sdn-switch/tl-sg3210/

Technické specifikace

HARDWARE FEATURES
Interface • 8× 10/100/1000 Mbps RJ45 Ports
• 2× Gigabit SFP Slots
• 1× RJ45 Console Port
• 1× Micro-USB Console Port
Fan Quantity Fanless
Power Supply 100-240 V AC~50/60 Hz
Dimensions ( W x D x H ) 11.6×7.1×1.7 in (294×180×44 mm)
Mounting Rack Mountable / Desktop
Max Power Consumption 6.84 W (220 V/50 Hz)
Max Heat Dissipation 23.33 BTU/h (220 V/50 Hz)
PERFORMANCE
Switching Capacity 20 Gbps
Packet Forwarding Rate 14.89 Mpps
MAC Address Table 8K
Jumbo Frame 9 KB
SOFTWARE FEATURES
Quality of Service • 8 priority queues
• 802.1p CoS/DSCP priority
• Queue scheduling
– SP (Strict Priority)
– WRR (Weighted Round Robin)
– SP+WRR
• Bandwidth Control
– Port/Flow based Rating Limiting
• Smoother Performance
• Action for Flows
– Mirror (to supported interface)
– Redirect (to supported interface)
– Rate Limit
– QoS Remark
L2 and L2+ Features • Link Aggregation
– Static link aggregation
– 802.3ad LACP
– Up to 8 aggregation groups and up to 8 ports per group
• Spanning Tree Protocol
– 802.1d STP
– 802.1w RSTP
– 802.1s MSTP
– STP Security: TC Protect, BPDU Filter, BPDU Protect, Root Protect, Loop Protect
• Loopback Detection
– Port-based
– VLAN based
• Flow Control
– 802.3x Flow Control
– HOL Blocking Prevention
• Mirroring
– Port Mirroring
– CPU Mirroring
– One-to-One
– Many-to-One
– Tx/Rx/Both
L2 Multicast • Supports 511 (IPv4, IPv6) IGMP groups
• IGMP Snooping
– IGMP v1/v2/v3 Snooping
– Fast Leave
– IGMP Snooping Querier
– IGMP Authentication
• IGMP Authentication
• MVR
• MLD Snooping
– MLD v1/v2 Snooping
– Fast Leave
– MLD Snooping Querier
– Static Group Config
– Limited IP Multicast
• Multicast Filtering: 256 profiles and 16 entries per profile
VLAN • VLAN Group
– Max 4K VLAN Groups
• 802.1q Tagged VLAN
• MAC VLAN: 12 Entries
• Protocol VLAN: Protocol Template 16, Protocol VLAN 16
• GVRP
• VLAN VPN (QinQ)
– Port-Based QinQ
– Selective QinQ
• Voice VLAN
Access Control List • Time-based ACL
• MAC ACL
– Source MAC
– Destination MAC
– VLAN ID
– User Priority
– Ether Type
• IP ACL
– Source IP
– Destination IP
– Fragment
– IP Protocol
– TCP Flag
– TCP/UDP Port
– DSCP/IP TOS
– User Priority
• Combined ACL
• Packet Content ACL
• IPv6 ACL
• Policy
– Mirroring
– Redirect
– Rate Limit
– QoS Remark
• ACL apply to Port/VLAN
Security • IP-MAC-Port Binding
– DHCP Snooping
– ARP Inspection
– IPv4 Source Guard
• IPv6-MAC-Port Binding
– DHCPv6 Snooping
– ND Detection
– IPv6 Source Guard
• DoS Defend
• Static/Dynamic Port Security
– Up to 64 MAC addresses per port
• Broadcast/Multicast/Unicast Storm Control
– kbps/ratio/pps control mode
• IP/Port/MAC based access control
• 802.1X
– Port based authentication
– Mac based authentication
– VLAN Assignment
– MAB
– Guest VLAN
– Support Radius authentication and
accountability
• AAA (including TACACS+)
• Port Isolation
• Secure web management through HTTPS with SSLv3/TLS 1.2
• Secure Command Line Interface (CLI) management with SSHv1/SSHv2
IPv6 • IPv6 Dual IPv4/IPv6
• Multicast Listener Discovery (MLD) Snooping
• IPv6 ACL
• IPv6 Interface
• Static IPv6 Routing
• IPv6 neighbor discovery (ND)
• Path maximum transmission unit (MTU) discovery
• Internet Control Message Protocol (ICMP) version 6
• TCPv6/UDPv6
• IPv6 applications
– DHCPv6 Client
– Ping6
– Tracert6
– Telnet (v6)
– IPv6 SNMP
– IPv6 SSH
– IPv6 SSL
– Http/Https
– IPv6 TFTP
L3 Features • 16 IPv4/IPv6 Interfaces
• Static Routing
– 48 static routes
• Static ARP
• 316 ARP Entries
• Proxy ARP
• Gratuitous ARP
• DHCP Server
• DHCP Relay
• DHCP L2 Relay
Management • Web-based GUI
• Command Line Interface (CLI) through console port, telnet
• SNMPv1/v2c/v3
– Trap/Inform
– RMON (1, 2, 3, 9 groups)
• SDM Template
• DHCP/BOOTP Client
• 802.1ab LLDP/LLDP-MED
• DHCP AutoInstall
• Dual Image, Dual Configuration
• CPU Monitoring
• Cable Diagnostics
• EEE
• Password Recovery
• SNTP
• System Log
Advanced Features • Support Omada Hardware Controller (OC200/OC300), Software Controller, Cloud-Based Controller
• Automatic Device Discovery
• Batch Configuration
• Batch Firmware Upgrading
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule
• ZTP (Zero-Touch Provisioning)*
OTHERS
Certification CE, FCC, RoHS
Package Contents •TL-SG3210 Switch
• Power Cord
• Quick Installation Guide
• Rackmount Kit
• Rubber Feet
Environment • Operating Temperature: 0°C–45°C (32°F–113°F);
• Storage Temperature: -40°C–70°C (-40°F–158°F)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing

Další informace

Hmotnost 2,4 kg
Rozměry 40 × 28 × 8 cm

Logistic data

Typ balení Délka (cm) Šířka (cm) Výška (cm) Hmotnost (kg) Počet kusů v balení
Kusové 40 28 8 2.4 1
Krabice 57.5 43 34.5 21.205 8
Technické specifikace se mohou změnit bez předchozího upozornění. Obsah aktuálního balení se může lišit i v závislosti na datu prodeje. Obrázky mají pouze informativní charakter.
