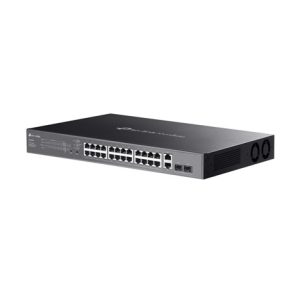

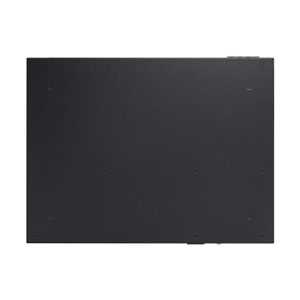

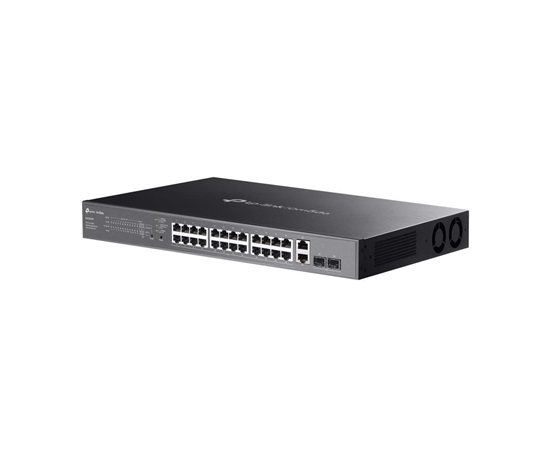

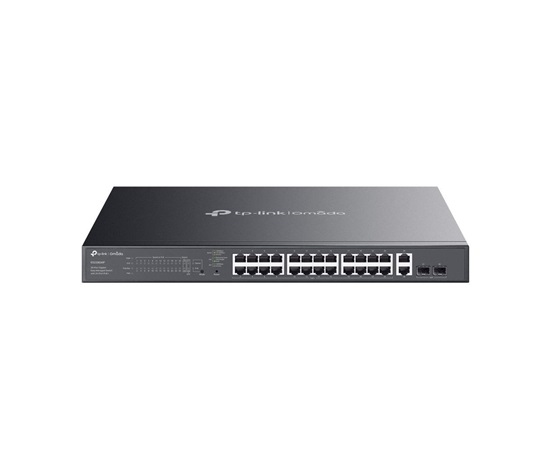

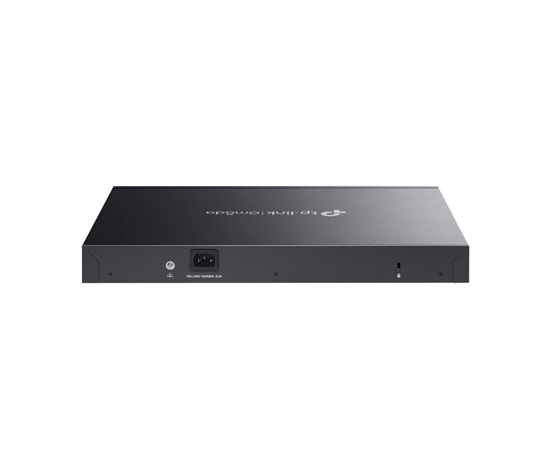

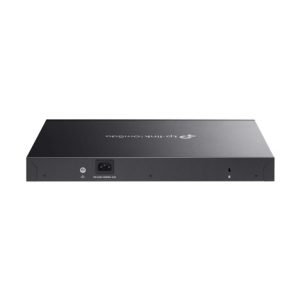

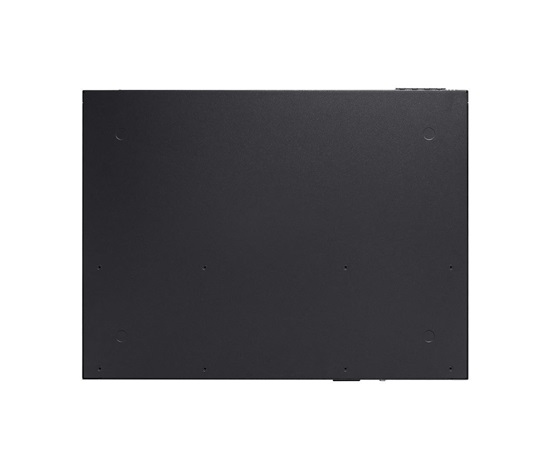

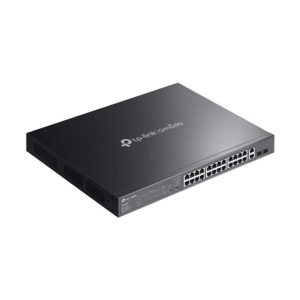

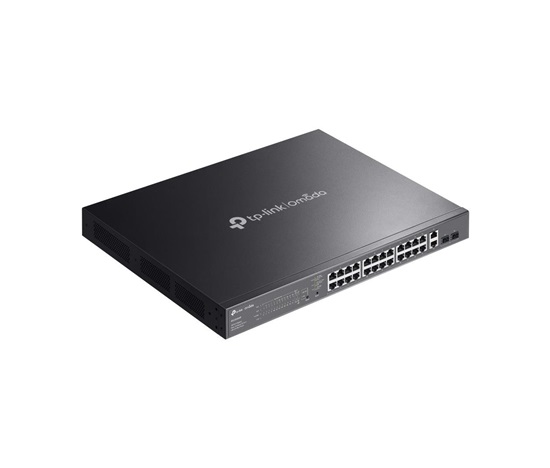

TP-Link OMADA switch ES228GMP (26xGbE,2xSFP,24xPoE+,384W)

Provedení:Rack mounted 19″; Funkce:QoS (Quality of service), VLAN (virtual local area network), PoE (Power over ethernet), DHCP snooping, L2, Web management/Smart switch; Technologie:Gigabit Ethernet 1000Mbps, Gigabit ethernet + Gigabit optika; Počet portů LAN:26; Podporované standardy PoE:802.3af, 802.3at; PoE budget (W):384; Počet SFP portů:2

Vaše cena vč. DPH

7 569 Kč s DPH

Dostupnost: 3 skladem

Kategorie: , , Značka: TP-link EAN: 1210002600989
Array ( [pa_brand] => Array ( [name] => pa_brand [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_status] => Array ( [name] => pa_status [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 0 ) [pa_provedeni] => Array ( [name] => pa_provedeni [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_funkce] => Array ( [name] => pa_funkce [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_technologie] => Array ( [name] => pa_technologie [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_pocet-portu-lan] => Array ( [name] => pa_pocet-portu-lan [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_podporovane-standardy-poe] => Array ( [name] => pa_podporovane-standardy-poe [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_poe-budget-w] => Array ( [name] => pa_poe-budget-w [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_pocet-sfp-portu] => Array ( [name] => pa_pocet-sfp-portu [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_pocet-portu-combo] => Array ( [name] => pa_pocet-portu-combo [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_ventilator] => Array ( [name] => pa_ventilator [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_maximalni-pocet-portu] => Array ( [name] => pa_maximalni-pocet-portu [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_pocet-poe-portu] => Array ( [name] => pa_pocet-poe-portu [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_management] => Array ( [name] => pa_management [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) )
Array ( [pa_brand] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 11 [name] => pa_brand [options] => Array ( [0] => 6200 ) [position] => 0 [visible] => [variation] => ) ) [pa_status] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 0 [name] => pa_status [options] => Array ( ) [position] => 0 [visible] => [variation] => ) ) [pa_provedeni] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 20 [name] => pa_provedeni [options] => Array ( [0] => 12524 ) [position] => 0 [visible] => [variation] => ) ) [pa_funkce] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 109 [name] => pa_funkce [options] => Array ( [0] => 12737 ) [position] => 0 [visible] => [variation] => ) ) [pa_technologie] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 21 [name] => pa_technologie [options] => Array ( [0] => 19885 ) [position] => 0 [visible] => [variation] => ) ) [pa_pocet-portu-lan] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 22 [name] => pa_pocet-portu-lan [options] => Array ( [0] => 10595 ) [position] => 0 [visible] => [variation] => ) ) [pa_podporovane-standardy-poe] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 224 [name] => pa_podporovane-standardy-poe [options] => Array ( [0] => 12582 ) [position] => 0 [visible] => [variation] => ) ) [pa_poe-budget-w] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 333 [name] => pa_poe-budget-w [options] => Array ( [0] => 19890 ) [position] => 0 [visible] => [variation] => ) ) [pa_pocet-sfp-portu] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 327 [name] => pa_pocet-sfp-portu [options] => Array ( [0] => 7231 ) [position] => 0 [visible] => [variation] => ) ) [pa_pocet-portu-combo] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 329 [name] => pa_pocet-portu-combo [options] => Array ( [0] => 7366 ) [position] => 0 [visible] => [variation] => ) ) [pa_ventilator] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 24 [name] => pa_ventilator [options] => Array ( [0] => 6982 ) [position] => 0 [visible] => [variation] => ) ) [pa_maximalni-pocet-portu] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 27 [name] => pa_maximalni-pocet-portu [options] => Array ( [0] => 7924 ) [position] => 0 [visible] => [variation] => ) ) [pa_pocet-poe-portu] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 1069 [name] => pa_pocet-poe-portu [options] => Array ( [0] => 18002 ) [position] => 0 [visible] => [variation] => ) ) [pa_management] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 26 [name] => pa_management [options] => Array ( [0] => 6924 ) [position] => 0 [visible] => [variation] => ) ) )
Rychlé doručení - vše skladem
Při objednání ve všední den do 16 hodin doručujeme druhý den.Více info
Doručení DPD, PPL na vámi zadanou adresu. V den dodání budete informování o doručení formou emailu a SMS zprávou ( je možné dodatečně změnit termín i místo dodání).

Popis

TP-Link OMADA switch ES228GMP

Omada 28-Port Gigabit Easy Managed Switch s 24-Porty PoE+

  • 26× 10/100/1000Mb/s RJ45 portů (24× PoE+ kompatibilní s 802.3af/at)
  • 2× gigabitové SFP sloty
  • Napájecí rozpočet 384 W, až 30 W na každý PoE port
  • Snadné použití: Podpora plug-and-play pro okamžité připojení a jednoduchá konfigurace pro další funkce
  • Centralizovaná cloudová správa přes web nebo aplikaci Omada†
  • Až 250m PoE, QoS, automatické obnovení PoE a izolace portů pro spolehlivou dohledovou síť
  • Automatická prevence smyček, VLAN a IGMP Snooping
  • Odolné kovové provedení a možnost montáže do racku

Stránky produktu: https://www.omadanetworks.com/cz/business-networking/omada-switch-agile/es228gmp/

Technické specifikace

HARDWARE FEATURES
Interface • 24× 10/100/1000 Mbps PoE+ RJ45 Ports (support 802.3af PoE and 802.3at PoE+)

• 2× 10/100/1000 Mbps RJ45 Port

• 2× Gigabit SFP Slot

• Auto-Negotiation/Auto MDI/MDIX
Fan Quantity 2
Installation Rackmountable
Physical Security Lock ?
Power Supply 100–240V AC, 50/60Hz
PoE Ports (RJ45) • Standard: 802.3af PoE and 802.3at PoE+ compliant

• PoE Ports: 24 ports

• PoE Budget: 384W available for all PoE+ ports, 30W max per port

• Fast PoE & Perpetual PoE

• PoE Auto Recovery‡

• Up to 250m PoE transmission distance**
Dimensions ( W x D x H ) 17.3 × 13.0 × 1.7 in.(440 × 330 × 44 mm)
Surge Protection ±6kV

PERFORMANCE
Switching Capacity 56 Gbps
Packet Forwarding Rate 41.67 Mpps
MAC Address Table 8K
Packet Buffer Memory 4 Mbit
Jumbo Frame 15 KB

SOFTWARE FEATURES
Quality of Service • Port-based/802.1p/DSCP QoS

• 8 Priority Queues

• Priority Schedule Mode

– WRR (Weighted Round Robin)

• Queue Weight Config

• Bandwidth Control

– Port-Based Rating Limit

• Storm Control

– Multiple Control Modes (kbps/pps)

– Broadcast/Multicast/Unknown-Unicast Control?
L2 Features • Static Link Aggregation

• Loop Prevention / Loopback Detection

• Flow Control

– 802.3x Flow Control

• Mirroring

– Port Mirroring

– One-to-One

– Many-to-One

– Ingress/Egress/Both

• Port Statistics

– Port Mirror Status

– Traffic Statistics

• 802.1ab LLDP
L2 Multicast • IGMP Snooping

– IGMP v1/v2/v3 Snooping

– Fast Leave
VLAN • MTU VLAN

• Port-Based VLAN

• 802.1Q Tag VLAN

– Max 32 VLAN Groups

– 4K VID
Transmission Method Store-And-Forward

Management Features
Omada App Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management • Omada Cloud-Based Controller

• Omada Hardware Controller

• Omada Software Controller
Cloud Access Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning Yes. Requires the use of Omada Cloud-Based Controller
Management Features • Web-based GUI

• DHCP Client

• Cable Diagnostics

• Automatic Device Discovery†

• Batch Configuration†

• Batch Firmware Upgrading†

• Unified Configuration†

OTHERS
Certification FCC, CE, RoHS
Package Content • ES228GMP

• Power Cord

• Mounting Brackets

• Rubber Feet

• Screws

• Installation Guide
Environment • Operating Temperature: -5?~45? (23?~113?)

• Storage Temperature: -40?~70? (-40?~158?)

• Operating Humidity: 10%~90% non-condensing

• Storage Humidity: 5%~90% non-condensing

Další informace

Hmotnost 6,13 kg
Rozměry 53 × 47 × 10 cm

Logistic data

Typ balení Délka (cm) Šířka (cm) Výška (cm) Hmotnost (kg) Počet kusů v balení
Kusové 53 47 10 6.13 1
Krabice 56 49 33 19.8 3
Technické specifikace se mohou změnit bez předchozího upozornění. Obsah aktuálního balení se může lišit i v závislosti na datu prodeje. Obrázky mají pouze informativní charakter.
