TP-Link OMADA průmyslový switch IES206GPP (4xGbE,1xGbE/SFPcombo,1xSFP,3xPoE+,1xPoE++,120W,DIN,IP40,fanless)

Provedení:DIN Rail; Funkce:QoS (Quality of service), VLAN (virtual local area network), PoE (Power over ethernet), DHCP snooping, L2, Web management/Smart switch; Technologie:Gigabit Ethernet 1000Mbps, Gigabit ethernet + Gigabit optika; Počet portů LAN:6; Přenosová rychlost LAN (Mb/s):1000; Podporované standardy PoE:802.3af, 802.3at, 802.3bt

Vaše cena vč. DPH

4 446 Kč s DPH

Dostupnost: 1 skladem

Kategorie: , , Značka: TP-link EAN: 1210002602051
Array ( [pa_brand] => Array ( [name] => pa_brand [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_status] => Array ( [name] => pa_status [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 0 ) [pa_provedeni] => Array ( [name] => pa_provedeni [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_funkce] => Array ( [name] => pa_funkce [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_technologie] => Array ( [name] => pa_technologie [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_pocet-portu-lan] => Array ( [name] => pa_pocet-portu-lan [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_prenosova-rychlost-lan-mb-s] => Array ( [name] => pa_prenosova-rychlost-lan-mb-s [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_podporovane-standardy-poe] => Array ( [name] => pa_podporovane-standardy-poe [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_poe-budget-w] => Array ( [name] => pa_poe-budget-w [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_pocet-poe-out-portu] => Array ( [name] => pa_pocet-poe-out-portu [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_pocet-sfp-portu] => Array ( [name] => pa_pocet-sfp-portu [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_pocet-portu-combo] => Array ( [name] => pa_pocet-portu-combo [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_ventilator] => Array ( [name] => pa_ventilator [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_pocet-poe-portu] => Array ( [name] => pa_pocet-poe-portu [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_maximalni-pocet-portu] => Array ( [name] => pa_maximalni-pocet-portu [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_vlastnosti-switche] => Array ( [name] => pa_vlastnosti-switche [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_management] => Array ( [name] => pa_management [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) )
Array ( [pa_brand] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 11 [name] => pa_brand [options] => Array ( [0] => 6200 ) [position] => 0 [visible] => [variation] => ) ) [pa_status] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 0 [name] => pa_status [options] => Array ( ) [position] => 0 [visible] => [variation] => ) ) [pa_provedeni] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 20 [name] => pa_provedeni [options] => Array ( [0] => 14685 ) [position] => 0 [visible] => [variation] => ) ) [pa_funkce] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 109 [name] => pa_funkce [options] => Array ( [0] => 12737 ) [position] => 0 [visible] => [variation] => ) ) [pa_technologie] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 21 [name] => pa_technologie [options] => Array ( [0] => 19885 ) [position] => 0 [visible] => [variation] => ) ) [pa_pocet-portu-lan] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 22 [name] => pa_pocet-portu-lan [options] => Array ( [0] => 18006 ) [position] => 0 [visible] => [variation] => ) ) [pa_prenosova-rychlost-lan-mb-s] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 23 [name] => pa_prenosova-rychlost-lan-mb-s [options] => Array ( [0] => 6555 ) [position] => 0 [visible] => [variation] => ) ) [pa_podporovane-standardy-poe] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 224 [name] => pa_podporovane-standardy-poe [options] => Array ( [0] => 13378 ) [position] => 0 [visible] => [variation] => ) ) [pa_poe-budget-w] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 333 [name] => pa_poe-budget-w [options] => Array ( [0] => 19117 ) [position] => 0 [visible] => [variation] => ) ) [pa_pocet-poe-out-portu] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 226 [name] => pa_pocet-poe-out-portu [options] => Array ( [0] => 7068 ) [position] => 0 [visible] => [variation] => ) ) [pa_pocet-sfp-portu] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 327 [name] => pa_pocet-sfp-portu [options] => Array ( [0] => 7231 ) [position] => 0 [visible] => [variation] => ) ) [pa_pocet-portu-combo] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 329 [name] => pa_pocet-portu-combo [options] => Array ( [0] => 9662 ) [position] => 0 [visible] => [variation] => ) ) [pa_ventilator] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 24 [name] => pa_ventilator [options] => Array ( [0] => 6543 ) [position] => 0 [visible] => [variation] => ) ) [pa_pocet-poe-portu] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 1069 [name] => pa_pocet-poe-portu [options] => Array ( [0] => 24071 ) [position] => 0 [visible] => [variation] => ) ) [pa_maximalni-pocet-portu] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 27 [name] => pa_maximalni-pocet-portu [options] => Array ( [0] => 6962 ) [position] => 0 [visible] => [variation] => ) ) [pa_vlastnosti-switche] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 227 [name] => pa_vlastnosti-switche [options] => Array ( [0] => 19806 ) [position] => 0 [visible] => [variation] => ) ) [pa_management] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 26 [name] => pa_management [options] => Array ( [0] => 6924 ) [position] => 0 [visible] => [variation] => ) ) )
Rychlé doručení - vše skladem
Při objednání ve všední den do 16 hodin doručujeme druhý den.Více info
Doručení DPD, PPL na vámi zadanou adresu. V den dodání budete informování o doručení formou emailu a SMS zprávou ( je možné dodatečně změnit termín i místo dodání).

Popis

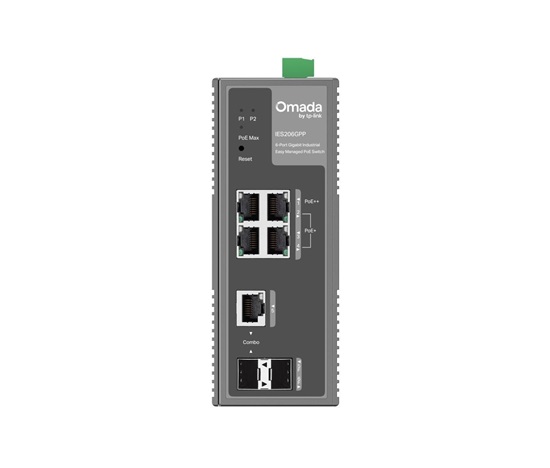

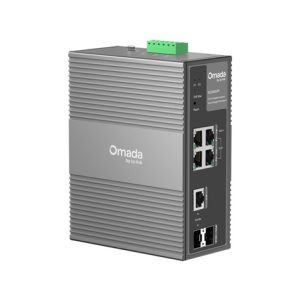

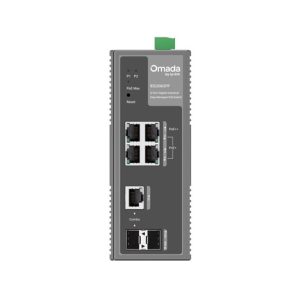

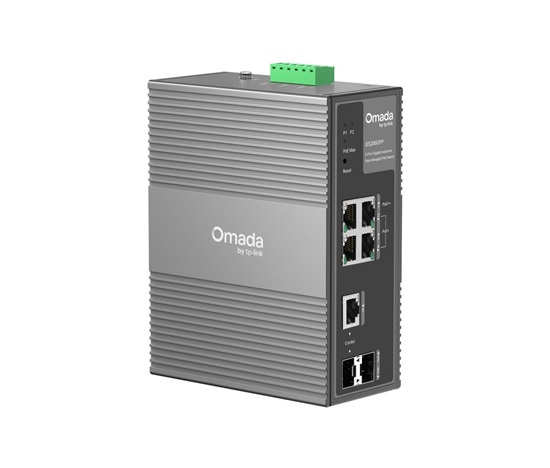

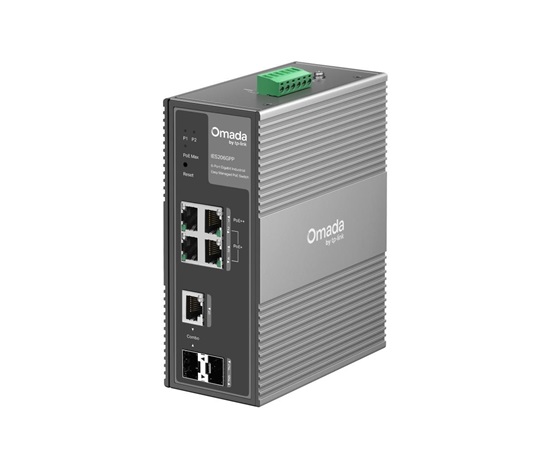

TP-Link OMADA průmyslový switch IES206GPP

Omada 6portový gigabitový průmyslový Easy Managed Switch s 3 porty PoE+ a 1 portem PoE++

  • 4× gigabitové RJ45 porty (1× PoE++, 3× PoE+)
  • 1× gigabitový kombinovaný RJ45/SFP slot, 1× gigabitový SFP slot
  • Napájecí rozpočet 120 W* s až 60 W pro PoE++ port
  • Profesionální průmyslový design: provozní teplota -40~75°C, ochrana proti přepětí 6 kV a duální napájení 1+1
  • Bohaté funkce: PoE až do vzdálenosti 250 m (820 ft)**, VLAN, QoS a STP/RSTP
  • Centralizovaná správa v cloudu přes web nebo aplikaci Omada†
  • Odolné hliníkové pouzdro s krytím IP40 a možnost montáže na DIN lištu nebo na stěnu

Stránky produktu: https://www.omadanetworks.com/cz/business-networking/omada-switch-industrial/ies206gpp

Technické specifikace

HARDWARE FEATURES
Interface • 1× 10/100/1000 Mbps PoE++ RJ45 Ports

• 3× 10/100/1000 Mbps PoE+ RJ45 Ports

• 1× Gigabit SFP/RJ45 Combo Slot

• 1× Gigabit SFP Slot

• Auto-Negotiation/Auto MDI/MDIX
Fan Quantity Fanless
Installation • DIN-rail mounting

• Wall mounting
Physical Security Lock ?

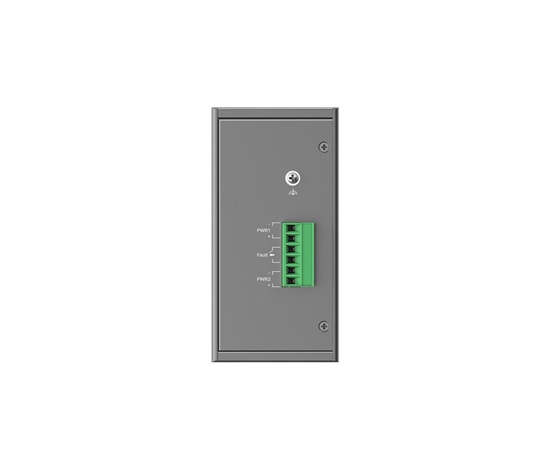

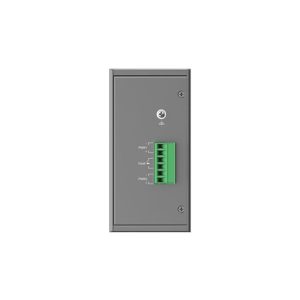

Power Supply 12-57V 1+1 Redundant DC Power Input
PoE Ports (RJ45) • Standard: 802.3af/at/bt compliant

• PoE++ Ports (802.3af/at/bt PoE): 1 Port, up to 60W per port

• PoE+ Ports (802.3af/at PoE): 3 Ports, up to 30W per port

• PoE Budget:

– 60W (Input: 12V / 7.0A – 21V / 3.5A))

– 120W (Input: 21V / 6.5A – 57V / 2.3A)
Dimensions ( W x D x H ) 6.1 × 4.7 × 2.4 in (155 × 120 × 60 mm)
Surge Protection • ±6 kV in common mode for Ethernet ports

• ±4 kV in common mode for DC power input ports

PERFORMANCE
Switching Capacity 12 Gbps
Packet Forwarding Rate 8.93 Mpps
MAC Address Table 8K
Packet Buffer Memory 4 Mbit
Jumbo Frame 15 KB

SOFTWARE FEATURES
Quality of Service • 802.1p DSCP Priority

• 8 Priority Queues

• Priority Schedule Mode

– WRR (Weighted Round Robin)

• Queue Weight Config

• Bandwidth Control

– Port-Based Rate Limit

• Storm Control

– Multiple Control Modes (kbps/pps)

– Broadcast/Multicast/Unknown-Unicast Control
L2 Features • Link Aggregation

– Static Link Aggregation

– Up to 2 aggregation groups and up to 4 ports per group

• Loopback Detection

• Flow Control

– 802.3x Flow Control

• Mirroring

– Port Mirroring

– One-to-One

– Many-to-One

– Ingress/Egress/Both

• Port Statistics

– Port Mirror Status

– Traffic Statistics

• 802.1ab LLDP

• Spanning Tree

– STP (802.1d)

– RSTP (802.1w)
L2 Multicast • IGMP Snooping

– IGMP v1/v2/v3 Snooping

– Fast Leave
VLAN • MTU VLAN

• Port-Based VLAN

• 802.1Q Tag VLAN

– Max 32 VLAN Groups

– 4K VID
Transmission Method Store-And-Forward

Management Features
Omada App Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management • Omada Cloud-Based Controller

• Omada Hardware Controller

• Omada Software Controller
Cloud Access Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning Yes. Requires the use of Omada Cloud-Based Controller
Management Features • Web-based GUI

• DHCP Client

• Cable Diagnostics

• Digital Diagnostic Monitoring (DDM)

• Automatic Device Discovery†

• Batch Configuration†

• Batch Firmware Upgrading†

• Unified Configuration†

OTHERS
Certification FCC, CE, RoHS
Package Content • IES206GPP

• DIN-Rail Mounting Bracket

• Wall-Mounting Plates

• Installation Guide
Environment • Operating Temperature: -40?~75? (-40?~167?)

• Storage Temperature: -40?~85? (-40?~185?)

• Operating Humidity: 5%~95% non-condensing

• Storage Humidity: 5%~95% non-condensing

Další informace

Hmotnost 1,372 kg
Rozměry 20 × 19,2 × 9,8 cm

Logistic data

Typ balení Délka (cm) Šířka (cm) Výška (cm) Hmotnost (kg) Počet kusů v balení
Kusové 20 19.2 9.8 1.372 1
Technické specifikace se mohou změnit bez předchozího upozornění. Obsah aktuálního balení se může lišit i v závislosti na datu prodeje. Obrázky mají pouze informativní charakter.
