TP-Link OMADA JetStream switch TL-SX3206HPP (4x10GbE, 2xSFP+, 4xPoE++, 200W, 2xconsole)

Provedení:Desktop, Rack mounted 19″; Funkce:QoS (Quality of service), VLAN (virtual local area network), PoE (Power over ethernet), DHCP snooping, L2, L2+, Web management/Smart switch; Technologie:10 Gigabit ethernet + 10 Gigabit optika; Počet portů LAN:4; Počet portů LAN:4; Podporované standardy PoE:802.3af, 802.3at, 802.3bt; PoE budget (W):200

Vaše cena vč. DPH

15 077 Kč s DPH

Dostupnost: 1 skladem

Kategorie: , , Značka: TP-link EAN: 6935364006617 Záruka: 0 Doživotní
Array ( [pa_brand] => Array ( [name] => pa_brand [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_status] => Array ( [name] => pa_status [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 0 ) [pa_provedeni] => Array ( [name] => pa_provedeni [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_funkce] => Array ( [name] => pa_funkce [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_technologie] => Array ( [name] => pa_technologie [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_pocet-portu-lan] => Array ( [name] => pa_pocet-portu-lan [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_podporovane-standardy-poe] => Array ( [name] => pa_podporovane-standardy-poe [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_poe-budget-w] => Array ( [name] => pa_poe-budget-w [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_pocet-sfp-portu] => Array ( [name] => pa_pocet-sfp-portu [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_ventilator] => Array ( [name] => pa_ventilator [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_pocet-poe-portu] => Array ( [name] => pa_pocet-poe-portu [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_maximalni-pocet-portu] => Array ( [name] => pa_maximalni-pocet-portu [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_prenosova-rychlost-lan-mb-s] => Array ( [name] => pa_prenosova-rychlost-lan-mb-s [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_vlastnosti-switche] => Array ( [name] => pa_vlastnosti-switche [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_management] => Array ( [name] => pa_management [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) )
Array ( [pa_brand] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 11 [name] => pa_brand [options] => Array ( [0] => 6200 ) [position] => 0 [visible] => [variation] => ) ) [pa_status] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 0 [name] => pa_status [options] => Array ( ) [position] => 0 [visible] => [variation] => ) ) [pa_provedeni] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 20 [name] => pa_provedeni [options] => Array ( [0] => 12524 ) [position] => 0 [visible] => [variation] => ) ) [pa_funkce] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 109 [name] => pa_funkce [options] => Array ( [0] => 12737 ) [position] => 0 [visible] => [variation] => ) ) [pa_technologie] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 21 [name] => pa_technologie [options] => Array ( [0] => 20136 ) [position] => 0 [visible] => [variation] => ) ) [pa_pocet-portu-lan] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 22 [name] => pa_pocet-portu-lan [options] => Array ( [0] => 7201 ) [position] => 0 [visible] => [variation] => ) ) [pa_podporovane-standardy-poe] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 224 [name] => pa_podporovane-standardy-poe [options] => Array ( [0] => 13378 ) [position] => 0 [visible] => [variation] => ) ) [pa_poe-budget-w] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 333 [name] => pa_poe-budget-w [options] => Array ( [0] => 20137 ) [position] => 0 [visible] => [variation] => ) ) [pa_pocet-sfp-portu] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 327 [name] => pa_pocet-sfp-portu [options] => Array ( [0] => 7231 ) [position] => 0 [visible] => [variation] => ) ) [pa_ventilator] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 24 [name] => pa_ventilator [options] => Array ( [0] => 6982 ) [position] => 0 [visible] => [variation] => ) ) [pa_pocet-poe-portu] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 1069 [name] => pa_pocet-poe-portu [options] => Array ( [0] => 17986 ) [position] => 0 [visible] => [variation] => ) ) [pa_maximalni-pocet-portu] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 27 [name] => pa_maximalni-pocet-portu [options] => Array ( [0] => 6962 ) [position] => 0 [visible] => [variation] => ) ) [pa_prenosova-rychlost-lan-mb-s] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 23 [name] => pa_prenosova-rychlost-lan-mb-s [options] => Array ( [0] => 9116 ) [position] => 0 [visible] => [variation] => ) ) [pa_vlastnosti-switche] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 227 [name] => pa_vlastnosti-switche [options] => Array ( [0] => 19806 ) [position] => 0 [visible] => [variation] => ) ) [pa_management] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 26 [name] => pa_management [options] => Array ( [0] => 12673 ) [position] => 0 [visible] => [variation] => ) ) )
Rychlé doručení - vše skladem
Při objednání ve všední den do 16 hodin doručujeme druhý den.Více info
Doručení DPD, PPL na vámi zadanou adresu. V den dodání budete informování o doručení formou emailu a SMS zprávou ( je možné dodatečně změnit termín i místo dodání).

Popis

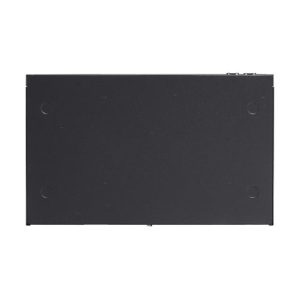

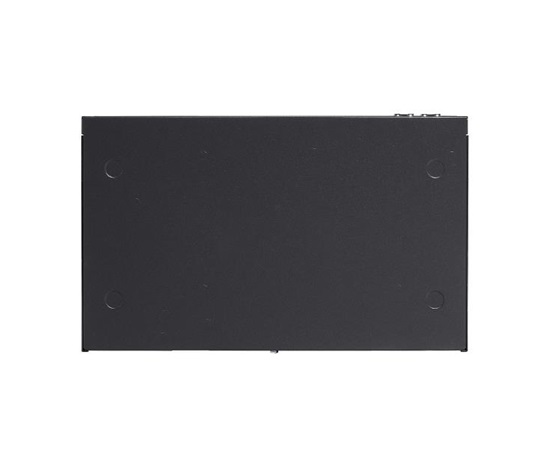

TP-Link JetStream switch TL-SX3206HPP

6portový řízený switch JetStream 10GE L2+ se 4 PoE++ porty

  • Bleskurychlé připojení s plnou 10G rychlostí – Nabízí připojení s velkou šířkou pásma pomocí čtyř 10Gbit/s RJ45 portů a dvou 10Gbit/s SFP+ slotů.
  • Napájení PoE++ s výstupním výkonem až 200 W – Čtyři 10G RJ45 porty podporující 802.3af/at/bt PoE++ napájení až 60 W na port jsou ideální pro nasazení přístupových bodů Omada WiFi 6 a WiFi 6E.
  • Multi-Gigabitové sítě – 10G RJ45 porty podporují 5 rychlostí připojení (100M/1G/2,5G/5G/10G) a SFP+ sloty lze osadit 10G i 1G transceivery
  • Pokročilé L2 a L2+ funkce – Podporuje kompletní sadu L2 a L2+ funkcí, jako jsou statický routing, QoS na podnikové úrovni a IGMP Snooping.
  • Robustní bezpečnostní strategie – Pomáhá chránit investice do místní sítě pomocí integrované funkce vázání na IP-MAC-Port, ACL, zabezpečením portů, ověřováním 802.1X a dalšími funkcemi.
  • Statický routing – Pomáhá směrovat interní provoz pro efektivnější využítí síťových prostředků.
  • Centralizovaná cloudová správa – Integrace s platformou Omada SDN pro cloudový přístup a vzdálenou správu.
  • Samostatná správa – Web, CLI (konzole port, Telnet, SSH), SNMP, RMON a Dual Image přináší výkonné možnosti správy.

Více informací o TP-Link PoE technologii >

Zjistit více o Omada Cloud SDN>?

Více informací o TP-Link 10G Multi-Gig technologii >

Stránky produktu: https://www.tp-link.com/cz/business-networking/managed-switch/tl-sx3206hpp/

Technické specifikace

HARDWARE FEATURES
Interface • 4× 100/1000/2500/5000/10000 Mbps RJ45 Ports
• 2× 10G SFP+ Slots
• 1× RJ45 Console Port
• 1× Micro-USB Console Port
Fan Quantity 2
Power Supply 100-240 V AC~50/60 Hz
PoE Ports (RJ45) • Standard: 802.3bt/at/af compliant
• PoE++ Ports: 4 Ports, up to 60 W per port
• Power Budget: 200 W
Dimensions ( W x D x H ) 11.6 × 7.1 × 1.7 in (294× 180 × 44 mm)
Mounting • Rack Mountable
• Desktop
Max Power Consumption • 27.29 W (110V/60Hz) (no PD connected)
• 244.90 W (110V/60Hz) (with 200 W PD connected)
Max Heat Dissipation • 93.12 BTU/h (110 V/60 Hz) (no PD connected)
• 835.67 BTU/h (110 V/60 Hz) (with 200 W PD connected)
PERFORMANCE
Switching Capacity 120 Gbps
Packet Forwarding Rate 89.28 Mpps
MAC Address Table 32 K
Jumbo Frame 9 KB
SOFTWARE FEATURES
Quality of Service • 8 priority queues
• 802.1p CoS/DSCP priority
• Queue scheduling
– SP (Strict Priority)
– WRR (Weighted Round Robin)
– SP+WRR
• Bandwidth Control
– Port/Flow based Rating Limiting
• Smoother Performance
• Action for Flows
– Mirror (to supported interface)
– Redirect (to supported interface)
– Rate Limit
– QoS Remark
L2 and L2+ Features • Link Aggregation
– static link aggregation
– 802.3ad LACP
– Up to 8 aggregation groups, containing 8 ports per group
• Spanning Tree Protocol
– 802.1d STP
– 802.1w RSTP
– 802.1s MSTP
– STP Security: TC Protect, BPDU Filter, Root Protect
• Loopback Detection
– Port based
– VLAN based
• Flow Control
– 802.3x Flow Control
– HOL Blocking Prevention
• Mirroring
– Port Mirroring
– CPU Mirroring
– One-to-One
– Many-to-One
– Tx/Rx/Both
L2 Multicast • IGMP Snooping
– IGMP v1/v2/v3 Snooping
– Fast Leave
– IGMP Snooping Querier
– IGMP Authentication
• IGMP Authentication
• MLD Snooping
– MLD v1/v2 Snooping
– Fast Leave
– MLD Snooping Querier
– Static Group Config
– Limited IP Multicast
• MVR
• Multicast Filtering: 256 profiles and 16 entries per profile
VLAN • VLAN Group
– Max 4K VLAN Groups
• 802.1Q Tagged VLAN
• MAC VLAN: 10 Entries
• Protocol VLAN: Protocol Template 16, Protocol VLAN 16
• Private VLAN
• GVRP
• VLAN VPN (QinQ)
– Port-Based QinQ
– Selective QinQ
• Voice VLAN
Access Control List • Time-based ACL
• MAC ACL
– Source MAC
– Destination MAC
– VLAN ID
– User Priority
– Ether Type
• IP ACL
-Source IP
– Destination IP
– Fragment
– IP Protocol
– TCP Flag
– TCP/UDP Port
– DSCP/IP TOS
– User Priority
• Combined ACL
• Packet Content ACL
• IPv6 ACL
• Policy
– Mirroring
– Redirect
– Rate Limit
– QoS Remark
• ACL apply to Port/VLAN
Security • IP-MAC-Port Binding
– 512 Entries
– DHCP Snooping
– ARP Inspection
– IPv4 Source Guard: 100 Entries
• IPv6-MAC-Port Binding
– 512 Entries
– DHCPv6 Snooping
– ND Detection
– IPv6 Source Guard: 100 Entries
• DoS Defend
• Static/Dynamic Port Security
– Up to 64 MAC addresses per port
• Broadcast/Multicast/Unicast Storm Control
– kbps/ratio control mode
• 802.1X
– Port base authentication
– Mac base authentication
– VLAN Assignment
– MAB
– Guest VLAN
– Support Radius authentication andaccountability
• AAA (including TACACS+)
• Port Isolation
• Secure web management through HTTPS with SSLv3/TLS 1.2
• Secure Command Line Interface (CLI) management with SSHv1/SSHv2
• IP/Port/MAC based access control
IPv6 • IPv6 Dual IPv4/IPv6
• Multicast Listener Discovery (MLD) Snooping
• IPv6 ACL
• IPv6 Interface
• Static IPv6 Routing
• IPv6 neighbor discovery (ND)
• Path maximum transmission unit (MTU) discovery
• Internet Control Message Protocol (ICMP) version 6
• TCPv6/UDPv6
• IPv6 applications
– DHCPv6 Client
– Ping6
– Tracert6
– Telnet (v6)
– IPv6 SNMP
– IPv6 SSH
– IPv6 SSL
– Http/Https
– IPv6 TFTP
L3 Features • 16 IPv4/IPv6 Interfaces
• Static Routing
– 48 static routes
• Static ARP
– 128 Static Entries
• Proxy ARP
• Gratuitous ARP
• DHCP Server
• DHCP Relay
– DHCP Interface Relay
– DHCP VLAN Relay
• DHCP L2 Relay
Advanced Features • Automatic Device Discovery
• Batch Configuration
• Batch Firmware Upgrading
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule
MIBs • MIB II (RFC1213)
• Interface MIB (RFC2233)
• Ethernet Interface MIB (RFC1643)
• Bridge MIB (RFC1493)
• P/Q-Bridge MIB (RFC2674)
• RMON MIB (RFC2819)
• RMON2 MIB (RFC2021)
• Radius Accounting Client MIB (RFC2620)
• Radius Authentication Client MIB (RFC2618)
• Remote Ping, Traceroute MIB (RFC2925)
• Support TP-Link private MIB
MANAGEMENT
Omada App Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management • Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
Cloud Access Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller.
Management Features • Web-based GUI
• Command Line Interface (CLI) through the console port, telnet
• SNMP v1/v2c/v3
– Trap/Inform
– RMON (1,2,3,9 groups)
• SDM Template
• DHCP/BOOTP Client
• 802.1ab LLDP/LLDP-MED
• DHCP AutoInstall
• Dual Image, Dual Configuration
• CPU Monitoring
• Cable Diagnostics
• EEE
• Password Recovery
• SNTP
• System Log
OTHERS
Certification CE, FCC, RoHS
Package Contents •TL-SX3206HPP Switch
• Power Cord
• Quick Installation Guide
• Rackmount Kit
• Rubber Feet
System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC OS, NetWare, UNIX or Linux.
Environment • Operating Temperature: 0–50 °C (32–122 °F);
• Storage Temperature: -40–70 °C (-40–158 °F)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing

Další informace

Hmotnost 2,662 kg
Rozměry 25,3 × 40,6 × 8,3 cm

Logistic data

Typ balení Délka (cm) Šířka (cm) Výška (cm) Hmotnost (kg) Počet kusů v balení
Kusové 25.3 40.6 8.3 2.662 1
Technické specifikace se mohou změnit bez předchozího upozornění. Obsah aktuálního balení se může lišit i v závislosti na datu prodeje. Obrázky mají pouze informativní charakter.
