TP-Link ER7406 OMADA VPN router (1xSFP LAN/WAN,1xGbEWAN,4xGbEWAN/LAN,1xUSB3.0)

Funkce:Router, VPN; Počet portů LAN:5; Gigabit ethernet; USB port; Počet SFP portů:1; Další vlastnosti:Podpora IPv6, Firewall, Management, FTP server, VLAN

Vaše cena vč. DPH

4 522 Kč s DPH

Dostupnost: 3 skladem

Kategorie: , , Značka: TP-link EAN: 8885020622300
Array ( [pa_brand] => Array ( [name] => pa_brand [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_status] => Array ( [name] => pa_status [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 0 ) [pa_funkce] => Array ( [name] => pa_funkce [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_pocet-portu-lan] => Array ( [name] => pa_pocet-portu-lan [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_gigabit-ethernet] => Array ( [name] => pa_gigabit-ethernet [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_usb-port] => Array ( [name] => pa_usb-port [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_pocet-sfp-portu] => Array ( [name] => pa_pocet-sfp-portu [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_dalsi-vlastnosti] => Array ( [name] => pa_dalsi-vlastnosti [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) )
Array ( [pa_brand] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 11 [name] => pa_brand [options] => Array ( [0] => 6200 ) [position] => 0 [visible] => [variation] => ) ) [pa_status] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 0 [name] => pa_status [options] => Array ( ) [position] => 0 [visible] => [variation] => ) ) [pa_funkce] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 109 [name] => pa_funkce [options] => Array ( [0] => 10175 ) [position] => 0 [visible] => [variation] => ) ) [pa_pocet-portu-lan] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 22 [name] => pa_pocet-portu-lan [options] => Array ( [0] => 6541 ) [position] => 0 [visible] => [variation] => ) ) [pa_gigabit-ethernet] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 207 [name] => pa_gigabit-ethernet [options] => Array ( [0] => 7903 ) [position] => 0 [visible] => [variation] => ) ) [pa_usb-port] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 188 [name] => pa_usb-port [options] => Array ( [0] => 7213 ) [position] => 0 [visible] => [variation] => ) ) [pa_pocet-sfp-portu] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 327 [name] => pa_pocet-sfp-portu [options] => Array ( [0] => 7904 ) [position] => 0 [visible] => [variation] => ) ) [pa_dalsi-vlastnosti] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 386 [name] => pa_dalsi-vlastnosti [options] => Array ( [0] => 10768 ) [position] => 0 [visible] => [variation] => ) ) )
Rychlé doručení - vše skladem
Při objednání ve všední den do 16 hodin doručujeme druhý den.Více info
Doručení DPD, PPL na vámi zadanou adresu. V den dodání budete informování o doručení formou emailu a SMS zprávou ( je možné dodatečně změnit termín i místo dodání).

Popis

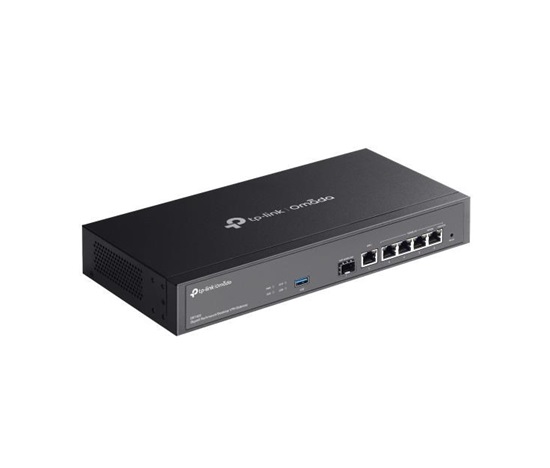

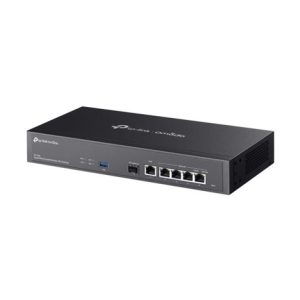

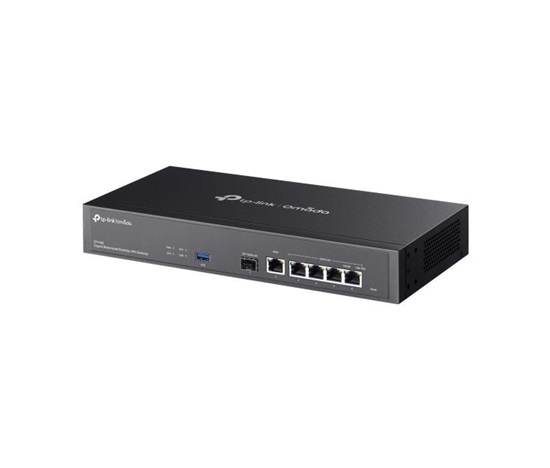

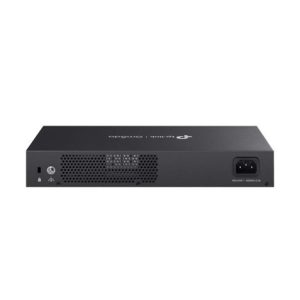

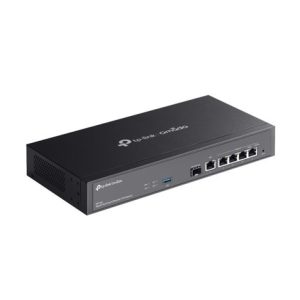

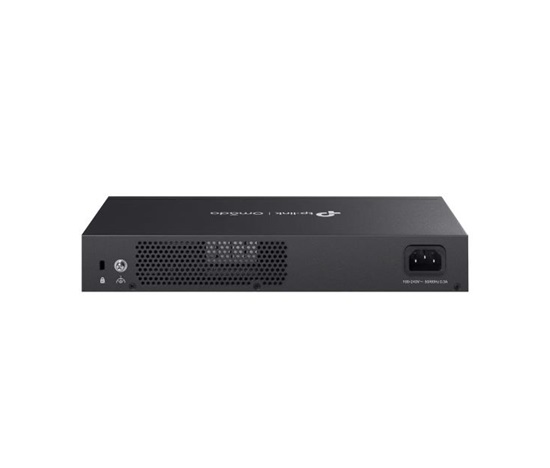

TP-Link ER7406

Omada Gigabitová gateway VPN pro montáž do racku / na stůl

  • 1× gigabitový SFP WAN/LAN port
  • 5× gigabitových RJ45 portů (1× WAN, 4× WAN/LAN)
  • 1× USB 3.0 port (podporuje USB úložiště a LTE zálohování s LTE donglem)
  • Vyvažování zátěže na až 5 WAN portech zvyšuje využití více-linek širokopásmového připojení
  • Vysoce zabezpečená SSL/IPSec/GRE§/WireGuard/PPTP/L2TP VPN a OpenVPN
  • Centralizovaná správa v cloudu přes web nebo aplikaci Omada
  • Ochrana proti DoS, filtrování IP/MAC/URL, DPI a IPS/IDS pro zvýšenou bezpečnost
  • Montáž do racku/stolní provedení

Stránky produktu: https://www.tp-link.com/cz/business-networking/omada-router-wired-router/er7406

Technické specifikace

SECURITY
Access Control Source/Destination IP Based Access Control
Filtering • WEB Group Filtering§

• URL Filtering

• Web Security§
ARP Inspection • Sending GARP Packets

• ARP Scanning§

• IP-MAC Binding
Attack Defense • TCP/UDP/ICMP Flood Defense

• Block TCP Scan (Stealth FIN/Xmas/Null)

• Block Ping from WAN

HARDWARE FEATURES
Standards and Protocols • IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q

• TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, WireGuard VPN, GRE VPN, SNMP
Interface • 1 Gigabit SFP WAN/LAN Port

• 1 Gigabit WAN Port

• 4 Gigabit LAN/WAN Ports

• 1 USB 3.0 Port (supports USB LTE dongle and USB storage)
Network Media • 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m)

• 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m)

• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
Fan Quantity Fanless
Button Reset Button
Power Supply 100-240VAC, 50/60Hz
Flash 128 MB NAND
DRAM 512 MB DDR4
LED PWR, SYS, SFP, USB, WAN(1000M Link/Act, 100/10M Link/Act), WAN/LAN (1000M Link/Act, 100/10M Link/Act)
Dimensions ( W x D x H ) 11.6 × 5.5 × 1.7 in (294 × 140 × 44 mm)
Protection 4 kV surge protection
Enclosure Steel
Mounting • Desktop

• Rackmountable
Max Power Consumption • 7.5 W (with USB 3.0 connected)

• 4.5 W (without USB 3.0 connected)

PERFORMANCE
IPS Throughput TCP: 229 Mbps;

UDP: 188 Mbps
DPI Throughput TCP: 933 Mbps;

UDP: 927 Mbps
GRE • Unencrypted: 611.9 Mbps

• Encrypted: 325.0 Mbps
WireGuard VPN 341.3 Mbps
Concurrent Session 150
New Sessions /Second 5,3
NAT (Static IP) 945.3 Mbps / 940.5 Mbps
NAT(DHCP) 939.6 Mbps / 940.9 Mbps
NAT(PPPoE) 943.6 Mbps / 940.9 Mbps
NAT (L2TP) 880.1 Mbps / 859.0 Mbps
NAT (PPTP) 855.0 Mbps / 907.2 Mbps
IPsec VPN Throughput • ESP-SHA1-AES256: 617.1 Mbps

• ESP-SHA256-AES256: 592.8 Mbps

• ESP-SHA384-AES256: 592.4 Mbps

• ESP-SHA512-AES256: 604.5 Mbps
OpenVPN 139.1 Mbps
L2TP VPN Throughput • Unencrypted: 977.4 Mbps

• Encrypted: 334.6 Mbps
PPTP VPN Throughput • Unencrypted: 1064.1 Mbps

• Encrypted: 206.8 Mbps
SSL VPN Throughput 131.6 Mbps
66 Byte Packet forwarding rate 1,453,489 pps / 1,453,488 pps
1,518 Byte Packet forwarding rate 81,279 pps / 81,275 pps

BASIC FUNCTIONS
WAN Connection Type • Static IP

• Dynamic IP

• PPPoE(supports MRU Configuration)

• PPTP

• L2TP
MAC Clone Modify WAN/LAN MAC Address (LAN MAC Address can be modified only in Standalone Mode)
DHCP • DHCP Server

• DHCPv6 PD Server (only in Standalone Mode)

• DHCP Options Customization

• DHCP Address Reservation

• Multi-IP Interfaces

• Multi-Net DHCP
IPv6 StaticIP/SLAAC/DHCPv6/PPPoE/6to4Tunnel/PassThrough/Non-Address mode
VLAN 802.1Q VLAN
IPTV IGMP v2/v3 Proxy, Custom Mode, Bridge Mode

ADVANCED FUNCTIONS
Advanced Routing • Static Routing

• Policy Routing

• RIP (available in Standalone Mode)

• OSPF (available in Standalone Mode)
Bandwidth Control IP-based Bandwidth Control
Load Balance • Intelligent Load Balance

• Application Optimized Routing

• Link Backup (Timing, Failover)

• Online Detection
NAT • One-to-One NAT

• Multi-Net NAT

• Port Forwarding

• Port Triggering§

• NAT-DMZ

• FTP/H.323/SIP/IPSec/PPTP ALG

• UPnP
Session Limit IP-based Session Limit

VPN
GRE ? (Only in Standalone Mode)
SSL VPN 50 Tunnels
IPsec VPN • 100 IPSec VPN Tunnels

• LAN-to-LAN, Client-to-LAN

• Main, Aggressive Negotiation Mode

• DES, 3DES, AES128, AES192, AES256 Encryption Algorithm

• IPsec Failover

• IKE v1/v2

• MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm

• NAT Traversal (NAT-T)

• Dead Peer Detection (DPD)

• Perfect Forward Secrecy (PFS)
PPTP VPN • PPTP VPN Server

• PPTP VPN Client (10)**

• 50 Tunnels

• PPTP with MPPE Encryption
L2TP VPN • L2TP VPN Server

• L2TP VPN Client (10)**

• 50 Tunnels

• L2TP over IPSec
OpenVPN • OpenVPN Server

• OpenVPN Client (5)**

• 55 OpenVPN Tunnels

• „Certificate + Account“ Mode

• Full Mode

AUTHENTICATION
Web Authentication • No Authentication

• Simple Password*

• Hotspot (Local User /Voucher*/ SMS/Radius*)

• External Radius Server

• External Portal Sever<*
• LDAP§

MANAGEMENT
Omada App Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management • Omada Cloud-Based Controller

• Omada Hardware Controller

• Omada Software Controller
Cloud Access Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Service Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)
Maintenance • Web Management Interface

• Remote Management

• Export & Import Configuration

• SNMP v1/v2c/v3

• Diagnostics (Ping & Traceroute) (only in Standalone Mode)

• NTP Synchronize (only in Standalone Mode)

• Port Mirroring

• CLI (only in Standalone Mode)

• Syslog Support
Zero-Touch Provisioning Yes. Requires the use of Omada Cloud-Based Controller.
Management Features • Automatic Device Discovery*

• Batch Configuration*

• Batch Firmware Upgrading*

• Intelligent Network Monitoring*

• Abnormal Event Warnings*

• Unified Configuration*

• Reboot Schedule*

OTHERS
Certification CE, FCC, RoHS
Package Contents • ER7406

• Power Cord

• Quick Installation Guide

• Rackmount Kit
System Requirements • Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10

• MAC OS, NetWare, UNIX or Linux
Environment • Operating Temperature: 0 °C to 50 °C (32 °F to 122°F)

• Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)

• Operating Humidity: 10% to 90% non-condensing

• Storage Humidity: 5% to 90% non-condensing

    Technické parametry

  • Funkce: vpn
  • Počet portů LAN: 5
  • Gigabit ethernet: ano
  • USB port: ano
  • Počet SFP portů: 1
  • Další vlastnosti: VLAN

Další informace

Hmotnost 1,769 kg
Rozměry 35 × 25 × 9 cm

Logistic data

Typ balení Délka (cm) Šířka (cm) Výška (cm) Hmotnost (kg) Počet kusů v balení
Kusové 35 25 9 1.769 1
Technické specifikace se mohou změnit bez předchozího upozornění. Obsah aktuálního balení se může lišit i v závislosti na datu prodeje. Obrázky mají pouze informativní charakter.
