TP-Link ER703WP-4G-Outdoor OMADA VPN 4G+Cat6 venkovní router (AX3000,3xGbEWAN/LAN,1xPoE+,2xPoE-out,1xnanoSIM,IP55)

Funkce:Router, VPN; Přenosová rychlost Wi-Fi (Mb/s):2100 – 2700; Podporované standardy:802.11a, 802.11ac, 802.11b, 802.11g, 802.11n, 802.11ax; Počet portů LAN:3; Gigabit ethernet; Typ antény:Integrovaná; Slot na SIM kartu; Další vlastnosti:Podpora IPv6, PoE (Power over ethernet), Podpora 4G/LTE, Podpora Wi-Fi Mesh, Management, FTP server, VLAN

Vaše cena vč. DPH

8 645 Kč s DPH

Dostupnost: 2 skladem

Kategorie: , , Značka: TP-link EAN: 8885020626858
Array ( [pa_brand] => Array ( [name] => pa_brand [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_status] => Array ( [name] => pa_status [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 0 ) [pa_funkce] => Array ( [name] => pa_funkce [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_prenosova-rychlost-wi-fi-mb-s] => Array ( [name] => pa_prenosova-rychlost-wi-fi-mb-s [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 0 ) [pa_podporovane-standardy] => Array ( [name] => pa_podporovane-standardy [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_pocet-portu-lan] => Array ( [name] => pa_pocet-portu-lan [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_gigabit-ethernet] => Array ( [name] => pa_gigabit-ethernet [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_typ-anteny] => Array ( [name] => pa_typ-anteny [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_usb-port] => Array ( [name] => pa_usb-port [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_slot-na-sim-kartu] => Array ( [name] => pa_slot-na-sim-kartu [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_dalsi-vlastnosti] => Array ( [name] => pa_dalsi-vlastnosti [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) )
Array ( [pa_brand] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 11 [name] => pa_brand [options] => Array ( [0] => 6200 ) [position] => 0 [visible] => [variation] => ) ) [pa_status] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 0 [name] => pa_status [options] => Array ( ) [position] => 0 [visible] => [variation] => ) ) [pa_funkce] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 109 [name] => pa_funkce [options] => Array ( [0] => 10175 ) [position] => 0 [visible] => [variation] => ) ) [pa_prenosova-rychlost-wi-fi-mb-s] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 0 [name] => pa_prenosova-rychlost-wi-fi-mb-s [options] => Array ( ) [position] => 0 [visible] => [variation] => ) ) [pa_podporovane-standardy] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 183 [name] => pa_podporovane-standardy [options] => Array ( [0] => 12695 ) [position] => 0 [visible] => [variation] => ) ) [pa_pocet-portu-lan] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 22 [name] => pa_pocet-portu-lan [options] => Array ( [0] => 7443 ) [position] => 0 [visible] => [variation] => ) ) [pa_gigabit-ethernet] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 207 [name] => pa_gigabit-ethernet [options] => Array ( [0] => 7903 ) [position] => 0 [visible] => [variation] => ) ) [pa_typ-anteny] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 185 [name] => pa_typ-anteny [options] => Array ( [0] => 6685 ) [position] => 0 [visible] => [variation] => ) ) [pa_usb-port] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 188 [name] => pa_usb-port [options] => Array ( [0] => 6718 ) [position] => 0 [visible] => [variation] => ) ) [pa_slot-na-sim-kartu] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 189 [name] => pa_slot-na-sim-kartu [options] => Array ( [0] => 6689 ) [position] => 0 [visible] => [variation] => ) ) [pa_dalsi-vlastnosti] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 386 [name] => pa_dalsi-vlastnosti [options] => Array ( [0] => 10768 ) [position] => 0 [visible] => [variation] => ) ) )
Rychlé doručení - vše skladem
Při objednání ve všední den do 16 hodin doručujeme druhý den.Více info
Doručení DPD, PPL na vámi zadanou adresu. V den dodání budete informování o doručení formou emailu a SMS zprávou ( je možné dodatečně změnit termín i místo dodání).

Popis

TP-Link OMADA ER703WP-4G-Outdoor

Omada 4G+ Cat6 AX3000 Wi-Fi 6 Outdoor/Indoor Gateway

  • 4G+ Cat6 s rychlostí až 300 Mb/s
  • AX3000 Wi-Fi 6 s 2402 Mb/s na 5 GHz a 574 Mb/s na 2.4 GHz

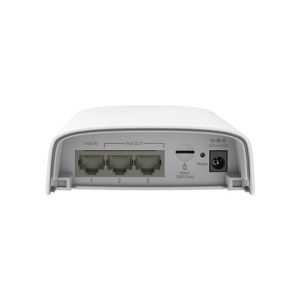

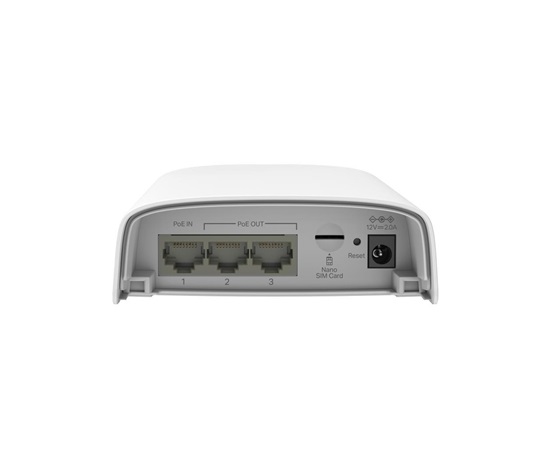

  • 3 × Gigabitové WAN/LAN porty (2 × PoE Out, 1 × PoE In)
  • 1 × Slot pro Nano SIM kartu
  • Napájení přes 802.3at/bt PoE nebo 12V/2A DC
  • Automatická záloha WAN mezi 4G a Ethernetem s vyvažováním zátěže
  • IPSec/L2TP/PPTP/OpenVPN/GRE/WireGuard/SSL VPN
  • Centralizovaná správa
  • Odolnost vůči povětrnostním vlivům (IP55)

Learn more about Omada Cloud SDN

https://www.tp-link.com/cz/business-networking/omada-router-wifi-router/er703wp-4g-outdoor/>

Technické specifikace

4G
Network Type LTE Band of EU:

4G LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32 (2100/1800/850/2600/9

00/800/700/1450 MHz)

4G LTE-TDD: B38/B40/B41 (2600/2300/2500 MHz)

3G DC-HSDPA/HSPA+/HSDPA/HSUPA/WCDMA: B1/B3/B5/B8

(2100/1800/850/900 MHz)

Carrier Aggregation:

B1+B1/B3/B5/B7/B8/B20/B28/B38/B40/B41

B3+B3/B5/B7/B8/B20/B28/B38/B40/B41

B5+B5/B7/B38/B40/B41

B7+B7/B8/B20/B28/B32

B8+B32/B38/B40/B41

B20+B32/B38/B40

B28+B32/B38/B40/B41

B38+B38

B40+B40

B41+B41
SIM Type 1× Nano SIM Card
Frequency • Downlink: 300 Mbps;

• Uplink: 50 Mbps

SECURITY
DPI Application control via DPI / Updated app library
Access Control Source/Destination IP Based Access Control
Filtering • Web Group Filtering

• URL Filtering

• Web Security
ARP Inspection • Sending GARP Packets

• ARP Scanning

• IP-MAC Binding
Attack Defense • TCP/UDP/ICMP Flood Defense

• Block TCP Scan (Stealth FIN/Xmas/Null)

• Block Ping from WAN

HARDWARE FEATURES
Interface • 3 Gigabit WAN/LAN Ports
Network Media • 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m)

• 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m)

• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
Button Reset Button
Power Supply 802.3at/bt PoE; 12VDC / 2A Power Adapter
Wi-Fi Frequency & Signal Rate • 2.4 GHz: 574 Mbps

• 5 GHz: 2402 Mbps (HE160)
Flash 256 MB NAND
DRAM 512 MB DDR4
LED 4G Signal, WLAN, WAN/LAN, SYS
Dimensions ( W x D x H ) 6.9 × 4.0 × 1.5 in (174.8 × 100.4 × 38.7 mm) (Antenna dimensions are not included)
Antenna • Wi-Fi: Two 5GHz 4.0dBi & 2.4GHz 2.3 dBi dual-band build-in

antennas

• LTE: Two 4.0dBi omnidirectional detachable antennas
Mounting Pole/Wall-Mounting
Max Power Consumption POE:62.9W max @ 220V/50Hz 25?

DC: 16.6W max @ 220V/50Hz 25?

PERFORMANCE
DPI Throughput • TCP: 1131 Mbps

• UDP: 974 Mbps
GRE • Unencrypted: 450.3Mbps

• Encrypted: 277.6Mbps
WireGuard VPN 462.8Mbps
Concurrent Session 120
New Sessions /Second 3,8
NAT (Static IP) 945.9Mbps / 950.2Mbps
NAT(DHCP) 947.3Mbps / 949.4Mbps
NAT(PPPoE) 916.9Mbps / 946.3Mbps
NAT (L2TP) 878.9Mbps / 778.9Mbps
NAT (PPTP) 852.2Mbps / 775.9Mbps
IPsec VPN Throughput • ESP-SHA1-AES256: 568.3Mbps

• ESP-SHA256-AES256: 559.8Mbps

• ESP-SHA384-AES256: 565.6Mbps

• ESP-SHA512-AES256: 550.0 Mbps
OpenVPN 85.1Mbps
L2TP VPN Throughput • Unencrypted: 858.7Mbps

• Encrypted: 467.0Mbps
PPTP VPN Throughput • Unencrypted: 876.2Mbps

• Encrypted: 182.6Mbps
SSL VPN Throughput 86.6Mbps
66 Byte Packet forwarding rate 1,453,489 pps / 1,453,489 pps
1,518 Byte Packet forwarding rate 81275 pps / 81275 pps

WIRELESS FEATURES
Advanced Functions • Seamless Roaming

• Mesh (with EAP that supports Mesh)

• OFDMA

• Beamforming

• MU-MIMO

• Rate Limit: Based on SSID/Client

• Airtime Fairness

• Wireless Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise

• Multiple SSIDs: 16 in total (8 per radio)
Guest Network Support

BASIC FUNCTIONS
WAN Connection Type • Static IP

• Dynamic IP

• PPPoE (supports MRU Configuration)

• PPTP

• L2TP
MAC Clone Modify WAN Address
DHCP • DHCP Server

• DHCPv6 PD Server (only in Standalone Mode)

• DHCP Options Customization

• DHCP Address Reservation

• Multi-IP Interfaces

• Multi-Net DHCP
SMS Receive / Send SMS
IPv6 StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode
VLAN 802.1Q VLAN
IPTV IGMP v2/v3 Proxy, Custom Mode, Bridge Mode

ADVANCED FUNCTIONS
ACL IP/Port/Protocol/Domain Name Filtering
Advanced Routing • Static Routing

• Policy Routing

• RIP

• OSPF
Bandwidth Control IP-Based Bandwidth Control
Load Balance • Intelligent Load Balance

• Application Optimized Routing

• Link Backup(Timing, Failover)

• Online Detection
NAT • One-to-One NAT

• Multi-Net NAT

• Virtual Server

• Port Triggering

• NAT-DMZ

• FTP/H.323/SIP/IPSec/PPTP ALG

• UPnP
Session Limit IP-Based Session Limit

VPN
GRE Only in Standalone Mode
SSL VPN 50 Tunnels
IPsec VPN • 100 IPSec VPN Tunnels

• LAN-to-LAN, Client-to-LAN

• Main, Aggressive Negotiation Mode

• DES, 3DES, AES128, AES192, AES256 Encryption Algorithm

• IPsec Failover

• IKE v1/v2

• MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm

• NAT Traversal (NAT-T)

• Dead Peer Detection (DPD)

• Perfect Forward Secrecy (PFS)
PPTP VPN • PPTP VPN Server

• PPTP VPN Client (10)

• 50 Tunnels

• PPTP with MPPE Encryption
L2TP VPN • L2TP VPN Server

• L2TP VPN Client (10)

• 50 Tunnels

• L2TP over IPSec
OpenVPN • OpenVPN Server

• OpenVPN Client (5)

• 55 OpenVPN Tunnels

• „Certificate + Account“ Mode

• Full Mode
WireGuard VPN • 20 Tunnels

AUTHENTICATION
Web Authentication • No Authentication

• Simple Password

• Hotspot (Local User / Voucher / SMS / Radius)

• External Radius Sever

• External Portal Sever

• LDAP

MANAGEMENT
Omada App Yes.
Centralized Management • Omada Cloud Essentials

• Omada Cloud-Based Controller

• Omada Hardware Controller (OC300)

• Omada Hardware Controller (OC200)

• Omada Software Controller
Cloud Access Yes.
Service Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)
Maintenance • Web Management Interface

• Remote Management

• Export & Import Configuration

• SNMP v1/v2c/v3

• Diagnostics (Ping & Traceroute)

• NTP Synchronize

• Port Mirroring

• CLI (only in Standalone Mode)

• Syslog Support
Management Features • Automatic Device Discovery

• Intelligent Network Monitoring

• Abnormal Event Warnings

• Unified Configuration

• Reboot Schedule

• Captive Portal Configuration

OTHERS
Certification CE, FCC, RoHS
Package Contents • ER703WP-4G-Outdoor

• Mounting Kits

• Quick Installation Guide
System Requirements • Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11

• MAC OS, NetWare, UNIX or Linux
Environment • Operating Temperature: -30 °C to 60 °C (-22 °F to 140 °F)

• Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)

• Operating Humidity: 5% to 95% non-condensing

• Storage Humidity: 5% to 90% non-condensing

    Technické parametry

  • Funkce: vpn
  • Podporované standardy: 802.11ax
  • Počet portů LAN: 3
  • Gigabit ethernet: ano
  • Typ antény: integrovana
  • USB port: ne
  • Slot na SIM kartu: ano
  • Další vlastnosti: VLAN
Technické specifikace se mohou změnit bez předchozího upozornění. Obsah aktuálního balení se může lišit i v závislosti na datu prodeje. Obrázky mají pouze informativní charakter.
