TP-Link EAP603-Outdoor venkovní OMADA WiFi6 AP (AX1800,2,4GHz/5GHz,1xGbELAN,1xPoE-in)

Typ aktivního prvku:AP (Access Point), MU-MIMO; Frekvenční pásmo (GHz):2,4, 5, 2,4 + 5 (Dual Band); Podporované standardy:802.11ax, 802.11b/g, 802.11b/g/n, 802.11b, 802.11a, 802.11a/n, 802.11g, 802.11n, 802.11ac; Zabezpečení:WEP 64bit, WPA-PSK, WPA2-PSK, WPA-Enterprise, WPA2-Enterprise, WPA3; Typ antény:Integrovaná; Použití:Venkovní; Typy PoE:PoE – In

Vaše cena vč. DPH

2 816 Kč s DPH

Dostupnost: 2 skladem

Kategorie: , , Značka: TP-link EAN: 1210002605731
Array ( [pa_status] => Array ( [name] => pa_status [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_brand] => Array ( [name] => pa_brand [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_typ-aktivniho-prvku] => Array ( [name] => pa_typ-aktivniho-prvku [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_frekvencni-pasmo-ghz] => Array ( [name] => pa_frekvencni-pasmo-ghz [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_podporovane-standardy] => Array ( [name] => pa_podporovane-standardy [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_zabezpeceni] => Array ( [name] => pa_zabezpeceni [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_typ-anteny] => Array ( [name] => pa_typ-anteny [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_pripojeni-externi-anteny] => Array ( [name] => pa_pripojeni-externi-anteny [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_usb-port] => Array ( [name] => pa_usb-port [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_slot-na-sim-kartu] => Array ( [name] => pa_slot-na-sim-kartu [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_pouziti] => Array ( [name] => pa_pouziti [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_typy-poe] => Array ( [name] => pa_typy-poe [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_pocet-portu-lan] => Array ( [name] => pa_pocet-portu-lan [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_dalsi-vlastnosti] => Array ( [name] => pa_dalsi-vlastnosti [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) )
Array ( [pa_status] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 10 [name] => pa_status [options] => Array ( [0] => 6082 ) [position] => 0 [visible] => [variation] => ) ) [pa_brand] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 11 [name] => pa_brand [options] => Array ( [0] => 6200 ) [position] => 0 [visible] => [variation] => ) ) [pa_typ-aktivniho-prvku] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 181 [name] => pa_typ-aktivniho-prvku [options] => Array ( [0] => 16686 ) [position] => 0 [visible] => [variation] => ) ) [pa_frekvencni-pasmo-ghz] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 182 [name] => pa_frekvencni-pasmo-ghz [options] => Array ( [0] => 12938 ) [position] => 0 [visible] => [variation] => ) ) [pa_podporovane-standardy] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 183 [name] => pa_podporovane-standardy [options] => Array ( [0] => 12561 ) [position] => 0 [visible] => [variation] => ) ) [pa_zabezpeceni] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 184 [name] => pa_zabezpeceni [options] => Array ( [0] => 7999 ) [position] => 0 [visible] => [variation] => ) ) [pa_typ-anteny] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 185 [name] => pa_typ-anteny [options] => Array ( [0] => 6685 ) [position] => 0 [visible] => [variation] => ) ) [pa_pripojeni-externi-anteny] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 186 [name] => pa_pripojeni-externi-anteny [options] => Array ( [0] => 6686 ) [position] => 0 [visible] => [variation] => ) ) [pa_usb-port] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 188 [name] => pa_usb-port [options] => Array ( [0] => 6718 ) [position] => 0 [visible] => [variation] => ) ) [pa_slot-na-sim-kartu] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 189 [name] => pa_slot-na-sim-kartu [options] => Array ( [0] => 6964 ) [position] => 0 [visible] => [variation] => ) ) [pa_pouziti] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 68 [name] => pa_pouziti [options] => Array ( [0] => 8315 ) [position] => 0 [visible] => [variation] => ) ) [pa_typy-poe] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 583 [name] => pa_typy-poe [options] => Array ( [0] => 12818 ) [position] => 0 [visible] => [variation] => ) ) [pa_pocet-portu-lan] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 22 [name] => pa_pocet-portu-lan [options] => Array ( [0] => 6569 ) [position] => 0 [visible] => [variation] => ) ) [pa_dalsi-vlastnosti] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 386 [name] => pa_dalsi-vlastnosti [options] => Array ( [0] => 10768 ) [position] => 0 [visible] => [variation] => ) ) )
Rychlé doručení - vše skladem
Při objednání ve všední den do 16 hodin doručujeme druhý den.Více info
Doručení DPD, PPL na vámi zadanou adresu. V den dodání budete informování o doručení formou emailu a SMS zprávou ( je možné dodatečně změnit termín i místo dodání).

Popis

TP-Link EAP603-Outdoor

AX1800 vnitřní/venkovní přístupový bod s Wi-Fi 6

  • Plynulé rychlosti Wi-Fi 6 až 1,8 Gb/s – 574 Mb/s v pásmu 2,4 GHz a 1201 Mb/s v pásmu 5 GHz.†
  • Všesměrové dvoupásmové pokrytí – Dosah až 300 m (984 ft) pro dlouhý dosah pokrytí.*
  • Napájení PoE+ – Podpora 802.3at PoE i pasivního PoE (adaptér je součástí balení).
  • Ideální pro venkovní prostředí – Krytí IP65, ochrana proti přepětí 6 kV a spolehlivý provozní rozsah od -40 °C do +70 °C.
  • Snadná a rychlá instalace – Montáž na zeď nebo stožár; Omada SDN umožňuje nastavení jedním kliknutím.
  • Pokročilé funkce – Omada Mesh, plynulý roaming a centralizovaná cloudová správa.§

Stránky produktu: https://www.omadanetworks.com/cz/business-networking/omada-wifi-outdoor/eap603-outdoor

Technické specifikace

HARDWARE FEATURES

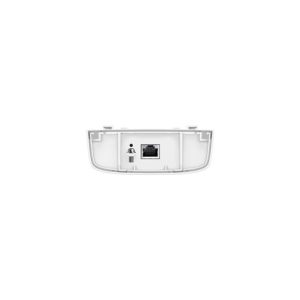

Interface • 1× 10M/100M/1000Mbps Gigabit Ethernet Port (RJ45); PoE in

• 1× Grounding Termina
Button 1× Reset button: Press the button for longer than 5 seconds to make the device restore to factory settings.
Power Supply • 802.3at PoE

• 48V Passive PoE (PoE Adapter Included – For Dry Indoor Use Only)
Max. Power Consumption • 802.3at (PoE+): 15.8w, 2.4GHz radio 2×2, 5GHz radio 2×2, wired link rate can be up

to 1 Gbps, etc.

• Idle mode: 4.8W(PoE)
Dimensions ( W x D x H ) • Main Unit: 230 × 207.5 × 69.7 mm (9.06 × 8.17 × 2.74 in.)

• Shipping Unit: 324 × 104 × 245 mm (12.76 × 4.09 × 9.65 in.)
Antenna Wi-Fi

• 2.4 GHz: 2 × 4 dBi (peak gain), external omnidirectional antennas

• 5 GHz: 2 × 5 dBi (peak gain), external omnidirectional antennas

*Note: The gains above are the single-antenna peak gains.

IoT

• Bluetooth: 1 × 4 dBi (peak gain), internal omnidirectional

antennas
Bluetooth Yes
Weatherproof Enclosure IP66 for Wall Mount

IP65 for Pole Mount
Mounting • Pole Mount (Kits included)

• Wall Mount (Kits included)

WIRELESS FEATURES
Coverage • 2.4 GHz: up to 2,150 ft (200 m)

• 5 GHz: up to 3,200 ft (300 m)
Wireless Standards 5 GHz: IEEE 802.11a/n/ac/ax

2.4 GHz: IEEE 802.11b/g/n/ax
Frequency • 5 GHz

• 2.4 GHz
Signal Rate • 2.4 GHz: up to 573 Mbps

• 5 GHz: up to 1201 Mbps

*Note: Country-Specific Restriction Apply
Wireless Functions • Maximum number of BSSIDs: 16 (8 on each band)

• Maximum number of associated STAs: 250+

• Guest Network

• ACS (Automatic Channel Selection)

• Airtime Fairness

• Band Steering

• 802.11 Rate Control

• Rogue AP Detection

• URL Filtering

• WLAN Optimization

• Lock to AP

• SSID/Client Rate Limit

• Load Balance

• Seamless Roaming (802.11k/v/r, Non-Stick Roaming, Ping-Pong Roaming Suppression, AI Roaming)§

• Multicast/Broadcast Management (Multicast-to-Unicast Conversion, ARP-to-Unicast Conversation, Multicast Filtering, Multicast/Broadcast Rate Limit)

• QoS (Quality of Service)
Wireless Security • ACL

• MAC Filter

• 802.1X Authentication

• MAC-Based Authentication

• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise, Enhanced Open, and None

• Radius Accounting

• PPSK without Radius, PPSK with Radius (Generic Radius with bound MAC/EKMS/Generic Radius with unbound MAC)

• Captive Portal: No Authentication, Simple Password, Hotspot (Voucher / Local User / SMS / RADIUS / Form Auth), RADIUS Server, External LDAP Server, External Portal Server, Pre-Authentication Access, and Authentication-Free Client

• EAP Types: EAP-TLS, EAP-TTLS, EAP-PEAP, EAP-CHAP, EAP-SIM, EAP-AKA, EAP-GTC, EAP-FAST, EAP-PEAP, EAP-MD5, EAP-MSCHAPv2, PEAPv0, PEAPv1
Transmission Power Maximum transmit power:

CE (ERIP)

• 2.4 GHz: 20 dBm

• 5 GHz: 23 dBm in U-NII-1, 23 dBm in U-NII-2A, 29 dBm in U-NII-2C,

FCC (Conducted Power)

• 2.4 GHz: 25 dBm

• 5 GHz: 27 dBm in U-NII-1, 24 dBm in U-NII-2A, 24 dBm in U-NII-2C, 27 dBm in U-NII-3

Minimum transmit power

CE (ERIP)

• 2.4 GHz: 7 dBm

• 5 GHz: 6 dBm in U-NII-1, 6 dBm in U-NII-2A, 6 dBm in U-NII-2C, 6

dBm in U-NII-3

FCC (Conducted Power)

• 2.4 GHz: 4 dBm

• 5 GHz: 4 dBm in U-NII-1, 4 dBm in U-NII-2A, 4 dBm in U-NII-2C,

4dBm in U-NII-3

Adjustable power increment: 1 dBm

*Note: MIMO combined power, excluding antenna gains. The actual

transmit power depends on local laws and regulations

Management Features
Omada App Yes
Restore & Backup Yes
Firmware update via Web Yes
NTP Yes
Centralized Management • Omada Hardware Controller

• Omada Software Controller

• Omada Central (Cloud-Based)

• Omada App
Cloud Access Yes. Require the use of an Omada controller.
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1, v2c, v3
SSH Yes
Web-based Management Yes

OTHERS
Certification CE, FCC, RoHS
Package Content • EAP603-Outdoor

• Passive PoE Adapter

• Power Cord

• Installation Guide

• Mounting Kit

• Waterproof Kit
Environment • Operating Temperature: -30 °C–70 °C (-22 °F–158 °F);

• Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);

• Operating Humidity: 10%–90% non-condensing;

• Storage Humidity: 5%–90% non-condensing

Další informace

Hmotnost 0,926 kg
Rozměry 22,4 × 22,6 × 7,4 cm

Logistic data

Typ balení Délka (cm) Šířka (cm) Výška (cm) Hmotnost (kg) Počet kusů v balení
Kusové 22.4 22.6 7.4 0.926 1
Technické specifikace se mohou změnit bez předchozího upozornění. Obsah aktuálního balení se může lišit i v závislosti na datu prodeje. Obrázky mají pouze informativní charakter.
