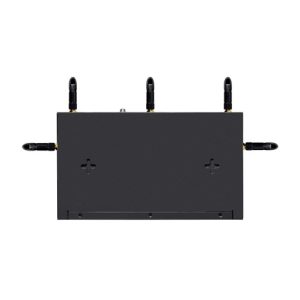

TP-Link DR3650v-4G OMADA ADSL/VDSL/4GLTE gateway (AX3000,2xFXS,1xDSL,2,4GHz/5GHz,1xGbELAN/WAN,4xGbE,1xUSB3.0,2xnanoSIM)

Funkce:ADSL, ADSL2+, Brána, Gateway, Router, VDSL2, VPN, Modem pro mobilní data; Přenosová rychlost Wi-Fi (Mb/s):2100 – 2700; Podporované standardy:802.11a, 802.11ac, 802.11b, 802.11g, 802.11n, 802.11ax; Počet portů LAN:5; Gigabit ethernet; Typ antény:Odnímatelná; USB port; Slot na SIM kartu; Další vlastnosti:Podpora IPv6, Management, FTP server, VLAN

Vaše cena vč. DPH

9 586 Kč s DPH

Dostupnost: 1 skladem

Kategorie: , , Značka: TP-link EAN: 8885020626773
Array ( [pa_brand] => Array ( [name] => pa_brand [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_status] => Array ( [name] => pa_status [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 0 ) [pa_funkce] => Array ( [name] => pa_funkce [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_prenosova-rychlost-wi-fi-mb-s] => Array ( [name] => pa_prenosova-rychlost-wi-fi-mb-s [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 0 ) [pa_podporovane-standardy] => Array ( [name] => pa_podporovane-standardy [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_pocet-portu-lan] => Array ( [name] => pa_pocet-portu-lan [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_gigabit-ethernet] => Array ( [name] => pa_gigabit-ethernet [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_typ-anteny] => Array ( [name] => pa_typ-anteny [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_usb-port] => Array ( [name] => pa_usb-port [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_slot-na-sim-kartu] => Array ( [name] => pa_slot-na-sim-kartu [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_dalsi-vlastnosti] => Array ( [name] => pa_dalsi-vlastnosti [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) )
Array ( [pa_brand] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 11 [name] => pa_brand [options] => Array ( [0] => 6200 ) [position] => 0 [visible] => [variation] => ) ) [pa_status] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 0 [name] => pa_status [options] => Array ( ) [position] => 0 [visible] => [variation] => ) ) [pa_funkce] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 109 [name] => pa_funkce [options] => Array ( [0] => 41399 ) [position] => 0 [visible] => [variation] => ) ) [pa_prenosova-rychlost-wi-fi-mb-s] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 0 [name] => pa_prenosova-rychlost-wi-fi-mb-s [options] => Array ( ) [position] => 0 [visible] => [variation] => ) ) [pa_podporovane-standardy] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 183 [name] => pa_podporovane-standardy [options] => Array ( [0] => 12695 ) [position] => 0 [visible] => [variation] => ) ) [pa_pocet-portu-lan] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 22 [name] => pa_pocet-portu-lan [options] => Array ( [0] => 6541 ) [position] => 0 [visible] => [variation] => ) ) [pa_gigabit-ethernet] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 207 [name] => pa_gigabit-ethernet [options] => Array ( [0] => 7903 ) [position] => 0 [visible] => [variation] => ) ) [pa_typ-anteny] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 185 [name] => pa_typ-anteny [options] => Array ( [0] => 7345 ) [position] => 0 [visible] => [variation] => ) ) [pa_usb-port] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 188 [name] => pa_usb-port [options] => Array ( [0] => 7213 ) [position] => 0 [visible] => [variation] => ) ) [pa_slot-na-sim-kartu] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 189 [name] => pa_slot-na-sim-kartu [options] => Array ( [0] => 6689 ) [position] => 0 [visible] => [variation] => ) ) [pa_dalsi-vlastnosti] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 386 [name] => pa_dalsi-vlastnosti [options] => Array ( [0] => 10768 ) [position] => 0 [visible] => [variation] => ) ) )
Rychlé doručení - vše skladem
Při objednání ve všední den do 16 hodin doručujeme druhý den.Více info
Doručení DPD, PPL na vámi zadanou adresu. V den dodání budete informování o doručení formou emailu a SMS zprávou ( je možné dodatečně změnit termín i místo dodání).

Popis

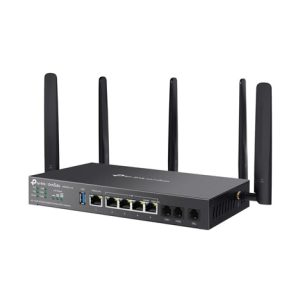

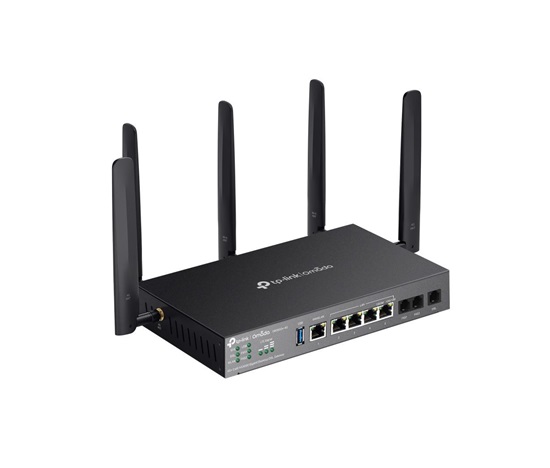

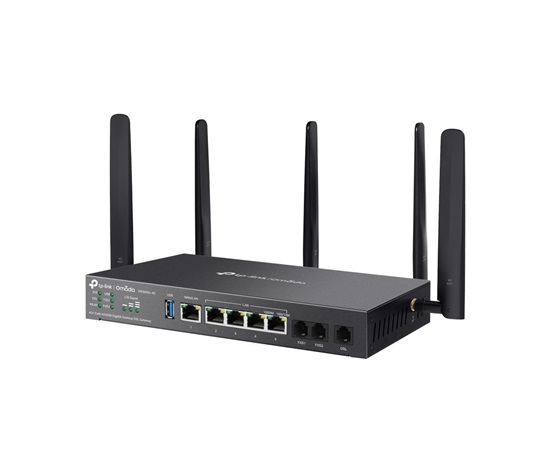

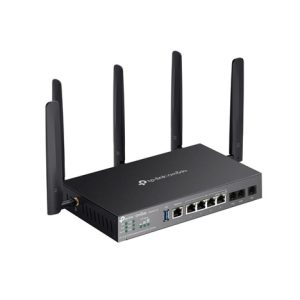

TP-Link OMADA DR3650v-4G

Omada 4G+ Cat6 AX3000 Wi-Fi 6 Gigabit Desktop DSL Gateway

  • AX3000 Wi-Fi 6 s 2402 Mb/s na frekvenci 5 GHz a 574 Mb/s na frekvenci 2 GHz. 4 GHz*1
  • 4G+ Cat6 až 300Mb/s
  • 3× Porty RJ11 (2× FXS, 1× DSL) & 5× Gigabitové porty RJ45 & 1× USB 3.0 Port
  • 2× Nano SIM pro 4G/LTE Failover
  • VDSL2 35b: Podporuje 350Mb/s přístup DSL*2
  • Kompatibilita s VDSL2/ADSL2+/ADSL2/ADSL
  • IPSec/PPTP/L2TP/OpenVPN/WireGuard/GRE/SSL VPN
  • Vyvažování zátěže napříč DSL, 4G a Ethernet WAN pro optimalizované připojení
  • Centralizovaná správa cloudu
  • Montáž na stůl/stěnu/stojan (zakoupit samostatně sadu pro montáž do stojanu D226)

Learn more about Omada Cloud SDN

Stránky produktu: https://www.omadanetworks.com/cz/business-networking/omada-router-dsl-router/dr3650v-4g

Technické specifikace

SECURITY
Access Control Source/Destination IP Based Access Control
Filtering • Web Group Filtering*5

• URL Filtering

• Web Security*5
ARP Inspection • Sending GARP Packets

• ARP Scanning*5

• IP-MAC Binding
Attack Defense • TCP/UDP/ICMP Flood Defense

• Block TCP Scan (Stealth FIN/Xmas/Null)

• Block Ping from WAN

HARDWARE FEATURES

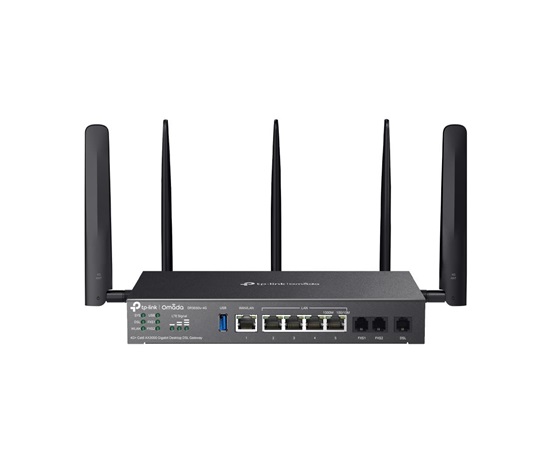

Interface • 1× Gigabit WAN/LAN Port

• 4× Gigabit LAN Ports

• 1× DSL Port

• 2× FXS Ports

• 1× USB 3.0 (supports USB LTE dongle and USB Storage)

• Dual Nano SIM Slot (4G+ Cat6)

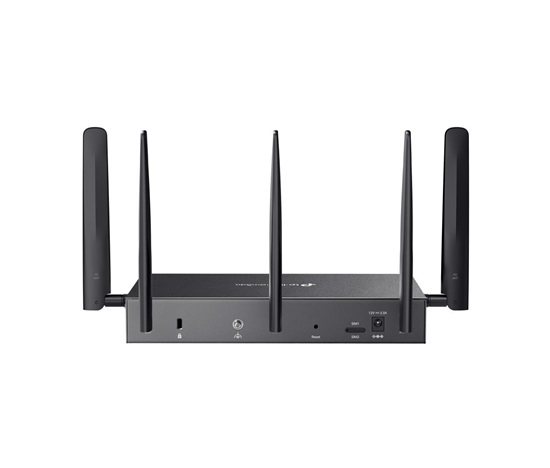

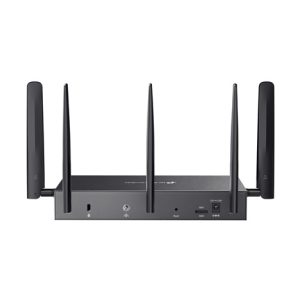

Button Reset Button
Power Supply 12V DC / 3.3A Power Adapter
Wi-Fi Frequency & Signal Rate • 2.4 GHz: 574 Mbps

• 5 GHz: 2402 Mbps (HE160)
Flash 256 MB NAND
DRAM 512 MB DDR4
Dimensions ( W x D x H ) 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm) (Antenna dimensions are not

included)
Antenna • Wi-Fi: 3× 5GHz 5dBi & 2.4GHz 3.5dBi dual-band detachable

antennas

• LTE: 2× 4.0dBi omnidirectional detachable antennas

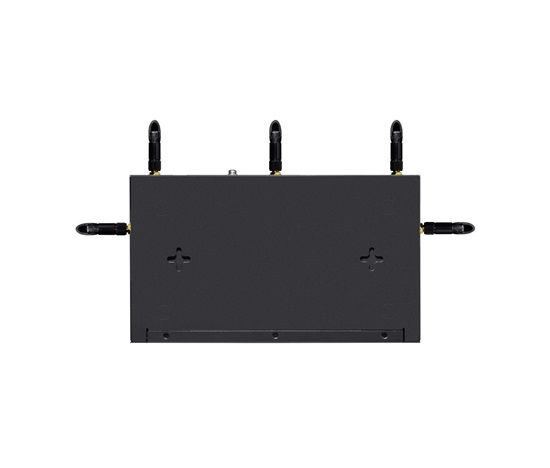

Mounting Desktop / Wall / Rack mount (Purchase Rackmount Kit-D226 Separately)
Max. Power Consumption Power adapter not included: 28.482 W (Full load + USB)

Power adapter included: 31.42 W (Full load + USB)

PERFORMANCE
GRE • Unencrypted: 541.8Mbp

• Encrypted: 289.2Mbps
WireGuard VPN 311.6Mbps
Concurrent Session 150
New Sessions /Second 3,8
NAT (Static IP) 937.2 Mbps / 936.1Mbps
NAT(DHCP) 945.8 Mbps / 940.6Mbps
NAT(PPPoE) 942.9 Mbps / 942.9Mbps
NAT (L2TP) 837.4 Mbps / 881.5Mbps
NAT (PPTP) 803.0 Mbps / 910.5 Mbps
IPsec VPN Throughput • ESP-SHA1-AES256: 569.9Mbps

• ESP-SHA256-AES256: 543.3Mbps

• ESP-SHA384-AES256: 549.0Mbps

• ESP-SHA512-AES256: 539.3Mbps
OpenVPN 129.3Mbps
L2TP VPN Throughput • Unencrypted: 909.4 Mbps

• Encrypted: 494.9Mbps
PPTP VPN Throughput • Unencrypted: 897.5 Mbps

• Encrypted: 190.8 Mbps
SSL VPN Throughput 126.7Mbps
66 Byte Packet Forwarding Rate 1,453,489 pps / 1,453,488 pps
1,518 Byte Packet forwarding rate 81,274 pps / 91,275 pps

WIRELESS FEATURES
Advanced Features • Seamless Roaming

• Mesh (with EAP that supports Mesh)

• OFDMA

• Beamforming

• Enable/Disable SSID Broadcast

• Enable/Disable Wireless Radio

• MU-MIMO

• Load Balance

• Automatic Channel Selection Algorithm

• Airtime Fairness

• Rate Limit: Based on SSID/Client

• Transmit Power Control: Adjust transmit Power on dBm

• Multiple SSIDs: 16 in total (8 per radio)

• Wireless Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise
Guest Network Support

BASIC FUNCTIONS
WAN Connection Type • Static IP

• Dynamic IP

• PPPoE (supports MRU Configuration)

• PPTP

• L2TP
MAC Clone Modify WAN Address
DHCP • DHCP Server

• DHCPv6 PD Server (only in Standalone Mode)

• DHCP Options Customization

• DHCP Address Reservation

• Multi-IP Interfaces

• Multi-Net DHCP
IPv6 StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode
VLAN 802.1Q VLAN
IPTV IGMP v2/v3 Proxy, Custom Mode, Bridge Mode

Advanced Features
Advanced Routing • Static Routing

• Policy Routing

• RIP*5

• OSPF*5
Bandwidth Control IP-Based Bandwidth Control
Load Balance • Intelligent Load Balance

• Application Optimized Routing

• Link Backup(Timing, Failover)

• Online Detection
NAT • One-to-One NAT

• Multi-Net NAT

• Virtual Server

• Port Triggering*5

• NAT-DMZ

• FTP/H.323/SIP/IPSec/PPTP ALG

• UPnP
Session Limit IP-Based Session Limit

VPN
GRE Only in Standalone Mode
SSL VPN 50 Tunnels
IPsec VPN • 100 IPSec VPN Tunnels

• LAN-to-LAN, Client-to-LAN

• Main, Aggressive Negotiation Mode

• DES, 3DES, AES128, AES192, AES256 Encryption Algorithm

• IPsec Failover

• IKE v1/v2

• MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm

• NAT Traversal (NAT-T)

• Dead Peer Detection (DPD)

• Perfect Forward Secrecy (PFS)
PPTP VPN • PPTP VPN Server

• PPTP VPN Client (10)*6

• 50 Tunnels

• PPTP with MPPE Encryption
L2TP VPN • L2TP VPN Server

• L2TP VPN Client (10)*6

• 50 Tunnels

• L2TP over IPSec
OpenVPN • OpenVPN Server

• OpenVPN Client (5)*6

• 55 OpenVPN Tunnels

• „Certificate + Account“ Mode

• Full Mode
WireGuard VPN Yes

AUTHENTICATION
Web Authentication • No Authentication

• Simple Password*6

• Hotspot (Local User / Voucher*6 / SMS*6 / Radius*6)

• External Radius Sever

• External Portal Sever*6

• LDAP

Management Features
Omada App Yes
Centralized Management • Omada Cloud-Based Controller

• Omada Hardware Controller

• Omada Software Controller
Cloud Access Yes. Require the use of Omada Controller.
Service Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)
Maintenance • Web Management Interface

• Remote Management

• Export & Import Configuration

• SNMP v1/v2c/v3

• Diagnostics (Ping & Traceroute)*5

• NTP Synchronize*5

• Port Mirroring

• CLI (only in Standalone Mode)

• Syslog Support

• TR-069 (data models of TR-098 and TR181 are supported)
Zero-Touch Provisioning Yes.Require the use of Omada Controller.
Management Features • Automatic Device Discovery

• Intelligent Network Monitoring

• Abnormal Event Warnings

• Unified Configuration

• Reboot Schedule

• Captive Portal Configuration

OTHERS
Certification CE, RoHS
Package Content • DR3650v-4G

• Power Adapter

• Ethernet Cable

• Phone Cable

• Rubber Feet,

• SIM Card Eject Pin

• Quick Installation Guide
System Requirements • Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11

• MAC OS, NetWare, UNIX or Linux
Environment • Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)

• Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)

• Operating Humidity: 10% to 90% non-condensing

• Storage Humidity: 5% to 90% non-condensing

Další informace

Hmotnost 1,834 kg
Rozměry 29,2 × 27,6 × 7,5 cm

Logistic data

Typ balení Délka (cm) Šířka (cm) Výška (cm) Hmotnost (kg) Počet kusů v balení
Kusové 29.2 27.6 7.5 1.834 1
Technické specifikace se mohou změnit bez předchozího upozornění. Obsah aktuálního balení se může lišit i v závislosti na datu prodeje. Obrázky mají pouze informativní charakter.
