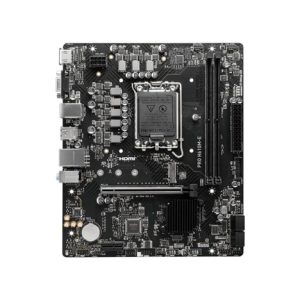

MSI MB Sc LGA1700 PRO H610M-E, Intel H610, 2xDDR5, 1xHDMI, 1xVGA, mATX

Formát základní desky:micro ATX; Chipset:Intel H610; Socket (patice):Socket 1700; Pro procesory:Intel; Technologie paměti RAM:DDR5; Počet paměťových slotů:2; M.2 slot:1; SATA 3:4; Podpora RAID:Bez RAID podpory; PCI Express x16:1; PCI Express x1:1; PCI:0; LAN:1Gbit/s; Bezdrátové připojení:bez; DisplayPort:0; HDMI:1; VGA:1; DVI:0; DisplayPort Type-C:0

Vaše cena vč. DPH

1 714 Kč s DPH

Dostupnost: 30 skladem

Kategorie: , , Značka: MSI EAN: 4711377125147 Záruka: 36 Měsíc(ů)
Array ( [pa_brand] => Array ( [name] => pa_brand [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_status] => Array ( [name] => pa_status [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 0 ) [pa_format-zakladni-desky] => Array ( [name] => pa_format-zakladni-desky [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_chipset] => Array ( [name] => pa_chipset [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_socket-patice] => Array ( [name] => pa_socket-patice [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_pro-procesory] => Array ( [name] => pa_pro-procesory [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_technologie-pameti-ram] => Array ( [name] => pa_technologie-pameti-ram [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_pocet-pametovych-slotu] => Array ( [name] => pa_pocet-pametovych-slotu [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_m-2-slot] => Array ( [name] => pa_m-2-slot [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_sata-3] => Array ( [name] => pa_sata-3 [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_podpora-raid] => Array ( [name] => pa_podpora-raid [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_pci-express-x16] => Array ( [name] => pa_pci-express-x16 [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_pci-express-x1] => Array ( [name] => pa_pci-express-x1 [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_pci] => Array ( [name] => pa_pci [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_lan] => Array ( [name] => pa_lan [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_bezdratove-pripojeni] => Array ( [name] => pa_bezdratove-pripojeni [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_displayport] => Array ( [name] => pa_displayport [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_hdmi] => Array ( [name] => pa_hdmi [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_vga] => Array ( [name] => pa_vga [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_dvi] => Array ( [name] => pa_dvi [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_displayport-type-c] => Array ( [name] => pa_displayport-type-c [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_pocet-thunderbolt] => Array ( [name] => pa_pocet-thunderbolt [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_usb-2] => Array ( [name] => pa_usb-2 [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_usb-3] => Array ( [name] => pa_usb-3 [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_usb-c] => Array ( [name] => pa_usb-c [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_led-header] => Array ( [name] => pa_led-header [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_tpm] => Array ( [name] => pa_tpm [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_com-port] => Array ( [name] => pa_com-port [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_3-5mm-jack] => Array ( [name] => pa_3-5mm-jack [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_lpt-port] => Array ( [name] => pa_lpt-port [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) )
Array ( [pa_brand] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 11 [name] => pa_brand [options] => Array ( [0] => 6195 ) [position] => 0 [visible] => [variation] => ) ) [pa_status] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 0 [name] => pa_status [options] => Array ( ) [position] => 0 [visible] => [variation] => ) ) [pa_format-zakladni-desky] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 680 [name] => pa_format-zakladni-desky [options] => Array ( [0] => 12851 ) [position] => 0 [visible] => [variation] => ) ) [pa_chipset] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 678 [name] => pa_chipset [options] => Array ( [0] => 13724 ) [position] => 0 [visible] => [variation] => ) ) [pa_socket-patice] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 677 [name] => pa_socket-patice [options] => Array ( [0] => 13547 ) [position] => 0 [visible] => [variation] => ) ) [pa_pro-procesory] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 676 [name] => pa_pro-procesory [options] => Array ( [0] => 8033 ) [position] => 0 [visible] => [variation] => ) ) [pa_technologie-pameti-ram] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 165 [name] => pa_technologie-pameti-ram [options] => Array ( [0] => 9860 ) [position] => 0 [visible] => [variation] => ) ) [pa_pocet-pametovych-slotu] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 679 [name] => pa_pocet-pametovych-slotu [options] => Array ( [0] => 7977 ) [position] => 0 [visible] => [variation] => ) ) [pa_m-2-slot] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 691 [name] => pa_m-2-slot [options] => Array ( [0] => 7866 ) [position] => 0 [visible] => [variation] => ) ) [pa_sata-3] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 689 [name] => pa_sata-3 [options] => Array ( [0] => 7983 ) [position] => 0 [visible] => [variation] => ) ) [pa_podpora-raid] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 681 [name] => pa_podpora-raid [options] => Array ( [0] => 12861 ) [position] => 0 [visible] => [variation] => ) ) [pa_pci-express-x16] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 684 [name] => pa_pci-express-x16 [options] => Array ( [0] => 7979 ) [position] => 0 [visible] => [variation] => ) ) [pa_pci-express-x1] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 685 [name] => pa_pci-express-x1 [options] => Array ( [0] => 8037 ) [position] => 0 [visible] => [variation] => ) ) [pa_pci] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 690 [name] => pa_pci [options] => Array ( [0] => 7865 ) [position] => 0 [visible] => [variation] => ) ) [pa_lan] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 693 [name] => pa_lan [options] => Array ( [0] => 12958 ) [position] => 0 [visible] => [variation] => ) ) [pa_bezdratove-pripojeni] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 698 [name] => pa_bezdratove-pripojeni [options] => Array ( [0] => 7873 ) [position] => 0 [visible] => [variation] => ) ) [pa_displayport] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 697 [name] => pa_displayport [options] => Array ( [0] => 7872 ) [position] => 0 [visible] => [variation] => ) ) [pa_hdmi] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 696 [name] => pa_hdmi [options] => Array ( [0] => 7871 ) [position] => 0 [visible] => [variation] => ) ) [pa_vga] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 694 [name] => pa_vga [options] => Array ( [0] => 7985 ) [position] => 0 [visible] => [variation] => ) ) [pa_dvi] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 695 [name] => pa_dvi [options] => Array ( [0] => 8215 ) [position] => 0 [visible] => [variation] => ) ) [pa_displayport-type-c] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 972 [name] => pa_displayport-type-c [options] => Array ( [0] => 9822 ) [position] => 0 [visible] => [variation] => ) ) [pa_pocet-thunderbolt] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 1125 [name] => pa_pocet-thunderbolt [options] => Array ( [0] => 17979 ) [position] => 0 [visible] => [variation] => ) ) [pa_usb-2] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 686 [name] => pa_usb-2 [options] => Array ( [0] => 9251 ) [position] => 0 [visible] => [variation] => ) ) [pa_usb-3] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 687 [name] => pa_usb-3 [options] => Array ( [0] => 8038 ) [position] => 0 [visible] => [variation] => ) ) [pa_usb-c] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 688 [name] => pa_usb-c [options] => Array ( [0] => 7982 ) [position] => 0 [visible] => [variation] => ) ) [pa_led-header] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 699 [name] => pa_led-header [options] => Array ( [0] => 7874 ) [position] => 0 [visible] => [variation] => ) ) [pa_tpm] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 702 [name] => pa_tpm [options] => Array ( [0] => 7988 ) [position] => 0 [visible] => [variation] => ) ) [pa_com-port] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 700 [name] => pa_com-port [options] => Array ( [0] => 7875 ) [position] => 0 [visible] => [variation] => ) ) [pa_3-5mm-jack] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 692 [name] => pa_3-5mm-jack [options] => Array ( [0] => 7867 ) [position] => 0 [visible] => [variation] => ) ) [pa_lpt-port] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 701 [name] => pa_lpt-port [options] => Array ( [0] => 7876 ) [position] => 0 [visible] => [variation] => ) ) )
Rychlé doručení - vše skladem
Při objednání ve všední den do 16 hodin doručujeme druhý den.Více info
Doručení DPD, PPL na vámi zadanou adresu. V den dodání budete informování o doručení formou emailu a SMS zprávou ( je možné dodatečně změnit termín i místo dodání).

Popis

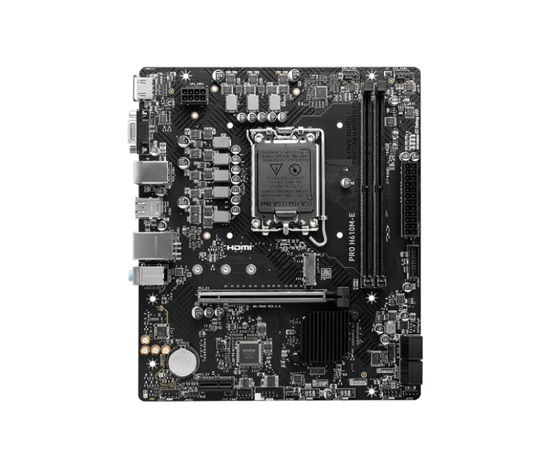

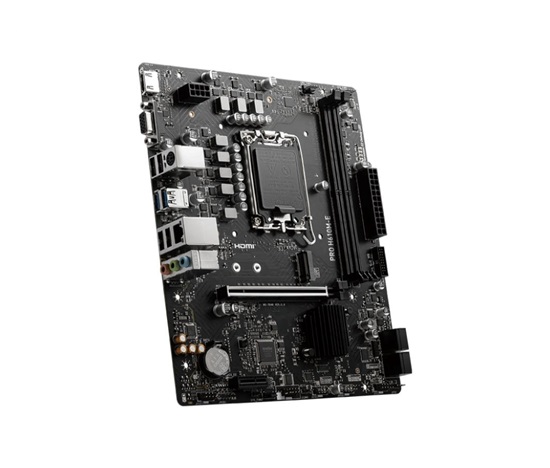

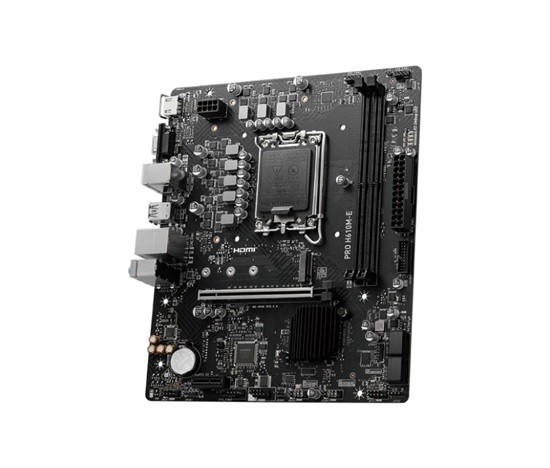

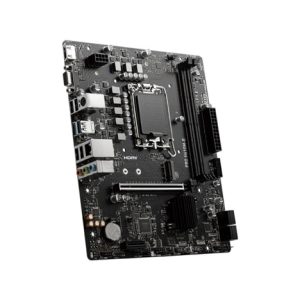

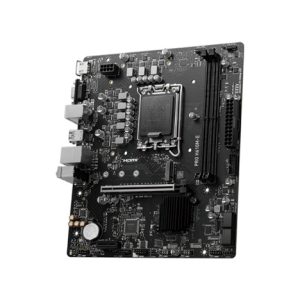

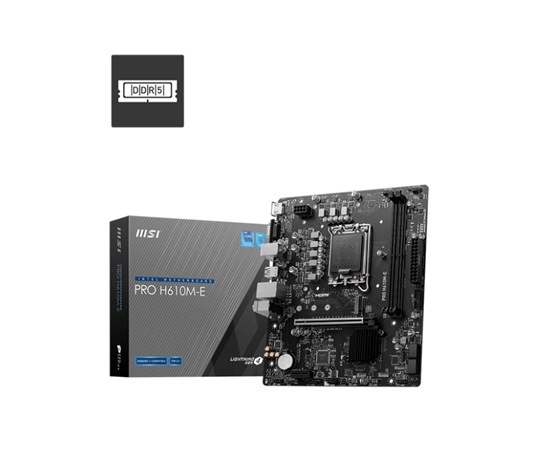

MSI PRO H610M-E

PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.

CPU

Support Intel Core™ 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors
LGA 1700

Chipset

INTEL H610

Memory

2x DDR5, Maximum Memory Capacity 96GB
Memory Support DDR5 5600 MHz (by JEDEC & POR)
Supports Intel XMP 3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory

Onboard Graphics

1x HDMI™
Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz*
1x VGA
Support VGA, maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Slot

1x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to (From Chipset)

Audio

Realtek ALC897 Codec
7.1-Channel High Definition Audio

Storage

1x M.2
M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G
* SATA5 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.

USB

4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)

LAN

Realtek RTL8111H Gigabit LAN

Internal I/O

1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports

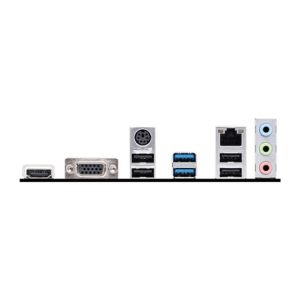

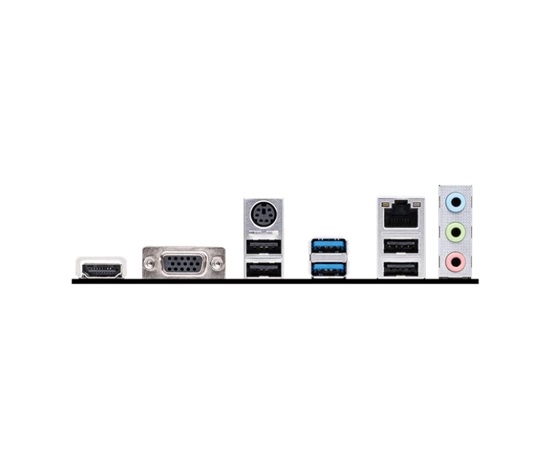

Back Panel I/O

1x HDMI
1x VGA
1x Keyboard / Mouse
2x USB 3.2 Gen 1 5Gbps (Type-A)
1x LAN port
3x Audio Connectors
4x USB 2.0

OPERATING SYSTEM

Support for Windows 11 64-bit, Windows 10 64-bit

Form Factor

mATX
200 x 236.16 mm

    Technické parametry

  • Formát základní desky: micro ATX
  • Chipset: Intel H610
  • Socket (patice): Socket 1700
  • Pro procesory: intel
  • Technologie paměti RAM: ddr5
  • Počet paměťových slotů: 2
  • M.2 slot: 1
  • SATA 3: 4
  • Podpora RAID: Bez RAID podpory
  • PCI Express x16: 1
  • PCI Express x1: 1
  • PCI: 0
  • LAN: 1Gbit/s
  • Bezdrátové připojení: bez
  • DisplayPort: 0
  • HDMI: 1
  • VGA: 1
  • DVI: 0
  • DisplayPort Type-C: 0
  • Počet Thunderbolt: 0
  • USB 2: 8
  • USB 3: 4
  • USB C: 0
  • Led Header: ano
  • TPM: ano
  • COM port: ano
  • 3.5mm Jack: ano
  • LPT port: ne

Další informace

Hmotnost 0,712 kg
Rozměry 26,4 × 35,4 × 6,2 cm

Logistic data

Typ balení Délka (cm) Šířka (cm) Výška (cm) Hmotnost (kg) Počet kusů v balení
Kusové 26.4 35.4 6.2 0.712 1
Krabice 60 54 30 16.05 20
Technické specifikace se mohou změnit bez předchozího upozornění. Obsah aktuálního balení se může lišit i v závislosti na datu prodeje. Obrázky mají pouze informativní charakter.
