MERCUSYS switch MS128GP (24xGbE,24xPoE+,2xGbE,2xSFP,295W)

Provedení:Rack mounted 19″; Funkce:PoE (Power over ethernet); Technologie:Gigabit ethernet + Gigabit optika; Počet portů LAN:24; Přenosová rychlost LAN (Mb/s):1000; Podporované standardy PoE:802.3af, 802.3at; PoE budget (W):295; Počet PoE Out portů:24; Počet SFP portů:2; Ventilátor; Maximální počet portů:28; Počet PoE+ portů:24

Vaše cena vč. DPH

3 817 Kč s DPH

Dostupnost: 2 skladem

Kategorie: , , Značka: MERCUSYS EAN: 6957939003791 Záruka: 36 Měsíc(ů)
Array ( [pa_status] => Array ( [name] => pa_status [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_brand] => Array ( [name] => pa_brand [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_provedeni] => Array ( [name] => pa_provedeni [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_funkce] => Array ( [name] => pa_funkce [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_technologie] => Array ( [name] => pa_technologie [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_pocet-portu-lan] => Array ( [name] => pa_pocet-portu-lan [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_prenosova-rychlost-lan-mb-s] => Array ( [name] => pa_prenosova-rychlost-lan-mb-s [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_podporovane-standardy-poe] => Array ( [name] => pa_podporovane-standardy-poe [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_poe-budget-w] => Array ( [name] => pa_poe-budget-w [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_pocet-poe-out-portu] => Array ( [name] => pa_pocet-poe-out-portu [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_pocet-sfp-portu] => Array ( [name] => pa_pocet-sfp-portu [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_ventilator] => Array ( [name] => pa_ventilator [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_maximalni-pocet-portu] => Array ( [name] => pa_maximalni-pocet-portu [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_pocet-poe-portu] => Array ( [name] => pa_pocet-poe-portu [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_prepinaci-kapacita-gb-s] => Array ( [name] => pa_prepinaci-kapacita-gb-s [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_management] => Array ( [name] => pa_management [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_vlastnosti-switche] => Array ( [name] => pa_vlastnosti-switche [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) )
Array ( [pa_status] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 10 [name] => pa_status [options] => Array ( [0] => 6082 ) [position] => 0 [visible] => [variation] => ) ) [pa_brand] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 11 [name] => pa_brand [options] => Array ( [0] => 6281 ) [position] => 0 [visible] => [variation] => ) ) [pa_provedeni] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 20 [name] => pa_provedeni [options] => Array ( [0] => 12524 ) [position] => 0 [visible] => [variation] => ) ) [pa_funkce] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 109 [name] => pa_funkce [options] => Array ( [0] => 15025 ) [position] => 0 [visible] => [variation] => ) ) [pa_technologie] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 21 [name] => pa_technologie [options] => Array ( [0] => 19885 ) [position] => 0 [visible] => [variation] => ) ) [pa_pocet-portu-lan] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 22 [name] => pa_pocet-portu-lan [options] => Array ( [0] => 6552 ) [position] => 0 [visible] => [variation] => ) ) [pa_prenosova-rychlost-lan-mb-s] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 23 [name] => pa_prenosova-rychlost-lan-mb-s [options] => Array ( [0] => 6555 ) [position] => 0 [visible] => [variation] => ) ) [pa_podporovane-standardy-poe] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 224 [name] => pa_podporovane-standardy-poe [options] => Array ( [0] => 12582 ) [position] => 0 [visible] => [variation] => ) ) [pa_poe-budget-w] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 333 [name] => pa_poe-budget-w [options] => Array ( [0] => 48609 ) [position] => 0 [visible] => [variation] => ) ) [pa_pocet-poe-out-portu] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 226 [name] => pa_pocet-poe-out-portu [options] => Array ( [0] => 7365 ) [position] => 0 [visible] => [variation] => ) ) [pa_pocet-sfp-portu] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 327 [name] => pa_pocet-sfp-portu [options] => Array ( [0] => 7231 ) [position] => 0 [visible] => [variation] => ) ) [pa_ventilator] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 24 [name] => pa_ventilator [options] => Array ( [0] => 6982 ) [position] => 0 [visible] => [variation] => ) ) [pa_maximalni-pocet-portu] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 27 [name] => pa_maximalni-pocet-portu [options] => Array ( [0] => 7924 ) [position] => 0 [visible] => [variation] => ) ) [pa_pocet-poe-portu] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 1069 [name] => pa_pocet-poe-portu [options] => Array ( [0] => 18002 ) [position] => 0 [visible] => [variation] => ) ) [pa_prepinaci-kapacita-gb-s] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 1256 [name] => pa_prepinaci-kapacita-gb-s [options] => Array ( [0] => 42825 ) [position] => 0 [visible] => [variation] => ) ) [pa_management] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 26 [name] => pa_management [options] => Array ( [0] => 6544 ) [position] => 0 [visible] => [variation] => ) ) [pa_vlastnosti-switche] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 227 [name] => pa_vlastnosti-switche [options] => Array ( [0] => 19806 ) [position] => 0 [visible] => [variation] => ) ) )
Rychlé doručení - vše skladem
Při objednání ve všední den do 16 hodin doručujeme druhý den.Více info
Doručení DPD, PPL na vámi zadanou adresu. V den dodání budete informování o doručení formou emailu a SMS zprávou ( je možné dodatečně změnit termín i místo dodání).

Popis

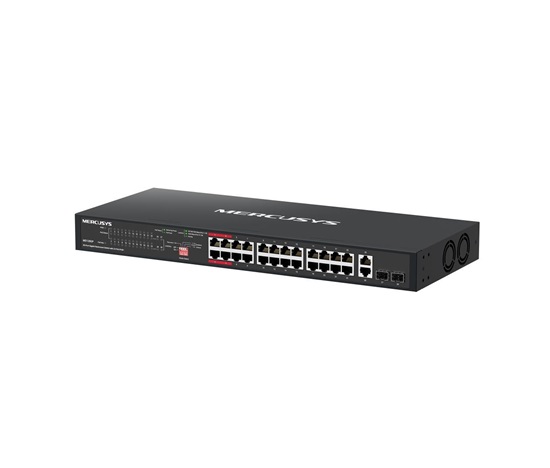

MERCUSYS switch MS128GP

28-Port Gigabit Rackmount Switch with 24-Port PoE+

  • Plně gigabitové porty: 24× Gigabitové PoE+ porty, 2× Gigabitové uplink porty a 2× Gigabitové SFP sloty
  • PoE+ s vysokým výkonem: Podpora napájení PoE až 30 W pro každý PoE port a 295 W pro všechny PoE porty.$^{*}$ Spolupráce se zařízeními PD kompatibilními s IEEE 802.3af/at
  • Dlouhý dosah až 250 m: Zvyšuje přenosovou vzdálenost PoE na 250 m pomocí režimu Extend.$^{**}$
  • Režim izolace (Isolation Mode): Jedno kliknutí k rozdělení provozu pro specifické porty pro stabilitu a zabezpečení
  • Prioritní režim (Priority Mode): Zaručuje kvalitu citlivých aplikací, jako je monitorování videa
  • Automatické obnovení PoE (PoE Auto Recovery): Automaticky restartuje vaše odpojená nebo nereagující zařízení napájená PoE
  • Plug and Play: Není vyžadována žádná konfigurace ani centrální správa

Stránky produktu:
https://www.mercusys.com/cz/product/details/ms128gp

Technické specifikace


Software
Transfer Method Store and Forward
Advanced Features • Compatible With IEEE 802.3at/af Compliant PDs
• Extend Mode (Up to 250m PoE power supply and data transmission)
• Priority Mode (Ports 1-4)
• Isolation Mode (Ports 1-12, 13-24)
• PoE Auto Recovery (Ports 1-24)
• MAC Address Auto-Learning And Auto-Aging
• IEEE802.3x Flow Control
• MAC Address Auto-Learning And Auto-Aging
• IEEE802.3x Flow Control
Hardware
Dimensions (W X D X H) 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)
PoE Ports • Standard: compatible with 802.3af/at PDs
• PoE Ports: Ports 1–24, up to 30 W per port
• PoE Power Budget: 295 W
Interfaces • 24× 10/100/1000 Mbps PoE+ RJ45 Ports
• 2× 10/100/1000 Mbps RJ45 Ports
• 2× Gigabit SFP Slots
Transmission Medium • 10BASE-T: 2-pair UTP/STP of Cat. 3 or above (?100 m)
• 100BASE-TX: 2-pair UTP/STP of Cat. 5 or above (?100 m)
• 1000BASE-T: 4-pair UTP/STP of Cat. 5e or above (?100 m)
• 1000BASE-X: MMF, SMF
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z, IEEE 802.3af, IEEE 802.3at
Fan Quantity 2 Fans
Physical Security Lock Yes
Switching Capacity 56 Gbps
LED • Power
• Link/Act
• PoE Status
• PoE Max
Mac Address Table 8 K
Max Power Consumption • 350.14 W (110V/60 Hz @ 25 °C, with 295 W PD connected)
• 336.58 W (220V/50 Hz @ 25 °C, with 295 W PD connected)
Max Heat Dissipation • 1193.98 BTU/hr (110V/60 Hz @ 25 °C, with 295 W PD connected)
• 1147.74 BTU/hr (220V/50 Hz @ 25 °C, with 295 W PD connected)
Others
Certifications CE,  RoHS
Package Contents • MS128GP
• Power Cord
• Installation Guide
• Mounting Brackets and Fittings
Environment • Operating Temperature: -10°C to 45°C (14°F to 113°F)
• Storage Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Humidity: 10% to 90% RH, non-condensing
• Storage Humidity: 5% to 90% RH, non-condensing

Další informace

Hmotnost 3,486 kg
Rozměry 53,5 × 27,8 × 8,4 cm

Logistic data

Typ balení Délka (cm) Šířka (cm) Výška (cm) Hmotnost (kg) Počet kusů v balení
Kusové 53.5 27.8 8.4 3.486 1
Technické specifikace se mohou změnit bez předchozího upozornění. Obsah aktuálního balení se může lišit i v závislosti na datu prodeje. Obrázky mají pouze informativní charakter.
