Popis

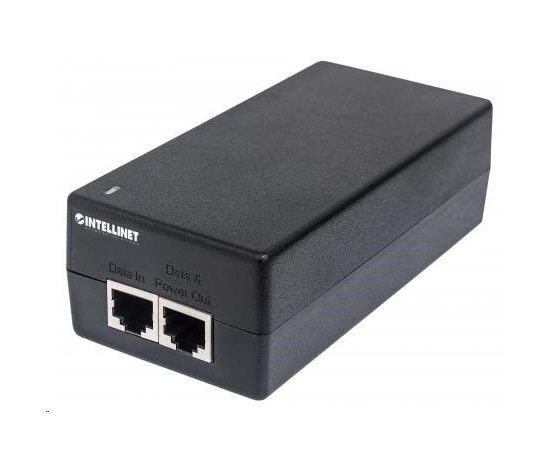

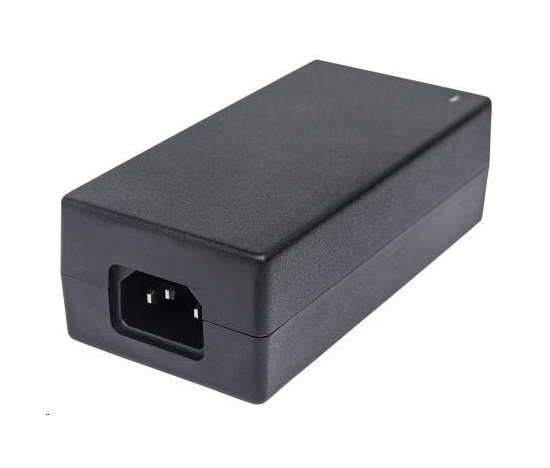

Normy -IEEE 802.3af (Power over Ethernet) -IEEE 802.3at (High-Power PoE+ Power over Ethernet) -IEEE 802.3bt (4 Pair Power over Ethernet, Level 3, 55 W) -IEEE 802.3 (10Base-T Ethernet) -IEEE 802.3ab (Gigabit Ethernet) -IEEE 802.3u (100Base-TX Fast Ethernet) -IEEE 802.3x (flow control for full duplex mode) General •Media support: – 100Base-TX Cat5 UTP/STP RJ45, 8 pin – 1000Base-T Cat5e UTP/STP RJ45, 8 pin •Ports: – One RJ45 10/100/1000 Mbps input port – One RJ45 10/100/1000 Mbps data and power output port •Protection functions: – Short circuit protection – Over current protection – Over voltage protection •PoE Pinout – Pin 1: DC (-) – Pin 2: DC (-) – Pin 3: DC (+) – Pin 4: DC (+) – Pin 5: DC (+) – Pin 6: DC (+) – Pin 7: DC (-) – Pin 8: DC (-) •Certifications: FCC Class B, CE LED •Dual-color power and PoE LED Power •Input: 100 – 240 V AC, 50 – 60 Hz •Output: 48 V DC, 1.25 A -Spotreba energie: 60 wattov (maximálne) Životné prostredie -Plastový kryt -Rozmery: 123 (D) x 61 (Š) x 40 (V) [mm] / 4.84 (D) x 2.4 (W) x 1.57 (H) [in] -Hmotnosť: 0.29 kg (0.64 libier.) -Prevádzková teplota: 0 – 40 °C (32 – 104 °F) -Prevádzková vlhkosť: 10 – 90 % relatívnej vlhkosti, nekondenzujúca -Teplota skladovania: -20 – 80 °C (-4 – 176 °F) Obsah balenia -Gigabit Ultra PoE Injector -Napájací kábel.
