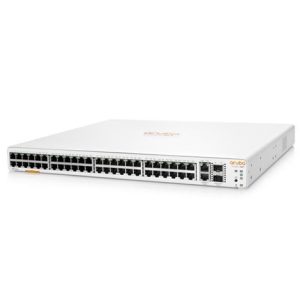

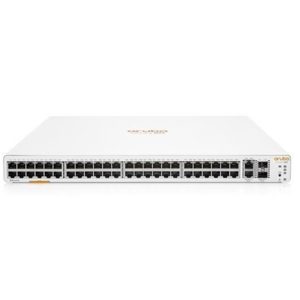

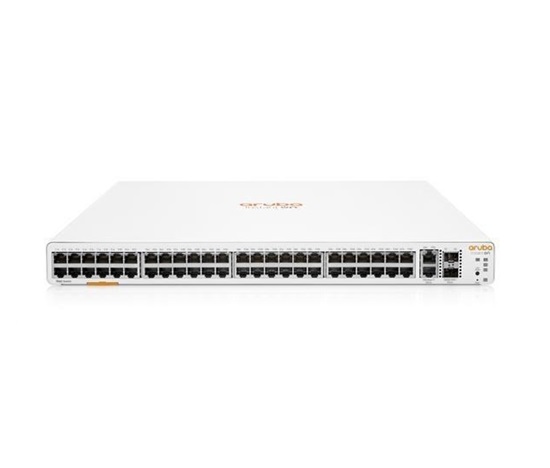

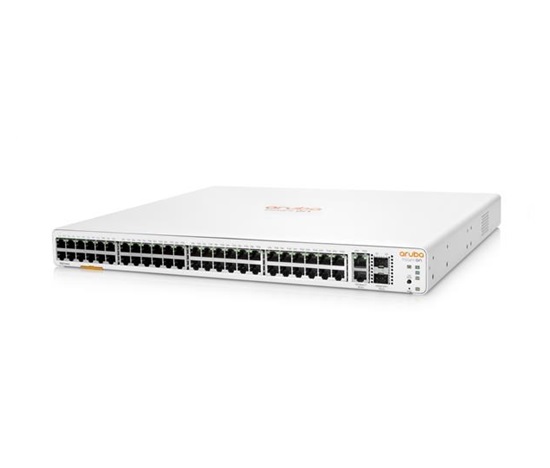

HPE Networking Instant On Switch 48p Gigabit 2p 10GBT 2p SFP+ 1960 (JL808A)

Provedení:Desktop, Rack mounted 19″; Funkce:QoS (Quality of service), VLAN (virtual local area network), DHCP snooping, Stohovatelnost, L2, Web management/Smart switch, VPN; Technologie:Gigabit Ethernet + 10 GbE porty; Počet portů LAN:48; Počet portů LAN:48; Přenosová rychlost LAN (Mb/s):131; Přenosová rychlost LAN (Mb/s):131; Počet SFP portů:4

Vaše cena vč. DPH

21 357 Kč s DPH

Dostupnost: 5 skladem

Kategorie: , , Značka: Hewlett Packard Enterprise EAN: 190017522616
Array ( [pa_brand] => Array ( [name] => pa_brand [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_status] => Array ( [name] => pa_status [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 0 ) [pa_provedeni] => Array ( [name] => pa_provedeni [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_funkce] => Array ( [name] => pa_funkce [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_technologie] => Array ( [name] => pa_technologie [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_pocet-portu-lan] => Array ( [name] => pa_pocet-portu-lan [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_prenosova-rychlost-lan-mb-s] => Array ( [name] => pa_prenosova-rychlost-lan-mb-s [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_pocet-sfp-portu] => Array ( [name] => pa_pocet-sfp-portu [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_pocet-portu-sfp28] => Array ( [name] => pa_pocet-portu-sfp28 [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_ventilator] => Array ( [name] => pa_ventilator [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_maximalni-pocet-portu] => Array ( [name] => pa_maximalni-pocet-portu [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_pocet-usb-2-0] => Array ( [name] => pa_pocet-usb-2-0 [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_management] => Array ( [name] => pa_management [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) )
Array ( [pa_brand] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 11 [name] => pa_brand [options] => Array ( [0] => 6110 ) [position] => 0 [visible] => [variation] => ) ) [pa_status] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 0 [name] => pa_status [options] => Array ( ) [position] => 0 [visible] => [variation] => ) ) [pa_provedeni] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 20 [name] => pa_provedeni [options] => Array ( [0] => 12524 ) [position] => 0 [visible] => [variation] => ) ) [pa_funkce] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 109 [name] => pa_funkce [options] => Array ( [0] => 10175 ) [position] => 0 [visible] => [variation] => ) ) [pa_technologie] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 21 [name] => pa_technologie [options] => Array ( [0] => 13015 ) [position] => 0 [visible] => [variation] => ) ) [pa_pocet-portu-lan] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 22 [name] => pa_pocet-portu-lan [options] => Array ( [0] => 8095 ) [position] => 0 [visible] => [variation] => ) ) [pa_prenosova-rychlost-lan-mb-s] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 23 [name] => pa_prenosova-rychlost-lan-mb-s [options] => Array ( [0] => 15437 ) [position] => 0 [visible] => [variation] => ) ) [pa_pocet-sfp-portu] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 327 [name] => pa_pocet-sfp-portu [options] => Array ( [0] => 7235 ) [position] => 0 [visible] => [variation] => ) ) [pa_pocet-portu-sfp28] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 330 [name] => pa_pocet-portu-sfp28 [options] => Array ( [0] => 15438 ) [position] => 0 [visible] => [variation] => ) ) [pa_ventilator] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 24 [name] => pa_ventilator [options] => Array ( [0] => 6982 ) [position] => 0 [visible] => [variation] => ) ) [pa_maximalni-pocet-portu] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 27 [name] => pa_maximalni-pocet-portu [options] => Array ( [0] => 7381 ) [position] => 0 [visible] => [variation] => ) ) [pa_pocet-usb-2-0] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 866 [name] => pa_pocet-usb-2-0 [options] => Array ( [0] => 9152 ) [position] => 0 [visible] => [variation] => ) ) [pa_management] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 26 [name] => pa_management [options] => Array ( [0] => 12673 ) [position] => 0 [visible] => [variation] => ) ) )
Rychlé doručení - vše skladem
Při objednání ve všední den do 16 hodin doručujeme druhý den.Více info
Doručení DPD, PPL na vámi zadanou adresu. V den dodání budete informování o doručení formou emailu a SMS zprávou ( je možné dodatečně změnit termín i místo dodání).

Popis

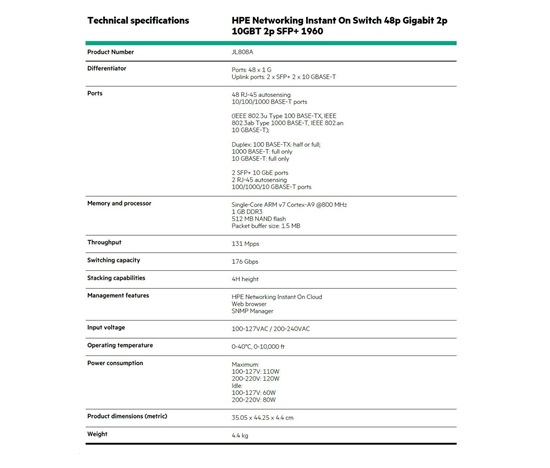

HPE Networking Instant On Switch 48p Gigabit 2p 10GBT 2p SFP+ 1960 (JL808A)

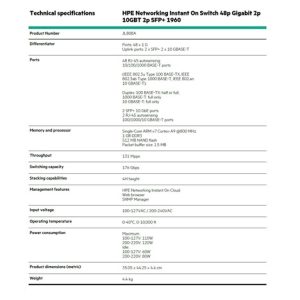

I/O ports and slots

48 RJ-45 autosensing 10/100/1000 Mbps ports

(IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only

2 SFP+ 10GbE ports 2 10GBASE-T ports

Dimensions

350.5(d) x 442.5(w) x 43.95(h) mm

Weight

9.8 lb (4.4 kg)

CPU

Single-Core ARM v7 Cortex-A9 @800MHz

100 Mb Latency

< 4.4 uSec

1000 Mb Latency

< 2.2 uSec

10000 Mb Latency

< 1.1 uSec

Throughput (Mpps)

131 Mpps

Capacity

176 Gbps

Routing Table size (# of static entries)

32 IPv4/IPv6

MAC Address table size (# of entries)

16,000 entries

Reliability MTBF (years)

109.4

Operating temperature

0-40°C, 0-10,000 ft

Operating relative humidity

15% to 95% @ 104°F (40°C) non-condensing

Nonoperating/Storage temperature

-40°F to 158°F (-40°C to 70°C) up to 15000 ft

Nonoperating/Storage relative humidity

15% to 90% @ 149°F (65°C) non-condensing

Altitude

up to 10,000 ft (3 km)

Acoustics1

LWAd = 2.9 Bel Notes1: 1 Acoustics measured in 23°C semi-anechoic chamber with a loading of 100% traffic and (for JL807A and JL809A) 50% PoE on all ports. Measured in accordance with ISO 7779. Declared in accordance with ECMA-109:2010. Values presented are the Declared A-Weighted Sound Power Level (LWAd) and the mean Bystander A-Weighted Sound Pressure Level (LpAm)

Electrical Characteristics

Frequency

50Hz/60Hz

AC voltage

100-127VAC / 200-240VAC

Current

1.1A/0.4A

Maximum power rating

100-127V: 110W 200-220V: 120W

Idle power

100-127V: 60W 200-220V: 80W

PoE power

–

Power Supply

Internal power supply

Safety

EN/IEC 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013

EN/IEC 62368-1, 2nd. & 3rd. Ed.

UL 62368-1, 2nd. & 3rd. Ed.

CAN/CSA C22.2 No. 62368-1, 2nd. & 3rd. Ed.

EN/IEC 60825-1:2014 Class 4

Emissions

EN 55032:2015/CISPR 32, Class A

FCC CFR 47 Part 15: 2018 Class A

ICES-003 Class A

VCCI Class A

CNS 13438 Class A

KN 32 Class A

AS/NZS CISPR 32 Class A

Generic

EN 55035, CISPR 35, KN35

EN

EN 55035, CISPR 35

ESD

EN/IEC 61000-4-2

Radiated

EN/IEC 61000-4-3

EFT/Burst

EN/IEC 61000-4-4

Surge

EN/IEC 61000-4-5

Conducted

EN/IEC 61000-4-6

Power frequency magnetic field

EN/IEC 61000-4-8

Voltage dips and interruptions

EN/IEC 61000-4-11

Harmonics

EN/IEC 61000-3-2

Flicker

EN /IEC 61000-3-3

Device Management

Aruba Instant On Cloud; Web browser; SNMP Manager

Mounting Positions and Supported Racking

  • Mounts in an EIA-standard 19 in. telco rack or equipment cabinet. 2-post rack kit included
  • Supports table-top mounting
  • Supports rack-mounting
  • Supports wall-mounting with ports facing either up or down
  • Supports under-table mounting using the brackets provided

Transceivers
  • Aruba Instant On 1G SFP LC SX 500m OM2 MMF Transceiver (R9D16A)
  • Aruba 1G SFP LC LX 10km SMF Transceiver (J4859D)
  • Aruba 1G SFP RJ45 T 100m Cat5e Transceiver (J8177D)
  • Aruba Instant On 10G SFP+ LC SR 300m OM3 MMF Transceiver (R9D18A)
  • Aruba 10G SFP+ LC LR 10km SMF Transceiver (J9151E)
  • Aruba 10G SFP+ to SFP+ 1m DAC (J9281D)
  • Aruba 10G SFP+ to SFP+ 3m DAC (J9283D)

Další informace

Hmotnost 9 kg
Rozměry 56,5 × 49,5 × 11,5 cm

Logistic data

Typ balení Délka (cm) Šířka (cm) Výška (cm) Hmotnost (kg) Počet kusů v balení
Kusové 56.5 49.5 11.5 9 1
Technické specifikace se mohou změnit bez předchozího upozornění. Obsah aktuálního balení se může lišit i v závislosti na datu prodeje. Obrázky mají pouze informativní charakter.
