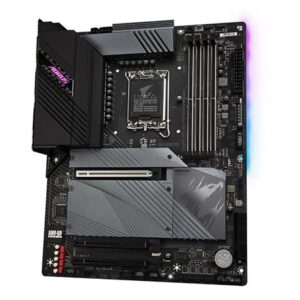

GIGABYTE MB Sc LGA1700 Z690 AORUS ELITE, Intel Z690, 4xDDR5, 1xDP, 1xHDMI

Formát základní desky:ATX; Chipset:Intel Z690; Socket (patice):Socket 1700; Pro procesory:Intel; Technologie paměti RAM:DDR5; Počet paměťových slotů:4; M.2 slot:4; SATA 3:6; Podpora RAID:0, 1, 5, 10; PCI Express x16:3; DisplayPort:1; HDMI:1; VGA:0; DVI:0; DisplayPort Type-C:0; TPM; 3.5mm Jack

Vaše cena vč. DPH

5 010 Kč s DPH

Dostupnost: Není skladem

Kategorie: , , Značka: Gigabyte EAN: 4719331828448 Záruka: 36 Měsíc(ů)
Array ( [pa_status] => Array ( [name] => pa_status [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_podpora-raid] => Array ( [name] => pa_podpora-raid [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_tpm] => Array ( [name] => pa_tpm [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_displayport-type-c] => Array ( [name] => pa_displayport-type-c [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_dvi] => Array ( [name] => pa_dvi [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_vga] => Array ( [name] => pa_vga [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_hdmi] => Array ( [name] => pa_hdmi [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_displayport] => Array ( [name] => pa_displayport [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_pci-express-x16] => Array ( [name] => pa_pci-express-x16 [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_sata-3] => Array ( [name] => pa_sata-3 [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_brand] => Array ( [name] => pa_brand [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_m-2-slot] => Array ( [name] => pa_m-2-slot [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_pocet-pametovych-slotu] => Array ( [name] => pa_pocet-pametovych-slotu [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_technologie-pameti-ram] => Array ( [name] => pa_technologie-pameti-ram [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_pro-procesory] => Array ( [name] => pa_pro-procesory [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_socket-patice] => Array ( [name] => pa_socket-patice [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_chipset] => Array ( [name] => pa_chipset [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_format-zakladni-desky] => Array ( [name] => pa_format-zakladni-desky [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_3-5mm-jack] => Array ( [name] => pa_3-5mm-jack [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) )
Array ( [pa_status] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 10 [name] => pa_status [options] => Array ( [0] => 6068 ) [position] => 0 [visible] => [variation] => ) ) [pa_brand] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 11 [name] => pa_brand [options] => Array ( [0] => 6148 ) [position] => 0 [visible] => [variation] => ) ) [pa_format-zakladni-desky] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 680 [name] => pa_format-zakladni-desky [options] => Array ( [0] => 7856 ) [position] => 0 [visible] => [variation] => ) ) [pa_chipset] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 678 [name] => pa_chipset [options] => Array ( [0] => 13623 ) [position] => 0 [visible] => [variation] => ) ) [pa_socket-patice] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 677 [name] => pa_socket-patice [options] => Array ( [0] => 13547 ) [position] => 0 [visible] => [variation] => ) ) [pa_pro-procesory] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 676 [name] => pa_pro-procesory [options] => Array ( [0] => 8033 ) [position] => 0 [visible] => [variation] => ) ) [pa_technologie-pameti-ram] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 165 [name] => pa_technologie-pameti-ram [options] => Array ( [0] => 9860 ) [position] => 0 [visible] => [variation] => ) ) [pa_pocet-pametovych-slotu] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 679 [name] => pa_pocet-pametovych-slotu [options] => Array ( [0] => 7855 ) [position] => 0 [visible] => [variation] => ) ) [pa_m-2-slot] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 691 [name] => pa_m-2-slot [options] => Array ( [0] => 9856 ) [position] => 0 [visible] => [variation] => ) ) [pa_sata-3] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 689 [name] => pa_sata-3 [options] => Array ( [0] => 7864 ) [position] => 0 [visible] => [variation] => ) ) [pa_podpora-raid] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 681 [name] => pa_podpora-raid [options] => Array ( [0] => 7858 ) [position] => 0 [visible] => [variation] => ) ) [pa_pci-express-x16] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 684 [name] => pa_pci-express-x16 [options] => Array ( [0] => 8211 ) [position] => 0 [visible] => [variation] => ) ) [pa_displayport] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 697 [name] => pa_displayport [options] => Array ( [0] => 8216 ) [position] => 0 [visible] => [variation] => ) ) [pa_hdmi] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 696 [name] => pa_hdmi [options] => Array ( [0] => 7871 ) [position] => 0 [visible] => [variation] => ) ) [pa_vga] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 694 [name] => pa_vga [options] => Array ( [0] => 7869 ) [position] => 0 [visible] => [variation] => ) ) [pa_dvi] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 695 [name] => pa_dvi [options] => Array ( [0] => 8215 ) [position] => 0 [visible] => [variation] => ) ) [pa_displayport-type-c] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 972 [name] => pa_displayport-type-c [options] => Array ( [0] => 9822 ) [position] => 0 [visible] => [variation] => ) ) [pa_tpm] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 702 [name] => pa_tpm [options] => Array ( [0] => 7988 ) [position] => 0 [visible] => [variation] => ) ) [pa_3-5mm-jack] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 692 [name] => pa_3-5mm-jack [options] => Array ( [0] => 7867 ) [position] => 0 [visible] => [variation] => ) ) )
Rychlé doručení - vše skladem
Při objednání ve všední den do 16 hodin doručujeme druhý den.Více info
Doručení DPD, PPL na vámi zadanou adresu. V den dodání budete informování o doručení formou emailu a SMS zprávou ( je možné dodatečně změnit termín i místo dodání).

Popis

Z690 AORUS ELITE

  • Supports 12th Gen Intel Core™ Series Processors
  • Dual Channel Non-ECC Unbuffered DDR5, 4 DIMMs
  • 16*+1+2 Twin Hybrid Phases Digital Power Design with 60A DrMOS and Tantalum Polymer Capacitor
  • DDR5 XTREME MEMORY Design with SMD DIMM and Shielded Memory Routing
  • Fully Covered Thermal Design with High Coverage MOSFET Heatsinks
  • AMP-UP Audio with ALC1220 and WIMA Audio Capacitors
  • Fast 2.5GbE LAN with Bandwidth Management
  • 4x Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Enlarged Thermal Guards
  • SuperSpeed USB 3.2 Gen2x2 TYPE-C delivers up to 20Gb/s transfer speeds
  • RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
  • Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
  • * 8+8 phases parallel power design

CPU

LGA1700 socket: Support for 13th Generation Intel Core™ Processors and 12th Generation Intel Core™, Pentium Gold and Celeron Processors*
L3 cache varies with CPU
* Please refer to “CPU Support List” for more information.

Chipset

Intel Z690 Express Chipset

Memory

Support for DDR5 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MHz memory modules
4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer “Memory Support List” for more information.)

Onboard Graphics

Integrated Graphics Processor-Intel HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports.
1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3
(Graphics specifications may vary depending on CPU support.)

Audio

Realtek ALC1220-VB CODEC
* The back panel line out jack supports DSD audio.
High Definition Audio
2-channel analog output
Support for S/PDIF Out
7.1-channel digital signals
* Actual output of digital signals may vary depending on the playback content and software used, and an external DAC is required.

LAN

Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Expansion Slots

1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
(The PCIEX16 slot conforms to PCI Express 5.0 standard.)
2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2)
(The PCIEX4 slots conform to PCI Express 3.0 standard.)

Storage Interface

CPU:
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2Q_SB/M2P_SB)
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10
* Refer to “2-7 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.

Intel Optane™ Memory Ready
* System acceleration with Intel Optane™ Memory can only be enabled on the M.2 connectors supported by the Chipset.

USB

Chipset:
1 x USB Type-C port on the back panel, with USB 3.2 Gen 2×2 support
1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header
2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
Chipset+2 USB 2.0 Hub:
8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

Internal I/O Connectors

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan headers
1 x system fan/water cooling pump header
2 x addressable LED strip headers
2 x RGB LED strip headers
4 x M.2 Socket 3 connectors
6 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
2 x Thunderbolt™ add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x reset button
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper
*All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

Back Panel Connectors

1 x USB Type-C port, with USB 3.2 Gen 2×2 support
2 x USB 3.2 Gen 2 Type-A ports (red)
3 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x HDMI port
1 x DisplayPort
1 x RJ-45 port
1 x optical S/PDIF Out connector
2 x audio jacks

I/O Controller

iTE I/O Controller Chip

H/W Monitoring

Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

BIOS

1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
EasyTune
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install

Bundled Software

Norton Internet Security (OEM version)
Realtek Gaming LAN Bandwidth Control Utility

Operating System

Support for Windows 11 64-bit
Support for Windows 10 64-bit

Form Factor

ATX Form Factor; 30.5cm x 24.4cm

    Technické parametry

  • Formát základní desky: ATX
  • Chipset: Intel Z690
  • Socket (patice): Socket 1700
  • Pro procesory: intel
  • Technologie paměti RAM: ddr5
  • Počet paměťových slotů: 4
  • M.2 slot: 4
  • SATA 3: 6
  • Podpora RAID: 10
  • PCI Express x16: 3
  • DisplayPort: 1
  • HDMI: 1
  • VGA: 0
  • DVI: 0
  • DisplayPort Type-C: 0
  • TPM: ano
  • 3.5mm Jack: ano

Další informace

Hmotnost 2,094 kg
Rozměry 34,4 × 32,3 × 8,5 cm
