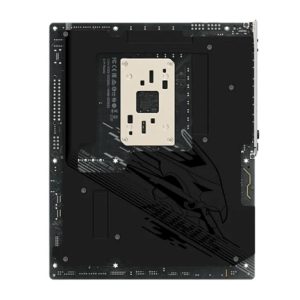

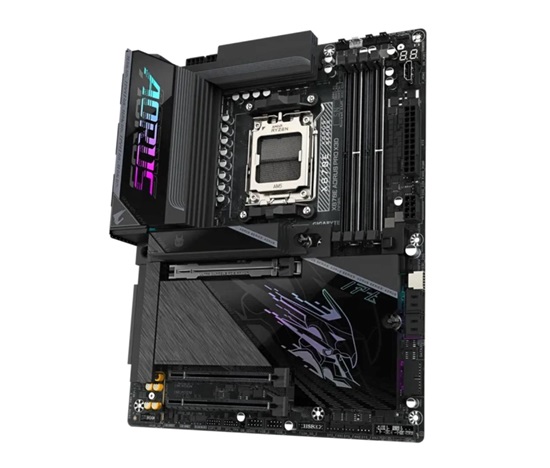

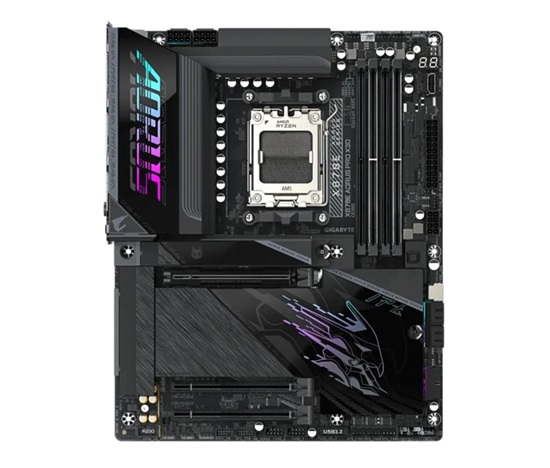

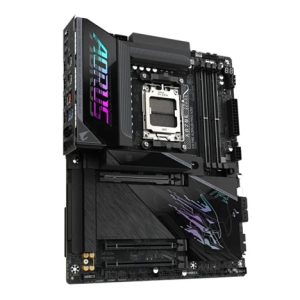

GIGABYTE MB Sc AM5 X870E A PRO X, AMD X870E, 4xDDR5, 2xUSB-C, 2xHDMI, Wifi, ATX

Formát základní desky:ATX; Chipset:AMD X870; Socket (patice):Socket AM5 (LGA 1718); Pro procesory:AMD; Technologie paměti RAM:DDR5; Počet paměťových slotů:4; M.2 slot:4; SATA 3:4; Podpora RAID:0, 1, 10; PCI Express x16:3; PCI Express x8:0; PCI Express x1:0; PCI:0; LAN:2.5Gbit/s; Bezdrátové připojení:WiFi + Bluetooth; DisplayPort:0; HDMI:2; VGA:0; DVI:0

Vaše cena vč. DPH

9 750 Kč s DPH

Dostupnost: 19 skladem

Kategorie: , , Značka: Gigabyte EAN: 4719331878603 Záruka: 36 Měsíc(ů)
Array ( [pa_brand] => Array ( [name] => pa_brand [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_status] => Array ( [name] => pa_status [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 0 ) [pa_format-zakladni-desky] => Array ( [name] => pa_format-zakladni-desky [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_chipset] => Array ( [name] => pa_chipset [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_socket-patice] => Array ( [name] => pa_socket-patice [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_pro-procesory] => Array ( [name] => pa_pro-procesory [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_technologie-pameti-ram] => Array ( [name] => pa_technologie-pameti-ram [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_pocet-pametovych-slotu] => Array ( [name] => pa_pocet-pametovych-slotu [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_m-2-slot] => Array ( [name] => pa_m-2-slot [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_sata-3] => Array ( [name] => pa_sata-3 [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_podpora-raid] => Array ( [name] => pa_podpora-raid [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_pci-express-x16] => Array ( [name] => pa_pci-express-x16 [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_pci-express-x8] => Array ( [name] => pa_pci-express-x8 [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_pci-express-x1] => Array ( [name] => pa_pci-express-x1 [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_pci] => Array ( [name] => pa_pci [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_lan] => Array ( [name] => pa_lan [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_bezdratove-pripojeni] => Array ( [name] => pa_bezdratove-pripojeni [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_displayport] => Array ( [name] => pa_displayport [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_hdmi] => Array ( [name] => pa_hdmi [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_vga] => Array ( [name] => pa_vga [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_dvi] => Array ( [name] => pa_dvi [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_displayport-type-c] => Array ( [name] => pa_displayport-type-c [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_pocet-thunderbolt] => Array ( [name] => pa_pocet-thunderbolt [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_usb-2] => Array ( [name] => pa_usb-2 [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_usb-3] => Array ( [name] => pa_usb-3 [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_usb-c] => Array ( [name] => pa_usb-c [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_3-5mm-jack] => Array ( [name] => pa_3-5mm-jack [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_led-header] => Array ( [name] => pa_led-header [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_tpm] => Array ( [name] => pa_tpm [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_com-port] => Array ( [name] => pa_com-port [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_lpt-port] => Array ( [name] => pa_lpt-port [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) )
Array ( [pa_brand] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 11 [name] => pa_brand [options] => Array ( [0] => 6148 ) [position] => 0 [visible] => [variation] => ) ) [pa_status] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 0 [name] => pa_status [options] => Array ( ) [position] => 0 [visible] => [variation] => ) ) [pa_format-zakladni-desky] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 680 [name] => pa_format-zakladni-desky [options] => Array ( [0] => 7856 ) [position] => 0 [visible] => [variation] => ) ) [pa_chipset] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 678 [name] => pa_chipset [options] => Array ( [0] => 29144 ) [position] => 0 [visible] => [variation] => ) ) [pa_socket-patice] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 677 [name] => pa_socket-patice [options] => Array ( [0] => 14059 ) [position] => 0 [visible] => [variation] => ) ) [pa_pro-procesory] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 676 [name] => pa_pro-procesory [options] => Array ( [0] => 7852 ) [position] => 0 [visible] => [variation] => ) ) [pa_technologie-pameti-ram] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 165 [name] => pa_technologie-pameti-ram [options] => Array ( [0] => 9860 ) [position] => 0 [visible] => [variation] => ) ) [pa_pocet-pametovych-slotu] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 679 [name] => pa_pocet-pametovych-slotu [options] => Array ( [0] => 7855 ) [position] => 0 [visible] => [variation] => ) ) [pa_m-2-slot] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 691 [name] => pa_m-2-slot [options] => Array ( [0] => 9856 ) [position] => 0 [visible] => [variation] => ) ) [pa_sata-3] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 689 [name] => pa_sata-3 [options] => Array ( [0] => 7983 ) [position] => 0 [visible] => [variation] => ) ) [pa_podpora-raid] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 681 [name] => pa_podpora-raid [options] => Array ( [0] => 7858 ) [position] => 0 [visible] => [variation] => ) ) [pa_pci-express-x16] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 684 [name] => pa_pci-express-x16 [options] => Array ( [0] => 8211 ) [position] => 0 [visible] => [variation] => ) ) [pa_pci-express-x8] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 1190 [name] => pa_pci-express-x8 [options] => Array ( [0] => 22376 ) [position] => 0 [visible] => [variation] => ) ) [pa_pci-express-x1] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 685 [name] => pa_pci-express-x1 [options] => Array ( [0] => 8220 ) [position] => 0 [visible] => [variation] => ) ) [pa_pci] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 690 [name] => pa_pci [options] => Array ( [0] => 7865 ) [position] => 0 [visible] => [variation] => ) ) [pa_lan] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 693 [name] => pa_lan [options] => Array ( [0] => 15730 ) [position] => 0 [visible] => [variation] => ) ) [pa_bezdratove-pripojeni] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 698 [name] => pa_bezdratove-pripojeni [options] => Array ( [0] => 13321 ) [position] => 0 [visible] => [variation] => ) ) [pa_displayport] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 697 [name] => pa_displayport [options] => Array ( [0] => 7872 ) [position] => 0 [visible] => [variation] => ) ) [pa_hdmi] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 696 [name] => pa_hdmi [options] => Array ( [0] => 9254 ) [position] => 0 [visible] => [variation] => ) ) [pa_vga] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 694 [name] => pa_vga [options] => Array ( [0] => 7869 ) [position] => 0 [visible] => [variation] => ) ) [pa_dvi] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 695 [name] => pa_dvi [options] => Array ( [0] => 8215 ) [position] => 0 [visible] => [variation] => ) ) [pa_displayport-type-c] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 972 [name] => pa_displayport-type-c [options] => Array ( [0] => 9822 ) [position] => 0 [visible] => [variation] => ) ) [pa_pocet-thunderbolt] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 1125 [name] => pa_pocet-thunderbolt [options] => Array ( [0] => 18261 ) [position] => 0 [visible] => [variation] => ) ) [pa_usb-2] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 686 [name] => pa_usb-2 [options] => Array ( [0] => 8212 ) [position] => 0 [visible] => [variation] => ) ) [pa_usb-3] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 687 [name] => pa_usb-3 [options] => Array ( [0] => 8213 ) [position] => 0 [visible] => [variation] => ) ) [pa_usb-c] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 688 [name] => pa_usb-c [options] => Array ( [0] => 24035 ) [position] => 0 [visible] => [variation] => ) ) [pa_3-5mm-jack] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 692 [name] => pa_3-5mm-jack [options] => Array ( [0] => 7867 ) [position] => 0 [visible] => [variation] => ) ) [pa_led-header] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 699 [name] => pa_led-header [options] => Array ( [0] => 7874 ) [position] => 0 [visible] => [variation] => ) ) [pa_tpm] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 702 [name] => pa_tpm [options] => Array ( [0] => 7988 ) [position] => 0 [visible] => [variation] => ) ) [pa_com-port] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 700 [name] => pa_com-port [options] => Array ( [0] => 8224 ) [position] => 0 [visible] => [variation] => ) ) [pa_lpt-port] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 701 [name] => pa_lpt-port [options] => Array ( [0] => 7876 ) [position] => 0 [visible] => [variation] => ) ) )
Rychlé doručení - vše skladem
Při objednání ve všední den do 16 hodin doručujeme druhý den.Více info
Doručení DPD, PPL na vámi zadanou adresu. V den dodání budete informování o doručení formou emailu a SMS zprávou ( je možné dodatečně změnit termín i místo dodání).

Popis

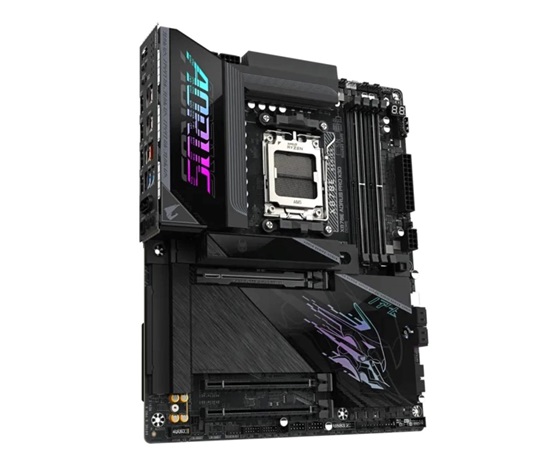

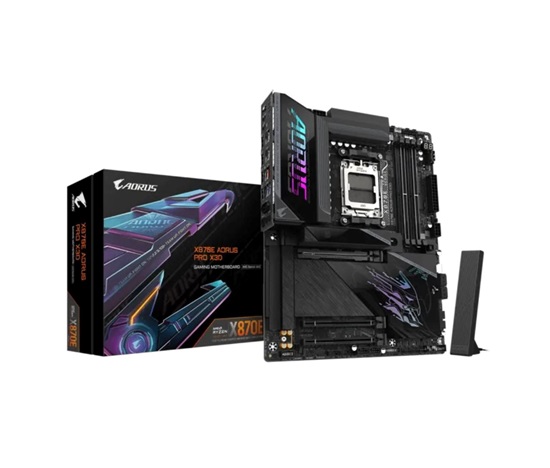

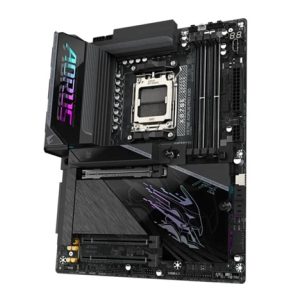

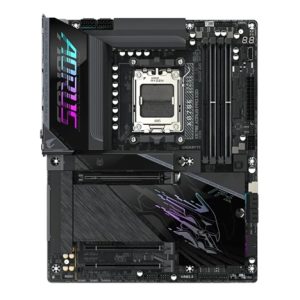

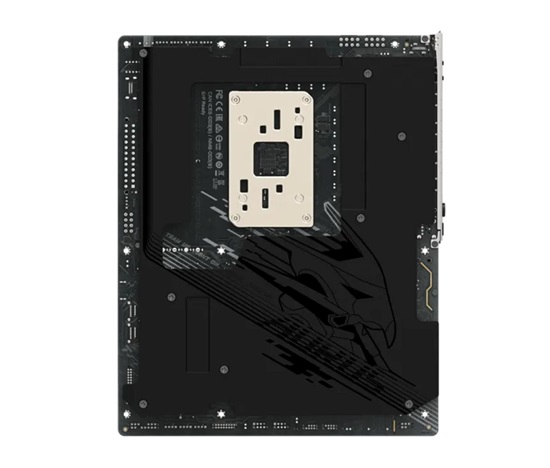

GIGABYTE AM5 X870E AORUS PRO X3D

CPU

AMD Socket AM5, support for:

AMD Ryzen™ 9000 Series Processors

AMD Ryzen™ 8000 Series Processors

AMD Ryzen™ 7000 Series Processors

(Go to GIGABYTE’s website for the latest CPU support list.)

Chipset

AMD X870E

Memory

Support for DDR5:

9000(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8200(O.C) / 8000(O.C)

7800(O.C) / 7600(O.C) / 7200(O.C) / 7000(O.C) / 6800(O.C) / 6600(O.C)

6400(O.C) / 6200(O.C) / 6000(O.C) / 5600(O.C) / 5200 / 4800 MT/s

4 x DDR5 DIMM sockets supporting up to 256 GB

Dual channel memory architecture

Support for non-ECC Un-buffered DIMM

Support for AMD EXPO™ and XMP memory modules

(Memory support may vary depending on CPU configuration.)

Onboard Graphics

Integrated AMD Radeon™ Graphics support + ASMedia USB4 Controller:

2 x USB4 Type-C ports (DisplayPort, max 3840×2160@240 Hz)

Support for DisplayPort 1.4 and HDR

1 x HDMI port (max 4096×2160@60 Hz)

Support for HDMI 2.1, HDCP 2.3, HDR

1 x front HDMI port (max 1920×1080@30 Hz)

(Graphics specs vary by CPU)

Audio

Realtek ALC1220 CODEC

High Definition Audio 2/4/5.1/7.1-channel

Support for S/PDIF Out

Back panel line out supports DSD audio

LAN

Realtek 5GbE LAN chip

Wireless Communication

Qualcomm Wi-Fi 7 QCNCM865

Supports 2.4/5/6 GHz bands

Bluetooth 5.4

Support for 802.11be (Wi-Fi 7)

(Requires Windows 11 for full functionality)

Expansion Slots

1 x PCIe x16 (CPU):

PCIe 5.0 x16 (Ryzen 9000/7000)

PCIe 4.0 x8 (Ryzen 8000 Phoenix 1)

PCIe 4.0 x4 (Ryzen 8000 Phoenix 2)

Chipset:

1 x PCIe 4.0 x4

1 x PCIe 3.0 x2

Storage Interface

1 x M.2 (CPU, PCIe 5.0/4.0 depending on CPU)

1 x M.2 (shared with USB4 controller)

2 x M.2 (Chipset, PCIe 4.0)

4 x SATA 6Gb/s

RAID 0/1/5/10 support (NVMe)

RAID 0/1/10 support (SATA)

USB

2 x USB4 Type-C (rear)

1 x USB-C (USB 3.2 Gen 2)

1 x USB-C (USB 3.2 Gen 2×2, internal, fast charging)

5 x USB 3.2 Gen 2 Type-A (rear)

3 x USB 3.2 Gen 1 (rear)

Multiple internal USB headers

Internal I/O Connectors

24-pin ATX power connector

2 x 8-pin ATX 12V power

PCIe power connector

CPU & system fan headers

RGB headers

M.2 & SATA connectors

USB headers

Front panel & audio headers

TPM header

Temperature sensors

Clear CMOS jumper

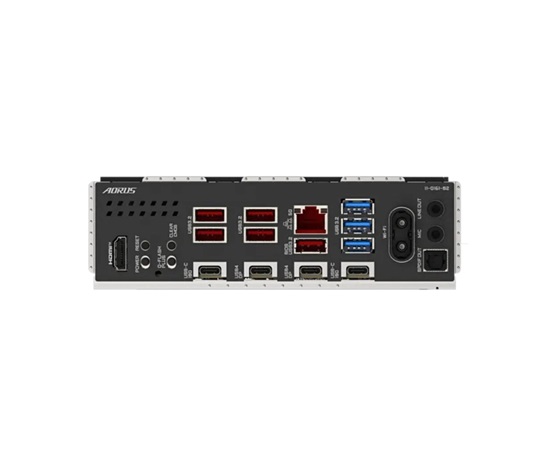

Back Panel Connectors

1 x HDMI

Reset, Power, Clear CMOS buttons

Q-Flash Plus button

5 x USB 3.2 Gen 2 Type-A

2 x USB-C (Gen 2)

2 x USB4 Type-C

1 x RJ-45

3 x USB 3.2 Gen 1

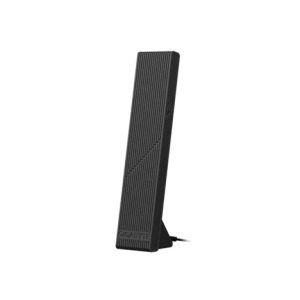

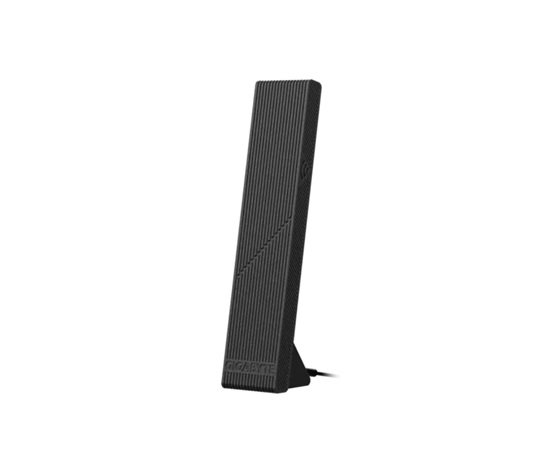

2 x antenna connectors

Audio jacks + S/PDIF Out

I/O Controller

iTE I/O Controller Chip

H/W Monitoring

Voltage, temperature, fan speed detection

Water cooling flow detection

Fan fail warning

Noise detection

BIOS

512 Mbit flash

AMI UEFI BIOS

Unique Features

GIGABYTE Control Center (GCC)

Q-Flash / Q-Flash Plus

Smart Backup

Bundled Software

Norton Internet Security (OEM)

Operating System

Windows 11 64-bit

Form Factor

ATX Form Factor

30.5 cm x 24.4 cm

    Technické parametry

  • Formát základní desky: ATX
  • Chipset: AMD X870
  • Socket (patice): Socket AM5 (LGA 1718)
  • Pro procesory: amd
  • Technologie paměti RAM: ddr5
  • Počet paměťových slotů: 4
  • M.2 slot: 4
  • SATA 3: 4
  • Podpora RAID: 10
  • PCI Express x16: 3
  • PCI Express x8: 0
  • PCI Express x1: 0
  • PCI: 0
  • LAN: 2.5Gbit/s
  • Bezdrátové připojení: WiFi + Bluetooth
  • DisplayPort: 0
  • HDMI: 2
  • VGA: 0
  • DVI: 0
  • DisplayPort Type-C: 0
  • Počet Thunderbolt: 2
  • USB 2: 4
  • USB 3: 8
  • USB C: 4
  • 3.5mm Jack: ano
  • Led Header: ano
  • TPM: ano
  • COM port: ne
  • LPT port: ne

Další informace

Hmotnost 3,73 kg
Rozměry 31,3 × 34,1 × 9,9 cm

Logistic data

Typ balení Délka (cm) Šířka (cm) Výška (cm) Hmotnost (kg) Počet kusů v balení
Kusové 31.3 34.1 9.9 3.73 1
Krabice 36 31 41 12.87 3
Technické specifikace se mohou změnit bez předchozího upozornění. Obsah aktuálního balení se může lišit i v závislosti na datu prodeje. Obrázky mají pouze informativní charakter.
