GIGABYTE MB Sc AM4 A520M DS3H V2, AMD A520, 4xDDR4, 1xHDMI, 1xDP, mATX

Formát základní desky:micro ATX; Chipset:AMD A520; Socket (patice):Socket AM4; Pro procesory:AMD; Technologie paměti RAM:DDR4; Počet paměťových slotů:4; M.2 slot:1; SATA 3:4; Podpora RAID:0, 1, 10; PCI Express x16:1; PCI Express x8:0; PCI Express x1:1; PCI:0; LAN:1Gbit/s; Bezdrátové připojení:bez; DisplayPort:1; HDMI:1; VGA:0; DVI:0; DisplayPort Type-C:0

Vaše cena vč. DPH

1 452 Kč s DPH

Dostupnost: Není skladem

Kategorie: , , Značka: Gigabyte EAN: 4719331854690 Záruka: 36 Měsíc(ů)
Array ( [pa_brand] => Array ( [name] => pa_brand [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_status] => Array ( [name] => pa_status [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 0 ) [pa_format-zakladni-desky] => Array ( [name] => pa_format-zakladni-desky [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_chipset] => Array ( [name] => pa_chipset [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_socket-patice] => Array ( [name] => pa_socket-patice [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_pro-procesory] => Array ( [name] => pa_pro-procesory [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_technologie-pameti-ram] => Array ( [name] => pa_technologie-pameti-ram [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_pocet-pametovych-slotu] => Array ( [name] => pa_pocet-pametovych-slotu [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_m-2-slot] => Array ( [name] => pa_m-2-slot [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_sata-3] => Array ( [name] => pa_sata-3 [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_podpora-raid] => Array ( [name] => pa_podpora-raid [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_pci-express-x16] => Array ( [name] => pa_pci-express-x16 [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_pci-express-x8] => Array ( [name] => pa_pci-express-x8 [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_pci-express-x1] => Array ( [name] => pa_pci-express-x1 [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_pci] => Array ( [name] => pa_pci [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_lan] => Array ( [name] => pa_lan [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_bezdratove-pripojeni] => Array ( [name] => pa_bezdratove-pripojeni [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_displayport] => Array ( [name] => pa_displayport [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_hdmi] => Array ( [name] => pa_hdmi [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_vga] => Array ( [name] => pa_vga [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_dvi] => Array ( [name] => pa_dvi [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_displayport-type-c] => Array ( [name] => pa_displayport-type-c [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_pocet-thunderbolt] => Array ( [name] => pa_pocet-thunderbolt [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_usb-2] => Array ( [name] => pa_usb-2 [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_usb-3] => Array ( [name] => pa_usb-3 [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_usb-c] => Array ( [name] => pa_usb-c [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_3-5mm-jack] => Array ( [name] => pa_3-5mm-jack [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_tpm] => Array ( [name] => pa_tpm [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_com-port] => Array ( [name] => pa_com-port [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_lpt-port] => Array ( [name] => pa_lpt-port [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_led-header] => Array ( [name] => pa_led-header [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) )
Array ( [pa_brand] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 11 [name] => pa_brand [options] => Array ( [0] => 6148 ) [position] => 0 [visible] => [variation] => ) ) [pa_status] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 0 [name] => pa_status [options] => Array ( ) [position] => 0 [visible] => [variation] => ) ) [pa_format-zakladni-desky] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 680 [name] => pa_format-zakladni-desky [options] => Array ( [0] => 12851 ) [position] => 0 [visible] => [variation] => ) ) [pa_chipset] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 678 [name] => pa_chipset [options] => Array ( [0] => 16364 ) [position] => 0 [visible] => [variation] => ) ) [pa_socket-patice] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 677 [name] => pa_socket-patice [options] => Array ( [0] => 12849 ) [position] => 0 [visible] => [variation] => ) ) [pa_pro-procesory] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 676 [name] => pa_pro-procesory [options] => Array ( [0] => 7852 ) [position] => 0 [visible] => [variation] => ) ) [pa_technologie-pameti-ram] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 165 [name] => pa_technologie-pameti-ram [options] => Array ( [0] => 7069 ) [position] => 0 [visible] => [variation] => ) ) [pa_pocet-pametovych-slotu] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 679 [name] => pa_pocet-pametovych-slotu [options] => Array ( [0] => 7855 ) [position] => 0 [visible] => [variation] => ) ) [pa_m-2-slot] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 691 [name] => pa_m-2-slot [options] => Array ( [0] => 7866 ) [position] => 0 [visible] => [variation] => ) ) [pa_sata-3] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 689 [name] => pa_sata-3 [options] => Array ( [0] => 7983 ) [position] => 0 [visible] => [variation] => ) ) [pa_podpora-raid] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 681 [name] => pa_podpora-raid [options] => Array ( [0] => 7858 ) [position] => 0 [visible] => [variation] => ) ) [pa_pci-express-x16] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 684 [name] => pa_pci-express-x16 [options] => Array ( [0] => 7979 ) [position] => 0 [visible] => [variation] => ) ) [pa_pci-express-x8] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 1190 [name] => pa_pci-express-x8 [options] => Array ( [0] => 22376 ) [position] => 0 [visible] => [variation] => ) ) [pa_pci-express-x1] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 685 [name] => pa_pci-express-x1 [options] => Array ( [0] => 8037 ) [position] => 0 [visible] => [variation] => ) ) [pa_pci] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 690 [name] => pa_pci [options] => Array ( [0] => 7865 ) [position] => 0 [visible] => [variation] => ) ) [pa_lan] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 693 [name] => pa_lan [options] => Array ( [0] => 12958 ) [position] => 0 [visible] => [variation] => ) ) [pa_bezdratove-pripojeni] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 698 [name] => pa_bezdratove-pripojeni [options] => Array ( [0] => 7873 ) [position] => 0 [visible] => [variation] => ) ) [pa_displayport] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 697 [name] => pa_displayport [options] => Array ( [0] => 8216 ) [position] => 0 [visible] => [variation] => ) ) [pa_hdmi] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 696 [name] => pa_hdmi [options] => Array ( [0] => 7871 ) [position] => 0 [visible] => [variation] => ) ) [pa_vga] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 694 [name] => pa_vga [options] => Array ( [0] => 7869 ) [position] => 0 [visible] => [variation] => ) ) [pa_dvi] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 695 [name] => pa_dvi [options] => Array ( [0] => 8215 ) [position] => 0 [visible] => [variation] => ) ) [pa_displayport-type-c] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 972 [name] => pa_displayport-type-c [options] => Array ( [0] => 9822 ) [position] => 0 [visible] => [variation] => ) ) [pa_pocet-thunderbolt] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 1125 [name] => pa_pocet-thunderbolt [options] => Array ( [0] => 17979 ) [position] => 0 [visible] => [variation] => ) ) [pa_usb-2] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 686 [name] => pa_usb-2 [options] => Array ( [0] => 7861 ) [position] => 0 [visible] => [variation] => ) ) [pa_usb-3] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 687 [name] => pa_usb-3 [options] => Array ( [0] => 7981 ) [position] => 0 [visible] => [variation] => ) ) [pa_usb-c] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 688 [name] => pa_usb-c [options] => Array ( [0] => 7982 ) [position] => 0 [visible] => [variation] => ) ) [pa_3-5mm-jack] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 692 [name] => pa_3-5mm-jack [options] => Array ( [0] => 7867 ) [position] => 0 [visible] => [variation] => ) ) [pa_tpm] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 702 [name] => pa_tpm [options] => Array ( [0] => 7988 ) [position] => 0 [visible] => [variation] => ) ) [pa_com-port] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 700 [name] => pa_com-port [options] => Array ( [0] => 8224 ) [position] => 0 [visible] => [variation] => ) ) [pa_lpt-port] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 701 [name] => pa_lpt-port [options] => Array ( [0] => 7876 ) [position] => 0 [visible] => [variation] => ) ) [pa_led-header] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 699 [name] => pa_led-header [options] => Array ( [0] => 7986 ) [position] => 0 [visible] => [variation] => ) ) )
Rychlé doručení - vše skladem
Při objednání ve všední den do 16 hodin doručujeme druhý den.Více info
Doručení DPD, PPL na vámi zadanou adresu. V den dodání budete informování o doručení formou emailu a SMS zprávou ( je možné dodatečně změnit termín i místo dodání).

Popis

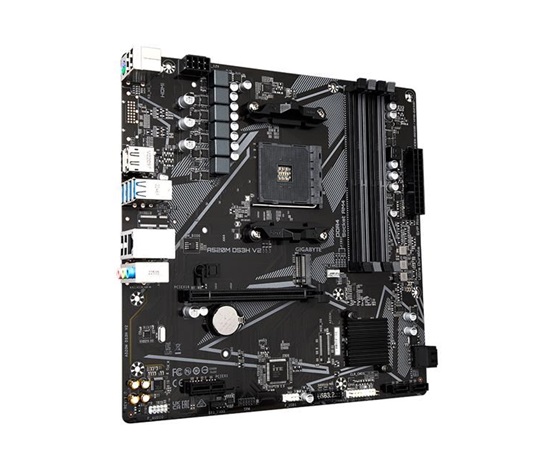

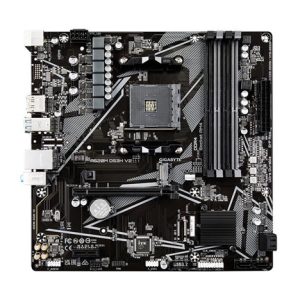

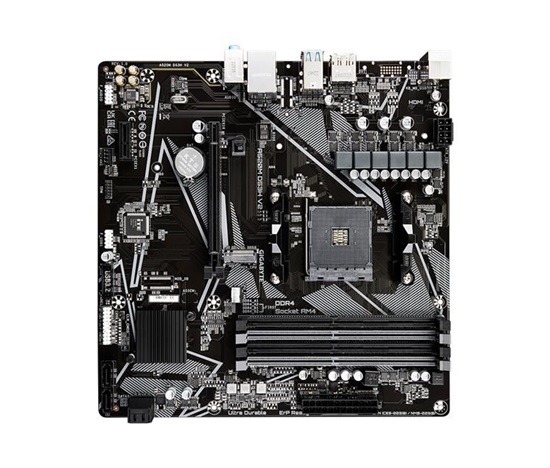

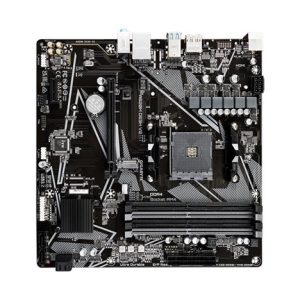

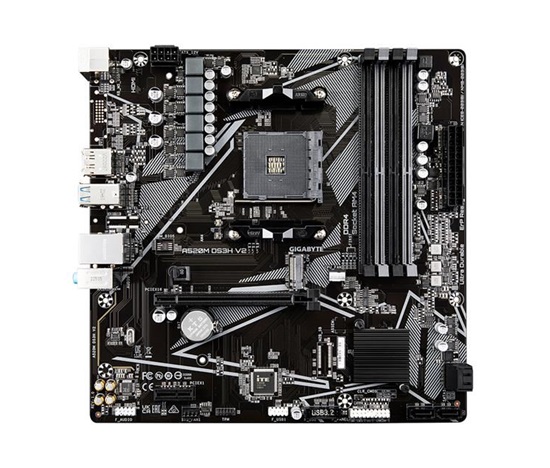

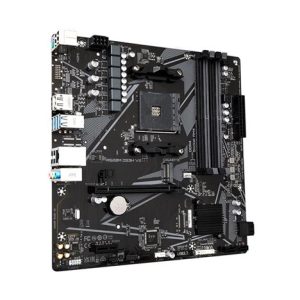

GIGABYTE A520M DS3H V2

  • Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
  • Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
  • Ultra Durable™ PCIe 3.0 x16 Slot
  • NVMe PCIe 3.0 M.2 Connectors
  • High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
  • GbE LAN with Bandwidth Management
  • Rear DisplayPort and HDMI for Multi-display Support
  • Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Anti-Sulfur Resistors Design

CPU

AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors

Chipset

AMD A520

Memory

4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules

Graphics

1 x DisplayPort, supporting a maximum resolution of 5120×2880@60 Hz
* Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
Maximum shared memory of 16 GB

Expansion Slots

1 x PCI Express x16 slot, integrated in the CPU:
Supporting PCIe 3.0 x16 mode
1 x PCI Express x1 slot, integrated in the Chipset:
Supporting PCIe 3.0 x1 mode

Storage

1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:
Supporting SATA and PCIe 3.0 x4/x2 SSDs
4 x SATA 6Gb/s connectors, integrated in the Chipset:
Supporting for RAID 0, RAID 1, and RAID 10

Ethernet

Realtek GbE LAN chip (1 Gbps/100 Mbps)

USB

CPU:
4 x USB 3.2 Gen 1 ports on the back panel
Chipset:
2 x USB 3.2 Gen 1 ports available through the internal USB header
6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

Audio

Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

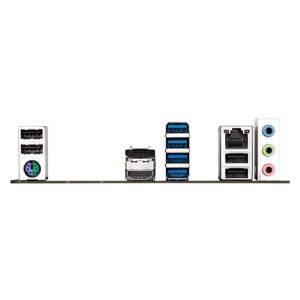

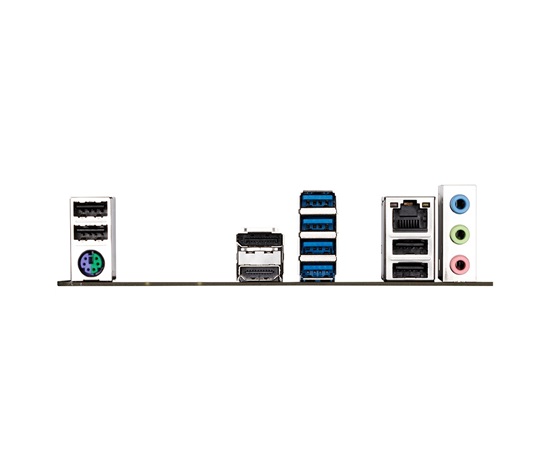

Back Panel I/O Ports

1 x PS/2 keyboard/mouse port
1 x DisplayPort
1 x HDMI port
4 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks

Internal I/O Connectors

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
1 x Clear CMOS jumper

I/O Controller

iTE I/O Controller Chip

H/W Monitoring

Voltage detection
Temperature detection
Fan speed detection
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.

BIOS

1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
EasyTune
Smart Backup
System Information Viewer
Support for Q-Flash
Support for Xpress Install

Bundled Software

Norton Internet Security (OEM version)
LAN bandwidth management software

Operating System

Support for Windows 11 64-bit
Support for Windows 10 64-bit

Form Factor

Micro ATX Form Factor; 24.4cm x 24.4cm

    Technické parametry

  • Formát základní desky: micro ATX
  • Chipset: AMD A520
  • Socket (patice): Socket AM4
  • Pro procesory: amd
  • Technologie paměti RAM: ddr4
  • Počet paměťových slotů: 4
  • M.2 slot: 1
  • SATA 3: 4
  • Podpora RAID: 10
  • PCI Express x16: 1
  • PCI Express x8: 0
  • PCI Express x1: 1
  • PCI: 0
  • LAN: 1Gbit/s
  • Bezdrátové připojení: bez
  • DisplayPort: 1
  • HDMI: 1
  • VGA: 0
  • DVI: 0
  • DisplayPort Type-C: 0
  • Počet Thunderbolt: 0
  • USB 2: 6
  • USB 3: 6
  • USB C: 0
  • 3.5mm Jack: ano
  • TPM: ano
  • COM port: ne
  • LPT port: ne
  • Led Header: ne

Další informace

Hmotnost 0,809 kg
Rozměry 27 × 6 × 27 cm

Logistic data

Typ balení Délka (cm) Šířka (cm) Výška (cm) Hmotnost (kg) Počet kusů v balení
Kusové 27 6 27 0.809 1
Krabice 58 29 29 8.89 10
Technické specifikace se mohou změnit bez předchozího upozornění. Obsah aktuálního balení se může lišit i v závislosti na datu prodeje. Obrázky mají pouze informativní charakter.
