BAZAR – ASUS MB Tinker Board 2S/2G/16G, RK3399, 2GB DDR4, VGA, 16GB eMMC, Micro SD(TF), 1xHDMI, 3xUSB, bez příslušenství

Socket (patice):Integrovaný procesor; Technologie paměti RAM:DDR4; Podpora RAID:Bez RAID podpory; Další rozhraní:S/PDIF, M.2

Vaše cena vč. DPH

1 896 Kč s DPH

Dostupnost: Není skladem

Kategorie: , , Značka: Asus EAN: 1887160
Array ( [pa_status] => Array ( [name] => pa_status [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_brand] => Array ( [name] => pa_brand [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_socket-patice] => Array ( [name] => pa_socket-patice [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_technologie-pameti-ram] => Array ( [name] => pa_technologie-pameti-ram [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_podpora-raid] => Array ( [name] => pa_podpora-raid [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_884] => Array ( [name] => pa_884 [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) )
Array ( [pa_status] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 10 [name] => pa_status [options] => Array ( [0] => 6087 ) [position] => 0 [visible] => [variation] => ) ) [pa_brand] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 11 [name] => pa_brand [options] => Array ( [0] => 6176 ) [position] => 0 [visible] => [variation] => ) ) [pa_socket-patice] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 677 [name] => pa_socket-patice [options] => Array ( [0] => 13119 ) [position] => 0 [visible] => [variation] => ) ) [pa_technologie-pameti-ram] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 165 [name] => pa_technologie-pameti-ram [options] => Array ( [0] => 7069 ) [position] => 0 [visible] => [variation] => ) ) [pa_podpora-raid] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 681 [name] => pa_podpora-raid [options] => Array ( [0] => 12861 ) [position] => 0 [visible] => [variation] => ) ) [pa_884] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 705 [name] => pa_884 [options] => Array ( [0] => 13207 ) [position] => 0 [visible] => [variation] => ) ) )
Rychlé doručení - vše skladem
Při objednání ve všední den do 16 hodin doručujeme druhý den.Více info
Doručení DPD, PPL na vámi zadanou adresu. V den dodání budete informování o doručení formou emailu a SMS zprávou ( je možné dodatečně změnit termín i místo dodání).

Popis

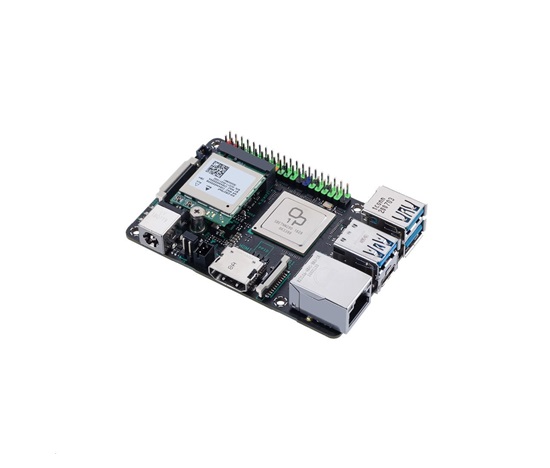

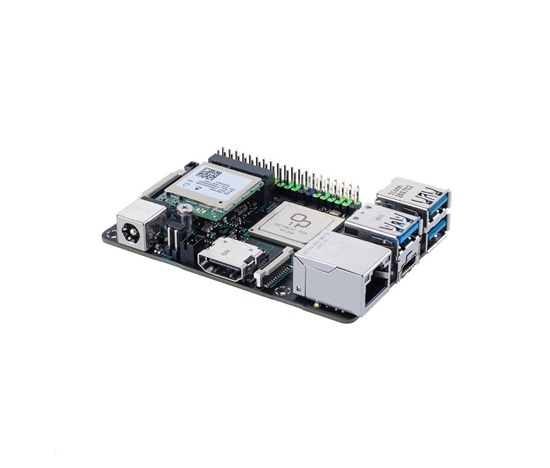

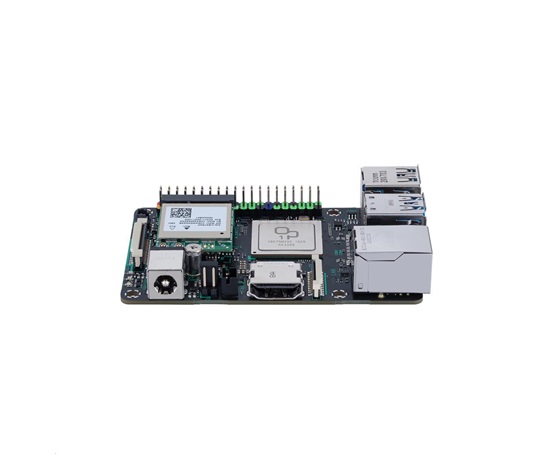

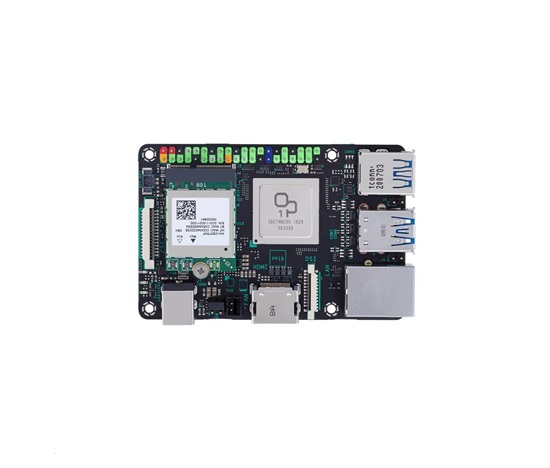

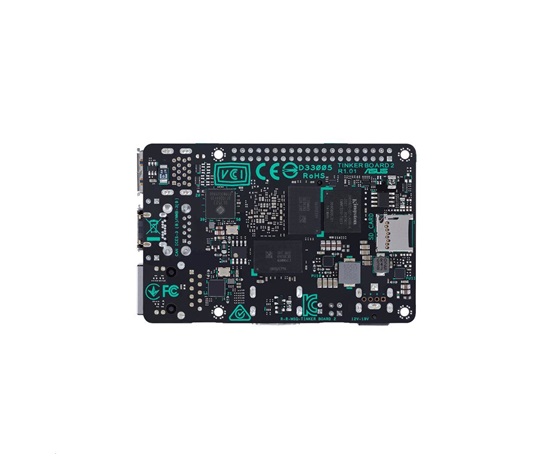

Tinker Board 2S

An Arm-based Single Board Computer (SBC), uses Arm big.LITTLE™ technology’s 64-bits processor, offers enhanced computing performance with low power consumption.

  • Outstanding performance for IoT devices: Powered by 6-core Rockchip RK3399 system on a chip (SoC) with the new 64-bit Armv8 architecture, plus multi-core Mali-T860.
  • Easy setup tool:Intuitive software for performance tweaking, with simple three-step initial configuration.
  • Pro-grade admin: ASUS IoT Cloud Console for data management and analysis, plus support for firmware over-the-air (FOTA) roll-out.
  • Android 10 support: Benefit from better 3D computing performance, support for the Android Neural Networks API 1.2 and Adiantum encryption with 5X-better efficiency.

TECHNICAL SPECIFICATIONS

SoC Rockchip RK3399
CPU Dual-core Arm Cortex-A72 @ 2.0 GHz
Quad-core Arm Cortex-A53 @ 1.5 GHz
Memory Size Dual-CH LPDDR4 2GB
GPU Arm Mali™-T860 MP4 GPU @ 800 MHz
Display 1 x HDMI™ with CEC hardware ready
1 x USB Type-C (DP Alt Mode)
1 x 22-pin MIPI DSI (4 lane)
Storage 16GB eMMC
Micro SD(TF) card slot (push/pull)
Connectivity 1 x RTL8211F-CG GbE LAN
1 x M.2 – 802.11 a/b/g/n/ac wireless & BT 5.0 (2T2R)
Power Connector (up to 65W) 1 x 12~19V DC Power Input Jack (5.5/2.5 mm)
Audio 1 x HDMI™ audio output
1 x S/PDIF TX pin (from GPIO)
1 x PCM/I2S pins (from GPIO)
USB Ports 3 x USB 3.2 Gen1 Type-A ports
1 x USB 3.2 Gen1 Type-C OTG port
Camera Interface 1 x 15-pin MIPI CSI-2 (2 lane)
Internal Headers 1 x 40-pin headers includes:
– up to 28 x GPIO pins
– up to 2 x SPI bus
– up to 2 x I2C bus
– up to 2 x UART
– up to 3 x PWM
– up to 1 x PCM/I2S
– up to 1 x S/PDIF TX
– 2 x 5V power pins
– 2 x 3.3V power pins
– 8 x ground pins
1 x 2-pin Recovery header
1 x 2-pin Power-on header
1 x 2-pin Reset header
1 x 2-pin Debug UART header
1 x 2-pin DC Fan header
1 x 2-pin RTC Battery header
OS Support Debian 9 / Android 10
Dimensions 3.37 inch x 2.125 inch (85 x 56 mm)
Environment Operation temperature: 0? ~ 60?
Non operation temperature: -40? ~ 85?
Non operation humidity: 0% ~ 85% (Non condensing)

Další informace

Hmotnost 0,163 kg
Rozměry 40 × 30 × 6 cm

Logistic data

Typ balení Délka (cm) Šířka (cm) Výška (cm) Hmotnost (kg) Počet kusů v balení
Kusové 40 30 6 0.163 1
Technické specifikace se mohou změnit bez předchozího upozornění. Obsah aktuálního balení se může lišit i v závislosti na datu prodeje. Obrázky mají pouze informativní charakter.
