BAZAR – ASUS MB Sc LGA1151 EX-B250-V7 MINING, Intel B250, 4xDDR4, 1xHDMI – Po opravě (Bez příslušenství)

Socket (patice):Socket 1151; Chipset:Intel; Technologie paměti RAM:DDR4; Formát základní desky:ATX; Podpora RAID:Bez RAID podpory; PCI Express x16:1; Integrovaná LAN karta:1; Integrovaná grafická karta:Ano (CPU)

Vaše cena vč. DPH

1 191 Kč s DPH

Dostupnost: Není skladem

Kategorie: , , Značka: Asus EAN: 1887040
Array ( [pa_brand] => Array ( [name] => pa_brand [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_socket-patice] => Array ( [name] => pa_socket-patice [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_chipset] => Array ( [name] => pa_chipset [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_technologie-pameti-ram] => Array ( [name] => pa_technologie-pameti-ram [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_format-zakladni-desky] => Array ( [name] => pa_format-zakladni-desky [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_podpora-raid] => Array ( [name] => pa_podpora-raid [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_pci-express-x16] => Array ( [name] => pa_pci-express-x16 [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_48] => Array ( [name] => pa_48 [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_54] => Array ( [name] => pa_54 [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) )
Array ( [pa_brand] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 11 [name] => pa_brand [options] => Array ( [0] => 6176 ) [position] => 0 [visible] => [variation] => ) ) [pa_socket-patice] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 677 [name] => pa_socket-patice [options] => Array ( [0] => 13698 ) [position] => 0 [visible] => [variation] => ) ) [pa_chipset] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 678 [name] => pa_chipset [options] => Array ( [0] => 8035 ) [position] => 0 [visible] => [variation] => ) ) [pa_technologie-pameti-ram] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 165 [name] => pa_technologie-pameti-ram [options] => Array ( [0] => 7069 ) [position] => 0 [visible] => [variation] => ) ) [pa_format-zakladni-desky] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 680 [name] => pa_format-zakladni-desky [options] => Array ( [0] => 7856 ) [position] => 0 [visible] => [variation] => ) ) [pa_podpora-raid] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 681 [name] => pa_podpora-raid [options] => Array ( [0] => 12861 ) [position] => 0 [visible] => [variation] => ) ) [pa_pci-express-x16] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 684 [name] => pa_pci-express-x16 [options] => Array ( [0] => 7979 ) [position] => 0 [visible] => [variation] => ) ) [pa_48] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 703 [name] => pa_48 [options] => Array ( [0] => 12862 ) [position] => 0 [visible] => [variation] => ) ) [pa_54] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 704 [name] => pa_54 [options] => Array ( [0] => 7879 ) [position] => 0 [visible] => [variation] => ) ) )
Rychlé doručení - vše skladem
Při objednání ve všední den do 16 hodin doručujeme druhý den.Více info
Doručení DPD, PPL na vámi zadanou adresu. V den dodání budete informování o doručení formou emailu a SMS zprávou ( je možné dodatečně změnit termín i místo dodání).

Popis

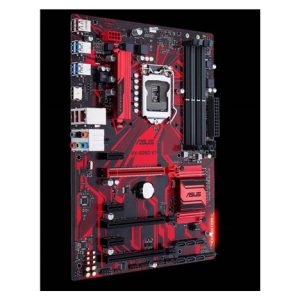

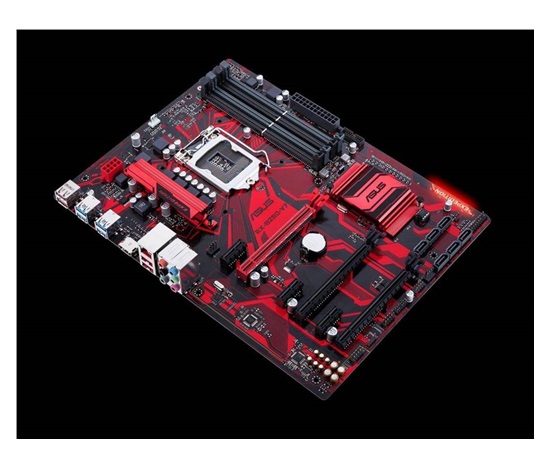

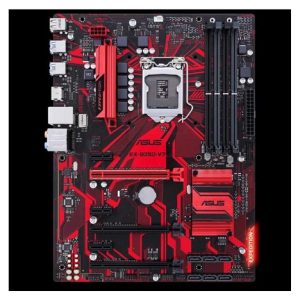

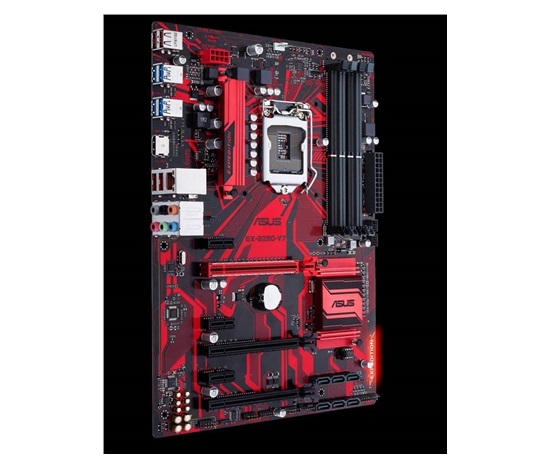

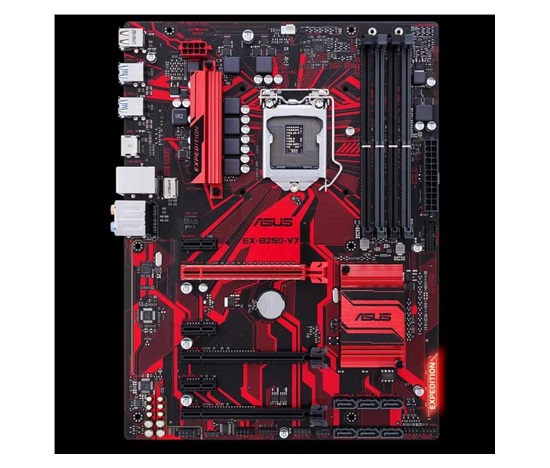

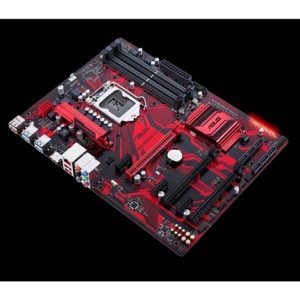

Intel LGA-1151 ATX motherboard with anti-moisture coating, USB & LAN Guard, SafeSlot & gold-plated design, DDR4 2400MHz, HDMI, SATA 6Gb/s, USB 3.0

  • Non-stop action: The best choice for iCafés, built-to-order gaming systems and quality-driven businesses.
  • Non-stop durability: Unbeatable features including anti-moisture coating, gold-plated PCIe x16 and LAN design, USB Guard, plus 5X Protection III.
  • Non-stop gaming: Epic audio experiences
  • Non-stop challenger: ASUS iCafe LAB-certified reboot- and compatibility-tested for diskless-system use, top games and 100+ peripherals, 1000+ CPUs, memory modules, graphics cards, and more.

TECHNICAL SPECIFICATIONS

CPU Intel Socket 1151 for 7th/6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium/Celeron Processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0
* The Intel Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list
Chipset Intel B250
Memory 4 x DIMM, Max. 64GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
* Due to Intel chipset limitation, DDR4 2400MHz memory frequency is only supported by 7th Generation Intel processors. Higher memory modules will run at the maximum transfer rate of DDR4 2400MHz.
** Due to Intel chipset limitation, DDR4 2133MHz and higher memory modules on 6th Generation Intel processors will run at the maximum transfer rate of DDR4 2133MHz.
Graphic Integrated Graphics Processor- Intel HD Graphics support
– Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
Maximum shared memory of 1024 MB
Multi-GPU Support Supports AMD 2-Way CrossFireX Technology
Expansion Slots 1 x PCIe 3.0/2.0 x16 (x16 mode, red)
2 x PCIe 3.0/2.0 x16 (x4 mode, black)
3 x PCIe 3.0/2.0 x1
Storage Intel B250 Chipset:
6 x SATA 6Gb/s port(s)
LAN Intel I219V, 1 x Gigabit LAN Controller(s)
ASUS LAN Guard
Dual interconnect between the integrated Media Access Controller (MAC) and physical layer (PHY)
Audio Realtek ALC887 8-Channel High Definition Audio CODEC
USB Ports Intel B250 Chipset:
6 x USB 3.1 Gen 1 port(s) (4 at back panel, blue, 2 at mid-board)
Intel B250 Chipset:
6 x USB 2.0/1.1 port(s) (4 at back panel, , 4 at mid-board)
Special Features ASUS 5X Protection III:
– ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
– ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
– ASUS Overvoltage Protection: World-class circuit-protecting power design
– ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
– ASUS DIGI+ VRM: 4 Phase digital power design
Non-stop Durability:
– Anti-moisture coating – Outstanding protection against moisture and corrosion
– USBGuard- 120% higher voltage tolerance
– Anti-theft memory – Locked-down memory for everyday security
Non-stop Gaming:
– Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
– Audio amplifier: Provides the highest-quality sound for headphone and speakers
– Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
– Unique de-pop circuit: Reduces start-up popping noise to audio outputs
– Top notch audio sensation delivers according to the audio configuration Separate layer for left and right track, ensuring both sound deliver equal quality
Non-stop Challenger:
– ASUS iCafe Labs Certified – Top games and 100+ peripherals tested
ASUS Exclusive Features:
– AI Suite 3
– Ai Charger
– ESD Guards
ASUS Quiet Thermal Solution:
– Stylish Fanless Design Heat-sink solution & MOS Heatsink
– ASUS Fan Xpert 2+
ASUS EZ DIY:
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
ASUS Q-Desig:
– ASUS Q-Slot

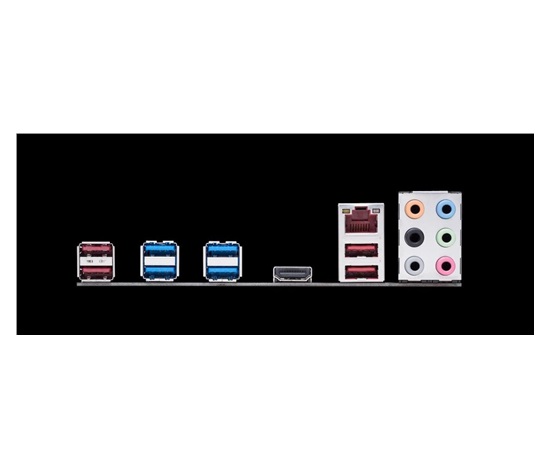

Back I/O Ports 1 x HDMI
1 x LAN (RJ45) port(s)
4 x USB 3.1 Gen 1 Type-A
4 x USB 2.0
6 x Audio jack(s)
Internal I/O Ports 1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x TPM header
1 x COM port(s) connector(s)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x Chassis Fan connector(s) (1 x 4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x W_Pump+ Header
Accessories User’s manual
I/O Shield
1 x Supporting DVD
BIOS 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, SM BIOS 3.0, ACPI 6.0, ASUS EZ Flash 3, CrashFree BIOS 3, F12 I café super mode
Support Disc Drivers
ASUS Utilities
ASUS EZ Update
Manageability DMI 3.0, WOL by PME
Operating System Windows 10 64-bit
Windows 8.1 64-bit *1
Windows 7 32-bit *1
Windows 7 64-bit *1
Form Factor ATX Form Factor
12 x 9 inch (30.48 x 22.86 cm)
Note *1 Windows 8.1 64-bit and Windows 7 32 / 64-bit are only supported when using 6th Generation Intel Processors

Další informace

Hmotnost 0,864 kg
Rozměry 29,6 × 39 × 6,2 cm
Technické specifikace se mohou změnit bez předchozího upozornění. Obsah aktuálního balení se může lišit i v závislosti na datu prodeje. Obrázky mají pouze informativní charakter.
