Popis

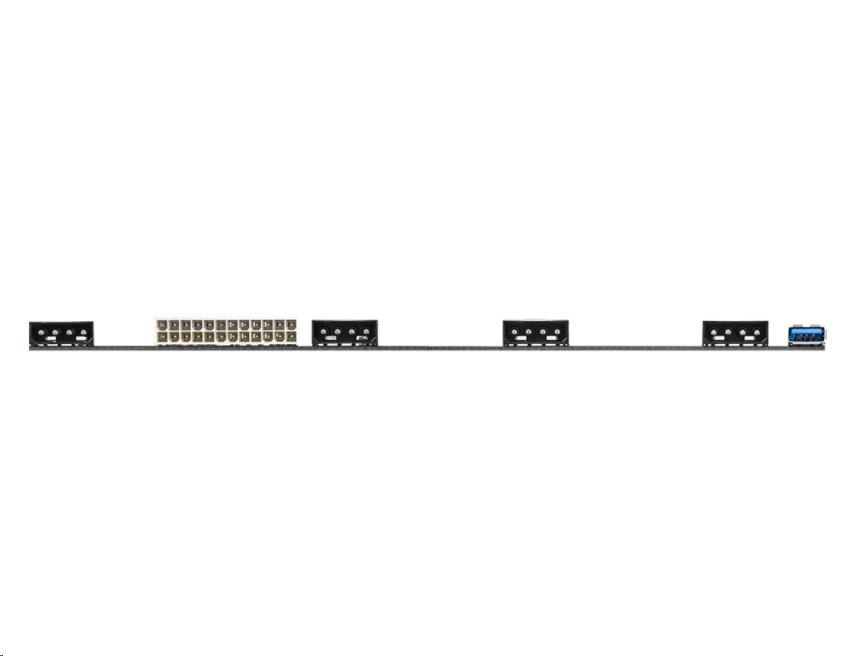

H510 PRO BTC+
- Supports 10th Gen Intel Core™ Processors and 11th Gen Intel Core™ Processors
- Supports DDR4 3200MHz
- Graphics Output: HDMI
- 6 PCIe 3.0 x16, 1 Mining Port (M_Port1 at x1)
- 1 SATA3, 1 M.2 (SATA3)
- 2 Rear USB 3.1 Gen1 Type-A
- 4 USB 2.0 Type-A (2 Rear, 2 Front)
- Intel Gigabit LAN
- 2 Extra 24-pin ATX Power Connector
- Onboard Power On / Reset Button
- Fully Independent Power Rail
TECHNICAL SPECIFICATIONS
| Platform | – 20.1-in x 8.8-in, 50.1 cm x 22.4 cm – Solid Capacitor design |
| Unique Feature | ASRock Super Alloy – Premium 50A Power Choke – Sapphire Black PCB – High Density Glass Fabric PCB ASRock Steel Slot ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop |
| CPU | – Supports 10th Gen Intel CoreTM Processors and 11th Gen Intel CoreTM Processors (LGA1200) – Digi Power design – 4 Power Phase design – Supports Intel Turbo Boost Max 3.0 Technology |
| Chipset | – Intel H510 |
| Memory | – 1 x DDR4 DIMM Slot * 2GB DRAM per module is not supported. – Supports DDR4 3200/2933/2800/2666/2400/2133 non-ECC, un-buffered memory * 11th Gen Intel CoreTM (i9/i7/i5) support DDR4 up to 3200; CoreTM (i3), Pentium and Celeron support DDR4 up to 2666. * 10th Gen Intel CoreTM (i9/i7) support DDR4 up to 2933; CoreTM (i5/i3), Pentium and Celeron support DDR4 up to 2666. * Please refer to Memory Support List on ASRock’s website for more information. (http://www.asrock.com/) – Supports ECC UDIMM memory modules (operate in non-ECC mode) – Max. capacity of system memory: 32GB – Supports Intel Extreme Memory Profile (XMP) 2.0 |
| Expansion Slot | – 6 x PCI Express 3.0 x16 Slots (PCIE1 at x16 / PCIE2~6 at x1) – 1 x Mining Port (M_Port1 at x1)* * Support USB Type Riser kit |
| Graphics | * Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. – 11th Gen Intel CoreTM Processors support Intel Xe Graphics Architecture (Gen 12). 10th Gen Intel CoreTM Processors support Gen 9 Graphics – Graphics, Media & Compute: Microsoft DirectX 12, OpenGL 4.5, Intel Built In Visuals, Intel Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1 – Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft PlayReady 3.0, UHD/HDR Blu-ray Disc – Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096×2160) @ 30Hz – Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required) – Supports HDCP 2.3 with and HDMI 1.4 Port |
| LAN | – Gigabit LAN 10/100/1000 Mb/s – Giga PHY Intel I219V – Supports Wake-On-LAN – Supports Lightning/ESD Protection – Supports Energy Efficient Ethernet 802.3az – Supports PXE |
| Rear Panel I/O | – 1 x PS/2 Mouse/Keyboard Port – 1 x HDMI Port – 2 x USB 2.0 Ports (Supports ESD Protection) – 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) – 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) |
| Storage | – 1 x SATA3 6.0 Gb/s Connector, supports NCQ, AHCI and Hot Plug – 1 x M.2 Socket, supports M Key type 2260/2280/22110 M.2 SATA3 6.0 Gb/s module |
| Connector | – 1 x System Panel Header – 1 x SPI TPM Header – 1 x Power LED and Speaker Header – 1 x CPU Fan Connector (4-pin) * The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. – 8 x Chassis Fan Connectors (4-pin) * CHA_FAN3~CHA_FAN8 supports the chassis fan of maximum 2.5A (30W) fan power. * CPU_FAN1, CHA_FAN1 and CHA_FAN2 can adjust 4-pin fan speed. – 3 x 24 pin ATX Power Connectors – 1 x 8 pin PCIe 12V Power Connector – 4 x 4 pin PCIe Power Connectors – 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) – 1 x Power Button – 1 x Reset Button |
| BIOS Feature | – 128Mb AMI UEFI Legal BIOS with multilingual GUI support – ACPI 6.0 Compliant wake up events – SMBIOS 2.7 Support – CPU Core/Cache, CPU GT, VCCSA, DRAM, VCCIO, VCCIN AUX Voltage Multi-adjustment |
| Support CD | – Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar |
| UEFI | – ASRock Instant Flash – ASRock Internet Flash |
| Hardware Monitor | – Fan Tachometer: CPU, Chassis Fans – Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis Fans – Fan Multi-Speed Control: CPU, Chassis Fans – Voltage monitoring: CPU Vcore, +12V, +5V, +3.3V |
| OS | – Microsoft Windows 10 64-bit – Linux: Ubuntu 16.04 LTS / Fedora 25 * Linux O/S basic function support only, due to the compatibility of the Liunx system itself, there is no guarantee that all functions are supported. |
| Certifications | – FCC, CE – ErP/EuP ready (ErP/EuP ready power supply is required) |
| Accessories | – Quick Installation Guide, Support CD – 1 x SATA Data Cable – 1 x Screw for M.2 Socket |
