Popis
ROG Thor 1000W Platinum II EVA Edition
It’s 2022. The Republic of Gamers is launching new equipment for the EVANGELION project. The ROG Thor II platinum EVA edition wears an EVA-inspired skin and wields component and cooling upgrades that enable the lowest noise levels – even during the most demanding skirmishes with the opposition.
Dimensions
190 x 150 x 86 mm
Efficiency
80Plus Platinum
Protection Features
OPP/OVP/UVP/SCP/OCP/OTP
Hazardous Materials
ROHS
AC Input Range
100-240Vac
Thermal Features
ROG Thermal Solution
DC Output Voltage
+3.3V +5V +12V -12V +5Vsb
Maximum Load
25A 25A 83A 0.3A 3A
Combined Load
125W 125W 996W 3.6W 15W
Total Output
1000W
Connectors
MB 24/20-pin x 1
CPU 4+4-pin x 2
PCI-E 6+2-pin x 8
SATA x 12
Peripheral x 6

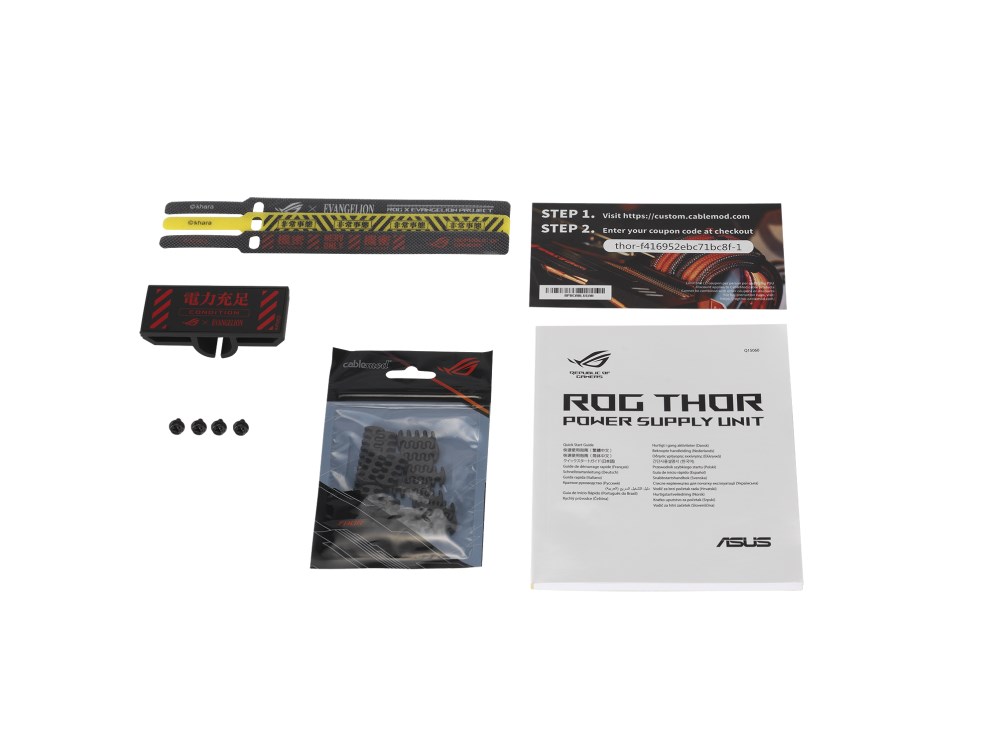

Package Contents
Power Cord x 1
Motherboard Power Cable x 1
CPU Cable x 2
PCI-E Cable 1-to-1 x 4
PCI-E Cable 1-to-2 x 2
SATA Cable 1-to-4 x 3
Peripheral 1-to-3 x 2
Addressable RGB Cable x 1
ROG x EVA Accessory x 1
ROG x EVA Cable Tie x 3
Cable Combs (6-pin) x 4
Cable Combs (8-pin) x 10
Cable Combs (24-pin) x 2
Chassis Screws Package x 1
User Manual x 1
Weight
2.35 KG
AURA SYNC
ARGB
0dB Fan Button
Yes
