ASRock MB Sc AM4 A520M-HVS, AMD A520M, 2xDDR4, HDMI

Formát základní desky:micro ATX; Chipset:AMD A520, AMD; Socket (patice):Socket AM4; Pro procesory:AMD; Technologie paměti RAM:DDR4; Počet paměťových slotů:2; M.2 slot:1; SATA 3:6; Podpora RAID:1, 10; PCI Express x16:2; PCI Express x1:2; PCI:0; LAN:1Gbit/s; Bezdrátové připojení:bez; DisplayPort:0; HDMI:1; VGA:1; DVI:0; USB 2:6; USB 3:6; USB C:0; COM port

Vaše cena vč. DPH

1 331 Kč s DPH

Dostupnost: Není skladem

Kategorie: , , Značka: ASRock EAN: 4710483932311 Záruka: 36 Měsíc(ů)
Array ( [pa_brand] => Array ( [name] => pa_brand [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_status] => Array ( [name] => pa_status [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 0 ) [pa_format-zakladni-desky] => Array ( [name] => pa_format-zakladni-desky [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_chipset] => Array ( [name] => pa_chipset [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_socket-patice] => Array ( [name] => pa_socket-patice [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_pro-procesory] => Array ( [name] => pa_pro-procesory [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_technologie-pameti-ram] => Array ( [name] => pa_technologie-pameti-ram [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_pocet-pametovych-slotu] => Array ( [name] => pa_pocet-pametovych-slotu [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_m-2-slot] => Array ( [name] => pa_m-2-slot [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_sata-3] => Array ( [name] => pa_sata-3 [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_podpora-raid] => Array ( [name] => pa_podpora-raid [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_pci-express-x16] => Array ( [name] => pa_pci-express-x16 [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_pci-express-x1] => Array ( [name] => pa_pci-express-x1 [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_pci] => Array ( [name] => pa_pci [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_lan] => Array ( [name] => pa_lan [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_bezdratove-pripojeni] => Array ( [name] => pa_bezdratove-pripojeni [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_displayport] => Array ( [name] => pa_displayport [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_hdmi] => Array ( [name] => pa_hdmi [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_vga] => Array ( [name] => pa_vga [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_dvi] => Array ( [name] => pa_dvi [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_usb-2] => Array ( [name] => pa_usb-2 [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_usb-3] => Array ( [name] => pa_usb-3 [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_usb-c] => Array ( [name] => pa_usb-c [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_3-5mm-jack] => Array ( [name] => pa_3-5mm-jack [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_tpm] => Array ( [name] => pa_tpm [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_com-port] => Array ( [name] => pa_com-port [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_lpt-port] => Array ( [name] => pa_lpt-port [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) [pa_led-header] => Array ( [name] => pa_led-header [value] => [position] => 0 [is_visible] => 0 [is_variation] => 0 [is_taxonomy] => 1 ) )
Array ( [pa_brand] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 11 [name] => pa_brand [options] => Array ( [0] => 6276 ) [position] => 0 [visible] => [variation] => ) ) [pa_status] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 0 [name] => pa_status [options] => Array ( ) [position] => 0 [visible] => [variation] => ) ) [pa_format-zakladni-desky] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 680 [name] => pa_format-zakladni-desky [options] => Array ( [0] => 12851 ) [position] => 0 [visible] => [variation] => ) ) [pa_chipset] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 678 [name] => pa_chipset [options] => Array ( [0] => 7854 ) [position] => 0 [visible] => [variation] => ) ) [pa_socket-patice] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 677 [name] => pa_socket-patice [options] => Array ( [0] => 12849 ) [position] => 0 [visible] => [variation] => ) ) [pa_pro-procesory] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 676 [name] => pa_pro-procesory [options] => Array ( [0] => 7852 ) [position] => 0 [visible] => [variation] => ) ) [pa_technologie-pameti-ram] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 165 [name] => pa_technologie-pameti-ram [options] => Array ( [0] => 7069 ) [position] => 0 [visible] => [variation] => ) ) [pa_pocet-pametovych-slotu] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 679 [name] => pa_pocet-pametovych-slotu [options] => Array ( [0] => 7977 ) [position] => 0 [visible] => [variation] => ) ) [pa_m-2-slot] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 691 [name] => pa_m-2-slot [options] => Array ( [0] => 7866 ) [position] => 0 [visible] => [variation] => ) ) [pa_sata-3] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 689 [name] => pa_sata-3 [options] => Array ( [0] => 7864 ) [position] => 0 [visible] => [variation] => ) ) [pa_podpora-raid] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 681 [name] => pa_podpora-raid [options] => Array ( [0] => 7858 ) [position] => 0 [visible] => [variation] => ) ) [pa_pci-express-x16] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 684 [name] => pa_pci-express-x16 [options] => Array ( [0] => 7859 ) [position] => 0 [visible] => [variation] => ) ) [pa_pci-express-x1] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 685 [name] => pa_pci-express-x1 [options] => Array ( [0] => 7980 ) [position] => 0 [visible] => [variation] => ) ) [pa_pci] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 690 [name] => pa_pci [options] => Array ( [0] => 7865 ) [position] => 0 [visible] => [variation] => ) ) [pa_lan] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 693 [name] => pa_lan [options] => Array ( [0] => 12958 ) [position] => 0 [visible] => [variation] => ) ) [pa_bezdratove-pripojeni] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 698 [name] => pa_bezdratove-pripojeni [options] => Array ( [0] => 7873 ) [position] => 0 [visible] => [variation] => ) ) [pa_displayport] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 697 [name] => pa_displayport [options] => Array ( [0] => 7872 ) [position] => 0 [visible] => [variation] => ) ) [pa_hdmi] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 696 [name] => pa_hdmi [options] => Array ( [0] => 7871 ) [position] => 0 [visible] => [variation] => ) ) [pa_vga] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 694 [name] => pa_vga [options] => Array ( [0] => 7985 ) [position] => 0 [visible] => [variation] => ) ) [pa_dvi] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 695 [name] => pa_dvi [options] => Array ( [0] => 8215 ) [position] => 0 [visible] => [variation] => ) ) [pa_usb-2] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 686 [name] => pa_usb-2 [options] => Array ( [0] => 7861 ) [position] => 0 [visible] => [variation] => ) ) [pa_usb-3] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 687 [name] => pa_usb-3 [options] => Array ( [0] => 7981 ) [position] => 0 [visible] => [variation] => ) ) [pa_usb-c] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 688 [name] => pa_usb-c [options] => Array ( [0] => 7982 ) [position] => 0 [visible] => [variation] => ) ) [pa_3-5mm-jack] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 692 [name] => pa_3-5mm-jack [options] => Array ( [0] => 7867 ) [position] => 0 [visible] => [variation] => ) ) [pa_tpm] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 702 [name] => pa_tpm [options] => Array ( [0] => 7988 ) [position] => 0 [visible] => [variation] => ) ) [pa_com-port] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 700 [name] => pa_com-port [options] => Array ( [0] => 7875 ) [position] => 0 [visible] => [variation] => ) ) [pa_lpt-port] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 701 [name] => pa_lpt-port [options] => Array ( [0] => 7876 ) [position] => 0 [visible] => [variation] => ) ) [pa_led-header] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 699 [name] => pa_led-header [options] => Array ( [0] => 7986 ) [position] => 0 [visible] => [variation] => ) ) )
Rychlé doručení - vše skladem
Při objednání ve všední den do 16 hodin doručujeme druhý den.Více info
Doručení DPD, PPL na vámi zadanou adresu. V den dodání budete informování o doručení formou emailu a SMS zprávou ( je možné dodatečně změnit termín i místo dodání).

Popis

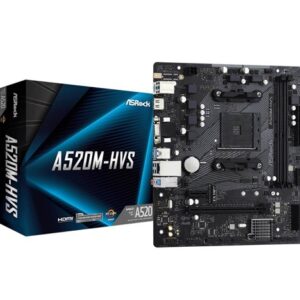

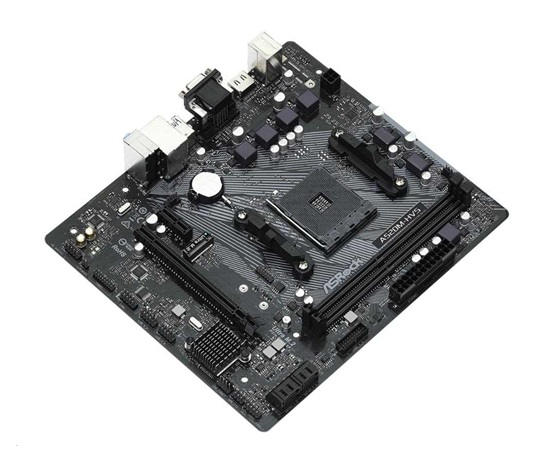

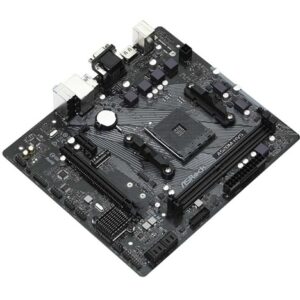

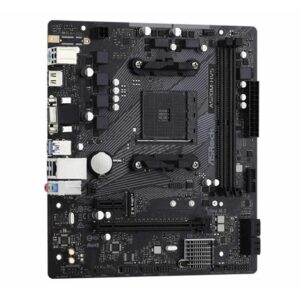

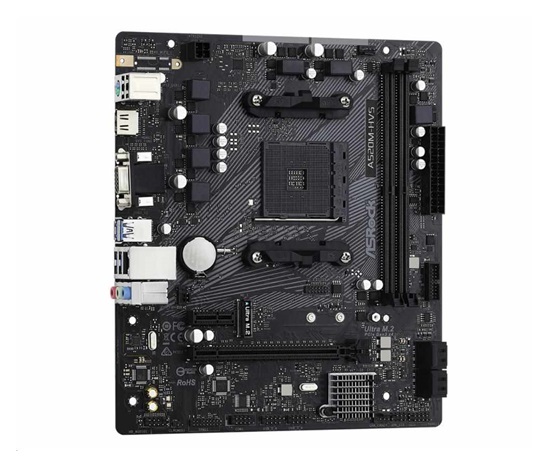

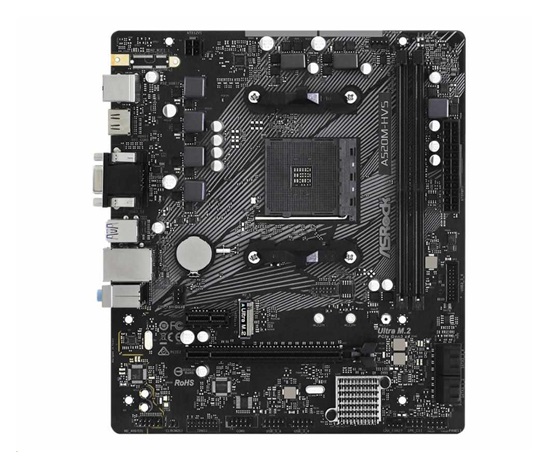

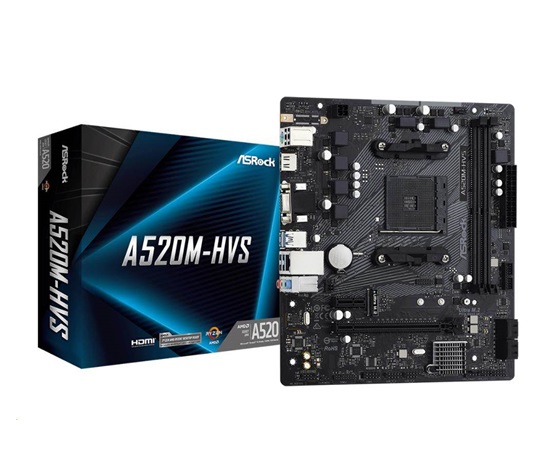

ASRock A520M-HVS

  • Supports AMD AM4 Socket Ryzen™ 3000, 4000 G-Series and 5000 and 5000 G-Series Desktop Processors
  • 6 Phase Power Design
  • Supports DDR4 4733+ (OC)
  • 1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1
  • Graphics Output Options: D-Sub, HDMI
  • 7.1 CH HD Audio (Realtek ALC887 Audio Codec)
  • 4 x SATA3, 1 x Ultra M.2(Gen3 x4 & SATA3)
  • 6 x USB 3.2 Gen1(4 x Rear, 2 x Front)
  • 6 x USB 2.0(2 x Rear, 4 x Front)

Unique Feature

ASRock Super Alloy
– Premium 50A Power Choke
– Sapphire Black PCB
– High Density Glass Fabric PCB
ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop

CPU

– Supports AMD AM4 Socket Ryzen™ 3000, 4000 G-Series and 5000 and 5000 G-Series Desktop Processors*
– 6 Power Phase design
*Not compatible with AMD Ryzen™ 5 3400G and Ryzen™ 3 3200G.

Chipset

– AMD A520

Memory

– Dual Channel DDR4 Memory Technology
– 2 x DDR4 DIMM Slots
– AMD Ryzen series CPUs (Vermeer) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
– AMD Ryzen series CPUs (Matisse) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
– AMD Ryzen series APUs (Cezanne) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
– AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
– Max. capacity of system memory: 64GB**
– Supports Extreme Memory Profile (XMP) memory modules
– 15µ Gold Contact in DIMM Slots

BIOS

– 128Mb AMI UEFI Legal BIOS with GUI support
– Supports „Plug and Play“
– ACPI 5.1 compliance wake up events
– Supports jumperfree
– SMBIOS 2.3 support
– CPU, CPU VDDCR_SOC, DRAM, VDDP Voltage Multi-adjustment

Graphics

– Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*
– DirectX 12, Pixel Shader 5.0
– Shared memory default 2GB. Max Shared memory supports up to 16GB.**
– Dual graphics output: support D-Sub and HDMI ports by independent display controllers
– Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096×2160) @ 60Hz
– Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz
– Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required)
– Supports HDR (High Dynamic Range) with HDMI 2.1
– Supports HDCP 2.3 with HDMI 2.1 Port
– Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port
– Supports Microsoft PlayReady

*Actual support may vary by CPU

**The Max shared memory 16GB requires 32GB system memory installed.

Audio

– 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)
– Supports Surge Protection

LAN

– PCIE x1 Gigabit LAN 10/100/1000 Mb/s
– Realtek RTL8111H
– Supports Wake-On-LAN
– Supports Lightning/ESD Protection
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE

Slots

– 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)*
– 1 x PCI Express 3.0 x1 Slot

Storage

CPU:
– 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes*
Chipset:
– 4 x SATA3 6.0 Gb/s Connectors

– Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

*Supports NVMe SSD as boot disks
Supports ASRock U.2 Kit

Connector

– 1 x SPI TPM Header
– 1 x COM Port Header
– 1 x Chassis Intrusion and Speaker Header
– 1 x CPU Fan Connector (4-pin)*
– 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)**
– 1 x 24 pin ATX Power Connector
– 1 x 4 pin 12V Power Connector
– 1 x Front Panel Audio Connector
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
– 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)

*The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

**The Chassis Fan supports the water cooler fan of maximum 1A (12W) fan power.
CHA_FAN2 can auto detect if 3-pin or 4-pin fan is in use.

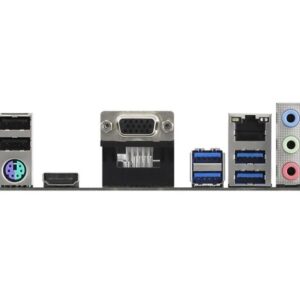

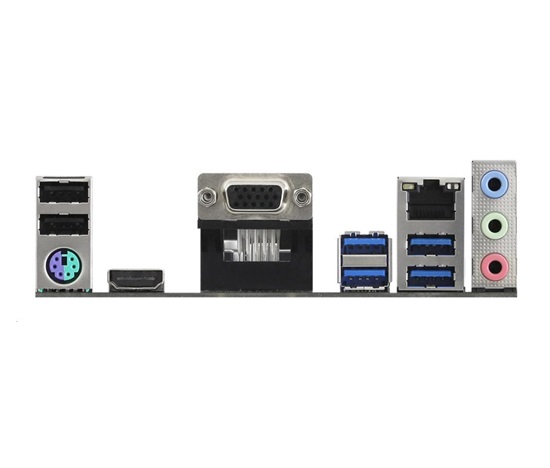

Rear Panel I/O

– 1 x PS/2 Mouse/Keyboard Port
– 1 x D-Sub Port
– 1 x HDMI Port
– 2 x USB 2.0 Ports (Supports ESD Protection)
– 4 x USB 3.2 Gen1 Ports (Supports ESD Protection)
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– HD Audio Jacks: Line in / Front Speaker / Microphone

Software and UEFI

Software
– ASRock Motherboard Utility (A-Tuning)
– ASRock XFast LAN
UEFI
– ASRock Full HD UEFI
– ASRock Instant Flash

*These utilities can be downloaded from ASRock Live Update & APP Shop.

Support CD

– Drivers, Utilities, AntiVirus Software (Trial Version)

Accessories

– Quick Installation Guide, Support CD, I/O Shield
– 2 x SATA Data Cables
– 1 x Screw for M.2 Socket

Hardware Monitor

– Temperature Sensing: CPU, Chassis
– Fan Tachometer: CPU, Chassis Fans
– Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis Fans
– Fan Multi-Speed Control: CPU, Chassis Fans
– CASE OPEN detection
– Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore

Form Factor

– Micro ATX Form Factor: 9.0-in x 7.9-in, 23.0 cm x 20.1 cm
– Solid Capacitor design

OS

– Microsoft Windows 10 64-bit / 11 64-bit

Certifications

– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)

    Technické parametry

  • Formát základní desky: micro ATX
  • Chipset: AMD
  • Socket (patice): Socket AM4
  • Pro procesory: amd
  • Technologie paměti RAM: ddr4
  • Počet paměťových slotů: 2
  • M.2 slot: 1
  • SATA 3: 6
  • Podpora RAID: 10
  • PCI Express x16: 2
  • PCI Express x1: 2
  • PCI: 0
  • LAN: 1Gbit/s
  • Bezdrátové připojení: bez
  • DisplayPort: 0
  • HDMI: 1
  • VGA: 1
  • DVI: 0
  • USB 2: 6
  • USB 3: 6
  • USB C: 0
  • 3.5mm Jack: ano
  • TPM: ano
  • COM port: ano
  • LPT port: ne
  • Led Header: ne

Další informace

Hmotnost 0,77 kg
Rozměry 25 × 27,8 × 6,2 cm

Logistic data

Typ balení Délka (cm) Šířka (cm) Výška (cm) Hmotnost (kg) Počet kusů v balení
Kusové 25 27.8 6.2 0.77 1
Krabice 62 30 51 16.94 20
Technické specifikace se mohou změnit bez předchozího upozornění. Obsah aktuálního balení se může lišit i v závislosti na datu prodeje. Obrázky mají pouze informativní charakter.
